Schneider Electric
NSYCVF85M24DPFClimaSys forced vent. IP54, 80m3/h, 24V DC, with outlet grille and filter G2
Schneider Electric NSYCW45

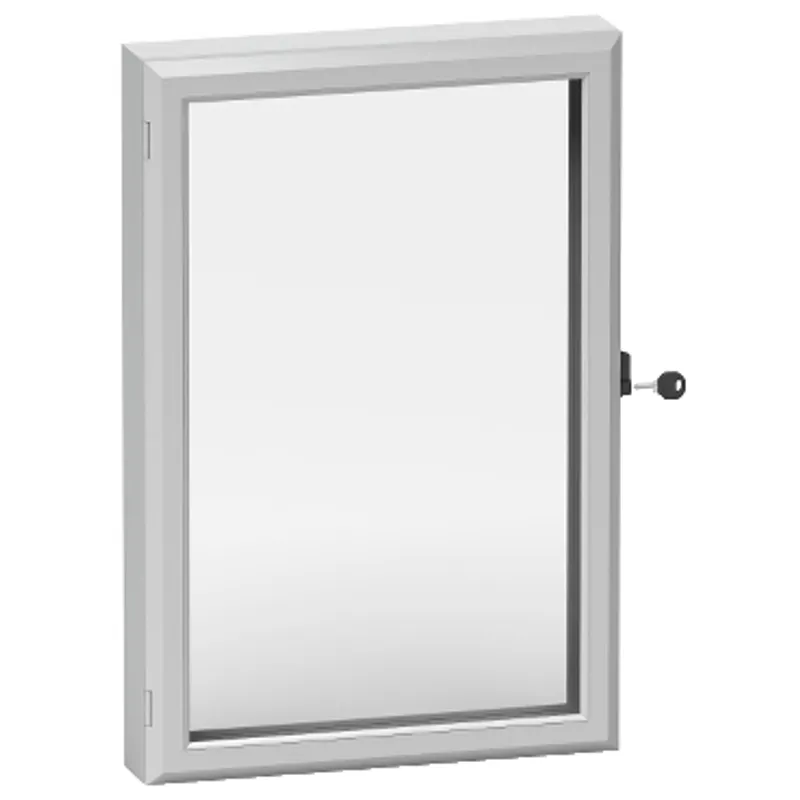

Control window with aluminum frame and 3 mm acrylic window 400 x 500 mm
- MPN
- NSYCW45
- EAN
- 3606480724527
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCW45?
Transparent acrylic and aluminium control window for installation on door or panel in PanelSeT S3D and PanelSeT CRN enclosures Opening width is 500mm, height is 400mm and depth is 77mm The kit is made up of 2 hinges, 1 lock, 1 fixings and drilling template and 1 frame with window Locked by a n° 2233X lock to prevent accidental operation of the control units by any unauthorised person Locked by a n° 2233X lock to prevent accidental operation of the control units by any unauthorised person
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Installation accessory |
| Product or component type | Window |
| For enclosure nominal dimensions | - |
| Range compatibility | PanelSeT S3D, PanelSeT CRN |
| Mounting location | Installation on door or panel |
| Device composition | 2 hinge, 1 lock, 1 fixings and drilling template, 1 frame with window |
| Material | Transparent acrylic, aluminium |
| Lock type | Closure by lock |
| Number of locks | 1 |
| Key number | 2233X |
| Height | 400 mm |
| Width | 500 mm |
| Depth | 77 mm |
| Type of installation | Indoor installation |
Packaging
| Package 1 | 1 PCE, 12.000 cm × 43.500 cm × 56.500 cm (L × W × H), 4.070 kg |
| Package 2 | 20 P12, 120.000 cm × 80.000 cm × 106.000 cm (L × W × H), 93.400 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCW45: frequently asked questions
When can NSYCW45 be shipped?
NSYCW45 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCW45 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCW45 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCW45, subject to availability and destination.
