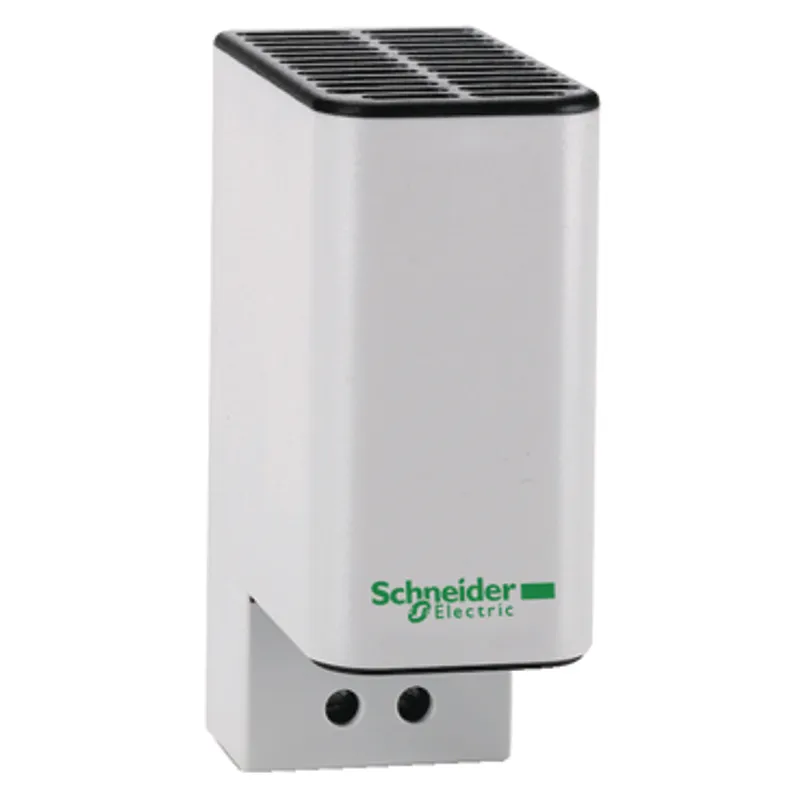

Schneider Electric NSYCR10WU1C

ClimaSys PTC heating resistance 10W, 12-24V insulate

MPN
NSYCR10WU1C
EAN
3606480152245
Category
ClimaSys CR
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCR10WU1C?

Resistance heater 10W, 12,24 V DC for ClimaSys CR Thermal Management System The product has extruded aluminium body and plastic cover Fixing by clips in vertical operating position The product width is 38mm, height is 98mm and depth is 75mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit

Specifications

Specifications

RangeClimaSys
Product nameClimaSys CR
Product or component typeResistance heater
Power range10 W
Input voltage12...24 V AC/DC 50/60 Hz
Electrical connection2 screw terminals 2.5 mm²
Operating positionVertical
Ambient air temperature for operation-40…70 °C
IP degree of protectionIP20
Electrical insulation classClass II
Product certificationsVDE
MaterialBody: extruded aluminium, Cover: plastic
HeightExternal: 98 mm
WidthExternal: 38 mm
DepthExternal : 75 mm
Condition of useAir sealed enclosure, Heaters must be installed with a thermal controller, Electrical protection is needed
fixing modeBy clips
Mounting support35 mm DIN rail

Packaging

Package 11 PCE, 11.500 cm × 8.000 cm × 4.500 cm (L × W × H), 176.000 g

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYCR10WU1C: frequently asked questions

When can NSYCR10WU1C be shipped?

NSYCR10WU1C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCR10WU1C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCR10WU1C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCR10WU1C, subject to availability and destination.
