Schneider Electric NSYCR100WU2C

ClimaSys PTC heating resistance 100W,110-250V insulate

MPN
NSYCR100WU2C
EAN
3606480152320
Category
ClimaSys CR
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

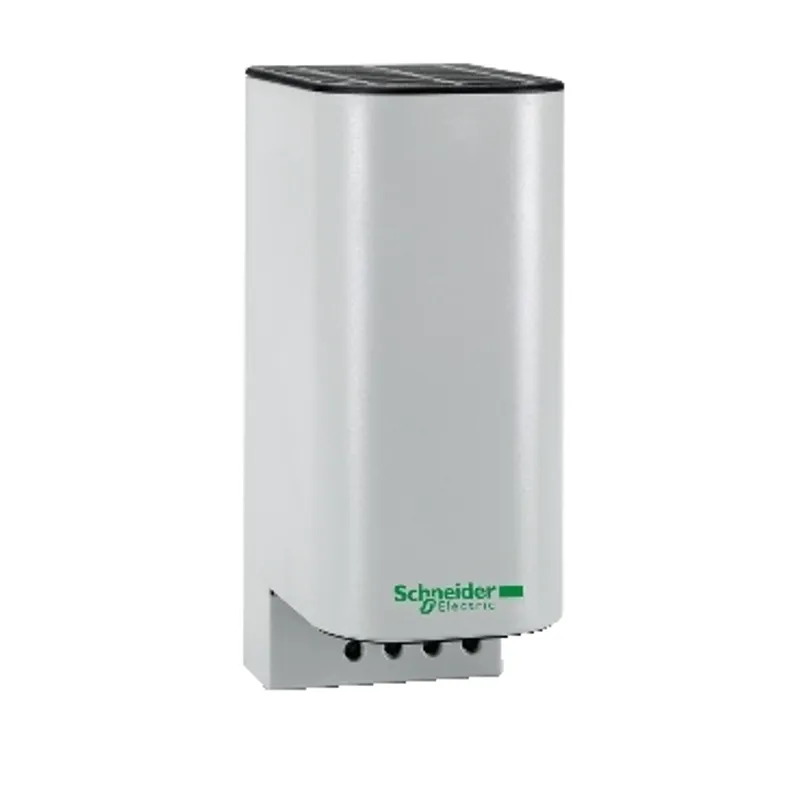

What is the Schneider Electric NSYCR100WU2C?

Resistance heater 100W, 110,250 V AC 50/60 Hz for ClimaSys CR Thermal Management System The product has extruded aluminium body and plastic cover Fixing by clips in vertical operating position The product width is 60mm, height is 150mm and depth is 90mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit

Specifications

Specifications

RangeClimaSys
Product nameClimaSys CR
Product or component typeResistance heater
Power range100 W
Input voltage120...240 V AC 50/60 Hz
Electrical connection4 screw terminals 2.5 mm²
Operating positionVertical
Ambient air temperature for operation-40…70 °C
IP degree of protectionIP20
Electrical insulation classClass II
Product certificationsUL, VDE
MaterialBody: extruded aluminium, Cover: plastic
HeightExternal: 150 mm
WidthExternal: 60 mm
DepthExternal : 90 mm
Condition of useElectrical protection is needed, Heaters must be installed with a thermal controller, Air sealed enclosure
fixing modeBy clips
Mounting support35 mm DIN rail

Packaging

Package 11 PCE, 12.000 cm × 10.000 cm × 7.000 cm (L × W × H), 356.000 g
Package 250 CAR, 60.000 cm × 40.500 cm × 28.000 cm (L × W × H), 17.800 kg
Package 3300 P12, 120.000 cm × 80.000 cm × 68.000 cm (L × W × H), 188.000 kg
