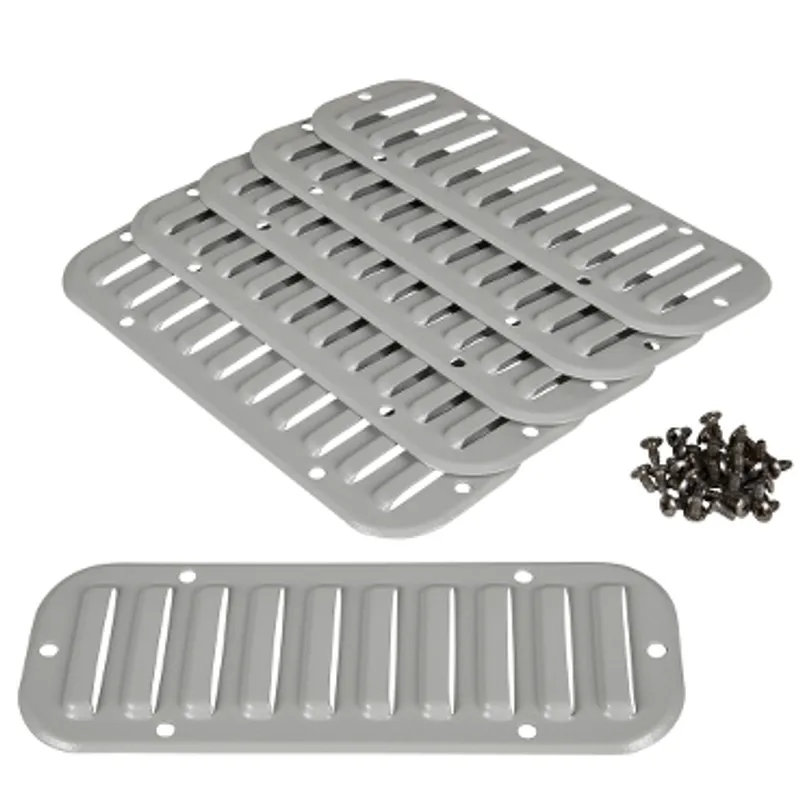

Schneider Electric NSYCAG317X120M

Metal Outlet grille - cut-out 317x120mm ext dim 345x148mm IP20

MPN
NSYCAG317X120M
EAN
3606480151798
Category
ClimaSys CA
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCAG317X120M?

Metal louvre plate 148 x 345mm made from steel for enclosures The kit is made of 1 fixing elements and 1 metal louvre The external width is 148mm Ingress protection rating (according to IEC 60529) is IP20 Fixing by screws on sides of enclosure Cut-out dimensions is 317 x 91mm Painted in grey (RAL 7035)

Specifications

Specifications

RangeClimaSys
ProductClimaSys CA
Product or component typeMetal louvre plate
Accessory / separate part categoryThermal management accessory
Accessory / separate part destinationClimaSys ventilation system
Mounting locationSides of enclosure
fixing modeBy screws
Device composition1 fixing elements, 1 metal louvre
MaterialSteel
ColourGrey (RAL 7035)
Surface finishEpoxy-polyester powder
Cut-out dimensions317 x 91 mm
HeightExternal: 345 mm
WidthExternal: 148 mm
IP degree of protectionIP20

Packaging

Package 11 PCE, 34.500 cm × 14.800 cm × 1.000 cm (L × W × H), 424.000 g

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYCAG317X120M: frequently asked questions

When can NSYCAG317X120M be shipped?

NSYCAG317X120M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCAG317X120M in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCAG317X120M and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCAG317X120M, subject to availability and destination.
