Schneider Electric NSYCAG38LP
Airing grille cut-out diameter 38mm IP45
- MPN
- NSYCAG38LP
- EAN
- 3606480151897
- Category
- ClimaSys CA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCAG38LP?

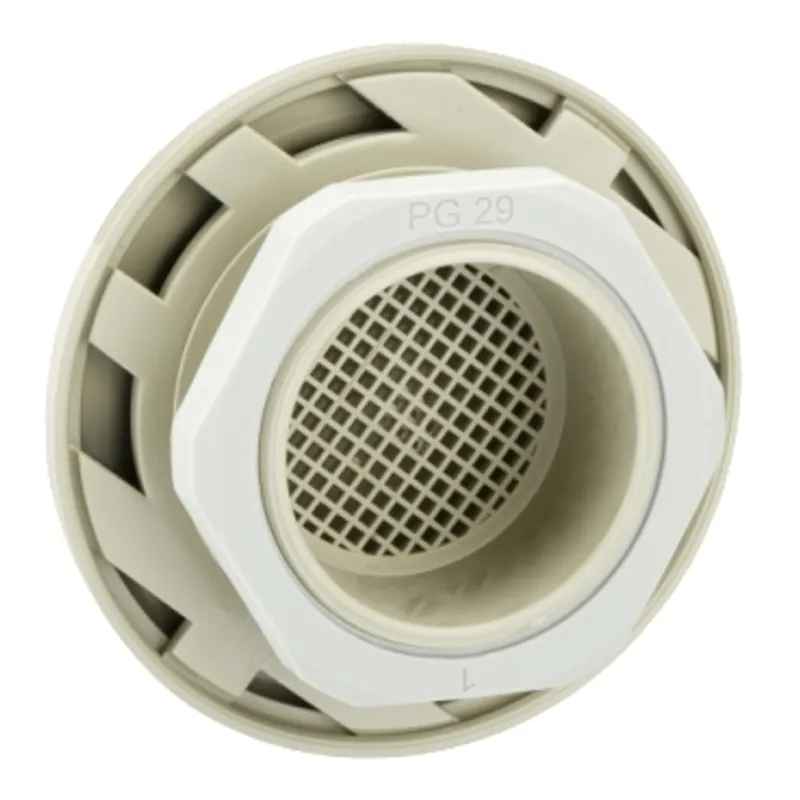

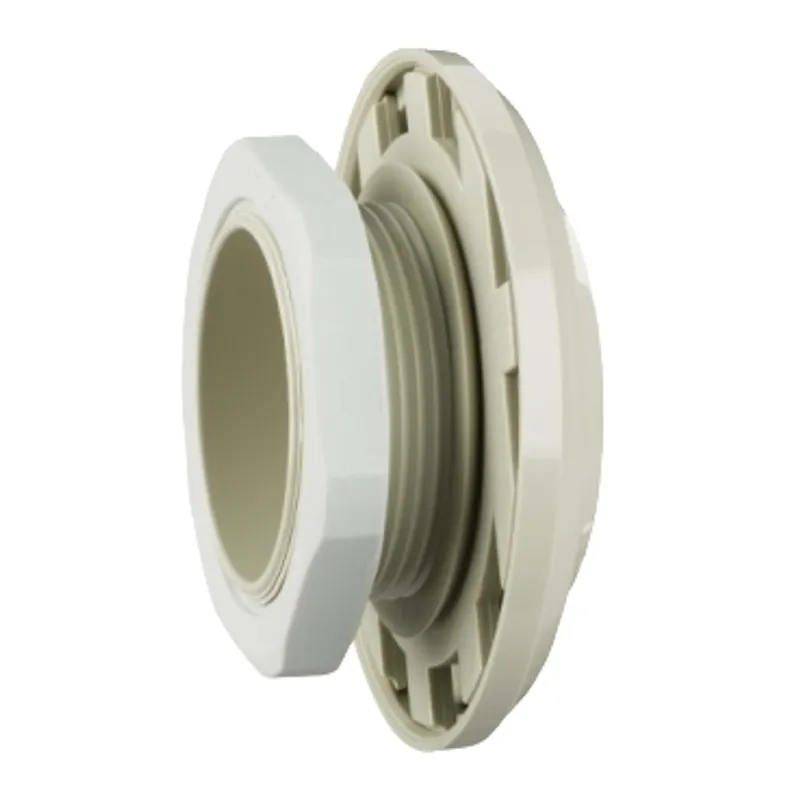

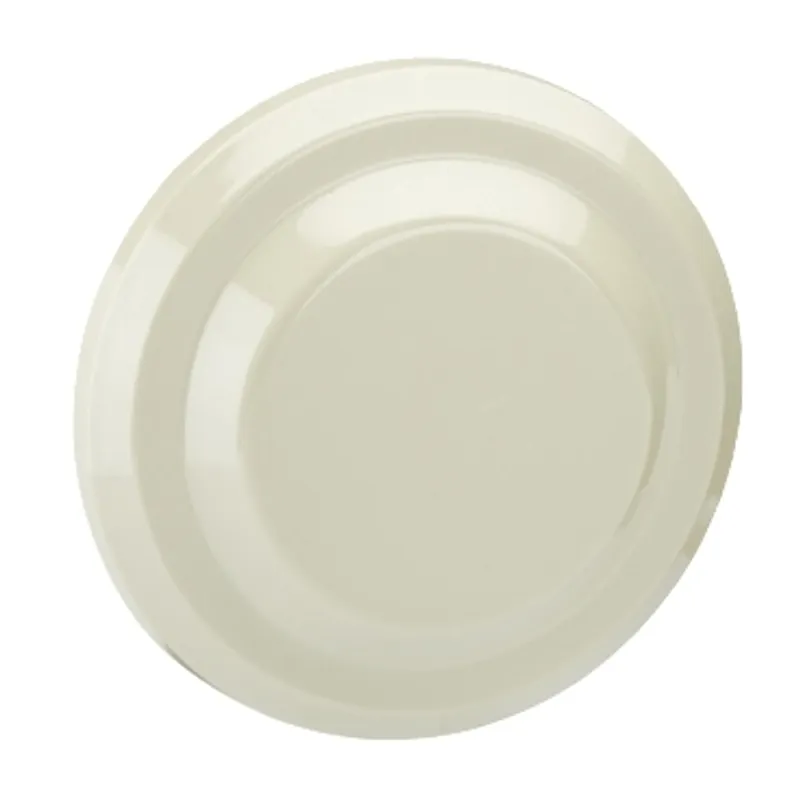

Plastic ventilation louvre 63 x 63mm made from polyamide 6 for Thalassa PLS, Thalassa PLM and Thalassa TBS enclosures The kit is made of 2 plastic louvres The external width is 63mm Ingress protection rating (according to IEC 60529) is IP45 Fixing by screws Cut-out dimensions is 38mm Painted in grey (RAL 7032)
Specifications
Specifications
| Range | ClimaSys |
| Product | ClimaSys CA |
| Range compatibility | PanelSeT PLA, PanelSeT PLM, PanelSeT TBS |
| Product or component type | Plastic ventilation louvre |
| Accessory / separate part category | Thermal management accessory |
| Accessory / separate part destination | ClimaSys ventilation system |
| fixing mode | By screws |
| Device composition | 2 plastic louvre |
| Material | ASA + PC |
| Colour | Grey (RAL 7035) |
| Cut-out dimensions | 38 mm |
| Height | External: 63 mm |
| Width | External: 63 mm |
| Depth | Thread : 15 mm |
| IP degree of protection | IP45 |
Packaging
| Package 1 | 1 PCE, 11.000 cm × 10.000 cm × 3.500 cm (L × W × H), 58.000 g |
| Package 2 | 200 CAR, 60.000 cm × 40.000 cm × 40.000 cm (L × W × H), 12.282 kg |
| Package 3 | 1600 P12, 120.000 cm × 80.000 cm × 97.000 cm (L × W × H), 111.000 kg |
