Schneider Electric NSYCAG33LP
Airing grille cut-out diameter 33mm IP45
- MPN
- NSYCAG33LP
- EAN
- 3606480151910
- Category
- ClimaSys CA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCAG33LP?

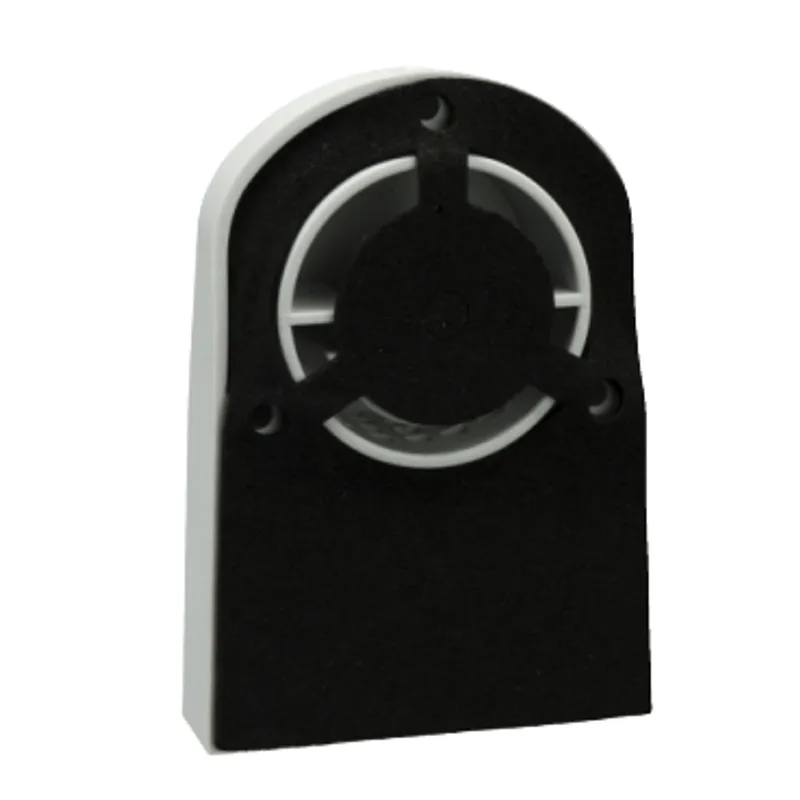

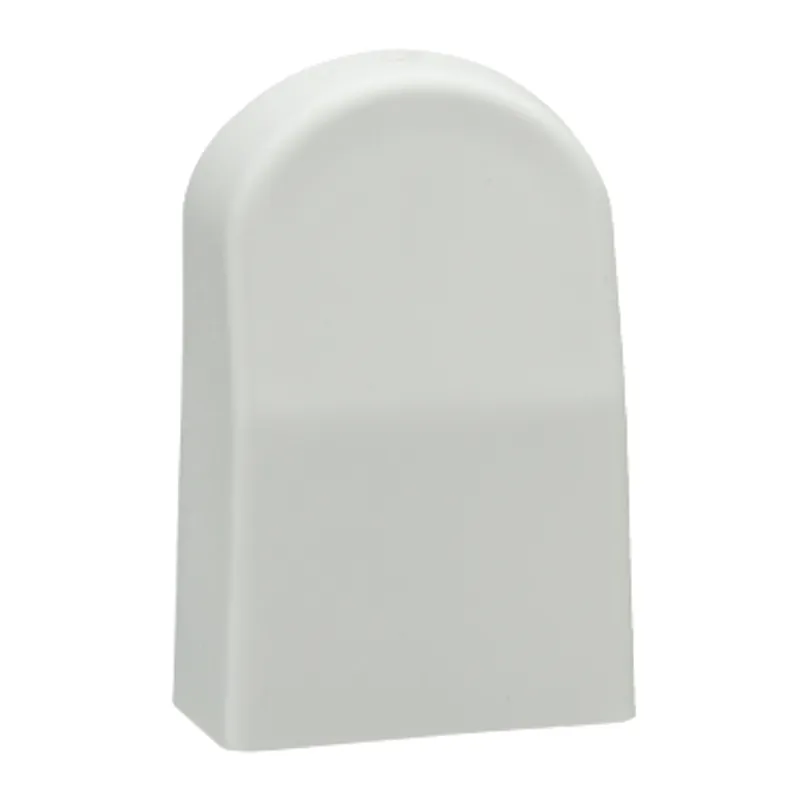

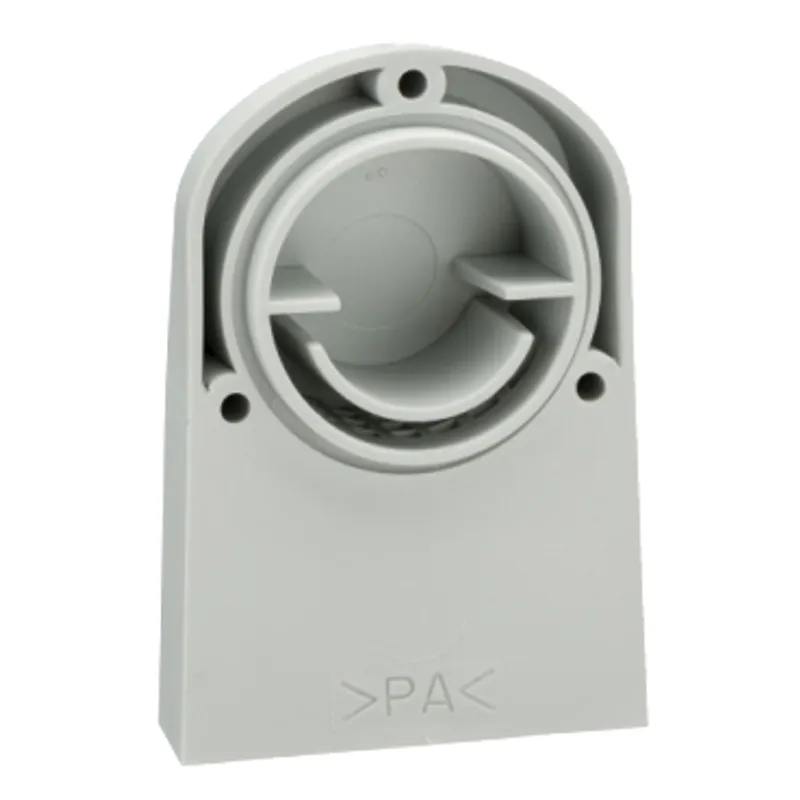

Plastic ventilation louvre 47 x 69mm made from polyamide 6 for Thalassa PLS, Thalassa PLM and Thalassa TBS enclosures The kit is made of 2 plastic louvres The external width is 47mm Ingress protection rating (according to IEC 60529) is IP44 Fixing by screws Mounting position is vertical Cut-out dimensions is 33mm
Specifications
Specifications
| Range | ClimaSys |
| Product | ClimaSys CA |
| Range compatibility | Thalassa Thalassa PLS, Thalassa Thalassa PLM, Thalassa Thalassa TBS |
| Product or component type | Plastic ventilation louvre |
| Accessory / separate part category | Thermal management accessory |
| Accessory / separate part destination | ClimaSys ventilation system |
| Mounting position | Vertical |
| fixing mode | By screws |
| Device composition | 2 plastic louvre |
| Material | Polyamide 6 |
| Colour | Grey (RAL 7035) |
| Cut-out dimensions | 33 mm |
| Height | External: 69 mm |
| Width | External: 47 mm |
| Depth | External : 22.5 mm |
| IP degree of protection | IP44 |
Packaging
| Package 1 | 1 PCE, 9.000 cm × 5.000 cm × 2.000 cm (L × W × H), 28.000 g |
| Package 2 | 2 BB1, 3.000 cm × 7.000 cm × 9.000 cm (L × W × H), 56.000 g |
