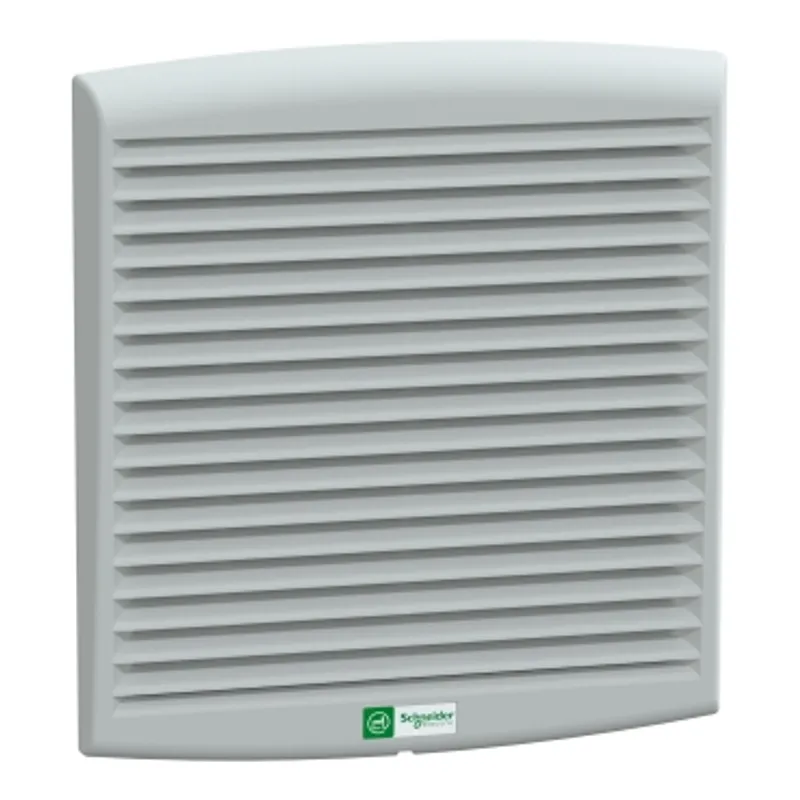

outlet grille plast cut out 223x223mm ext dim 268x248mm IP54
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CA |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 533 kg |
Shipping & availability
When can NSYCAG223LPF be shipped?
NSYCAG223LPF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCAG223LPF in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCAG223LPF and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCAG223LPF, subject to availability and destination.
Outlet grille 223 x 223mm made from injected thermoplastic (ASA PC) for Prisma P and ClimaSys CV fan The kit is made of 1 support frame, 1 external part and 1 G2 M1 synthetic standard filter The external width is 248mm Ingress protection rating (according to IEC 60529) is IP54 Fixing by screws or by clips Cut-out dimensions is 223 x 223mm Painted in external part: grey (RAL 7035)
Specifications
Specifications
| Range | ClimaSys |
| Product | ClimaSys CA |
| Range compatibility | Prisma Prisma P, ClimaSys ClimaSys CV fan |
| Certification | CSA |
| Product or component type | Outlet grille |
| Accessory / separate part category | Thermal management accessory |
| Accessory / separate part destination | ClimaSys ventilation system |
| fixing mode | By screws, Clipped |
| Device composition | 1 support frame, 1 external part, 1 G2 M1 synthetic standard filter |
| Material | Injected thermoplastic (ASA PC) |
| Colour | External part: grey (RAL 7035) |
| Cut-out dimensions | 223 x 223 mm |
| Height | External: 268 mm |
| Width | External: 248 mm |
| Depth | External : 18 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.500 cm |
| Package 1 Width | 25.500 cm |
| Package 1 Length | 28.000 cm |
| Package 1 Weight | 533.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.330 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 131.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 143.000 kg |
| Warranty | 18 months |
