Schneider Electric NSYCAG35LP
Airing grille cut-out diameter 35mm IP44
- MPN
- NSYCAG35LP
- EAN
- 3606480151880
- Category
- ClimaSys CA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

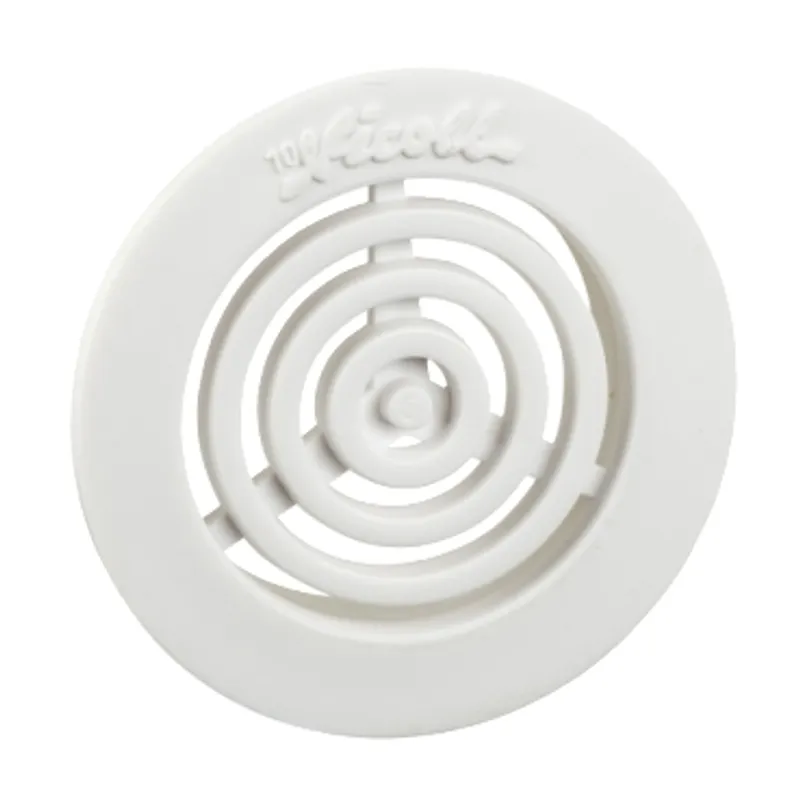

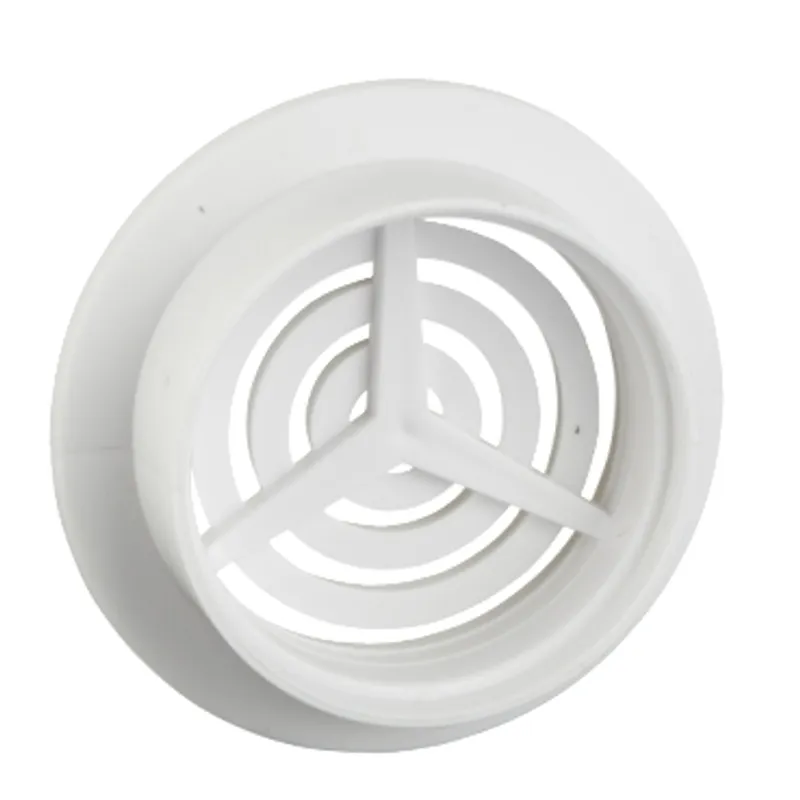

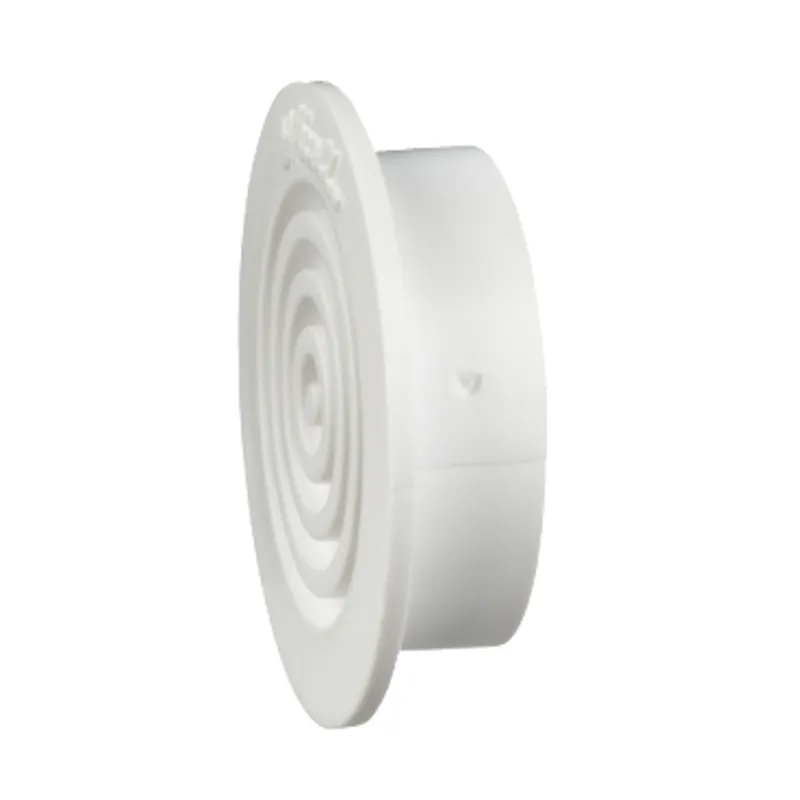

What is the Schneider Electric NSYCAG35LP?
Plastic ventilation louvre 150 x 15mm made from polyamide 6 for Thalassa PLM enclosures The kit is made of 2 plastic louvres The width is 150mm Ingress protection rating (according to IEC 60529) is IP44 ( installation in Thalassa enclosure ) and IP30 Fixing by clips Cut-out dimensions is 35mm Painted in white
Specifications
Specifications
| Range | ClimaSys |
| Product | ClimaSys CA |
| Range compatibility | Thalassa Thalassa PLM |
| Product or component type | Plastic ventilation louvre |
| Accessory / separate part category | Thermal management accessory |
| Accessory / separate part destination | ClimaSys ventilation system |
| fixing mode | Clipped |
| Device composition | 2 plastic louvre |
| Material | Polyamide 6 |
| Colour | White |
| Cut-out dimensions | 35 mm |
| Height | 15 mm |
| Width | 150 mm |
| IP degree of protection | IP44 ( installation in Thalassa enclosure ), IP30 |
Packaging
| Package 1 | 1 PCE, 11.000 cm × 7.000 cm × 2.000 cm (L × W × H), 11.000 g |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCAG35LP: frequently asked questions
When can NSYCAG35LP be shipped?
NSYCAG35LP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCAG35LP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCAG35LP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCAG35LP, subject to availability and destination.
