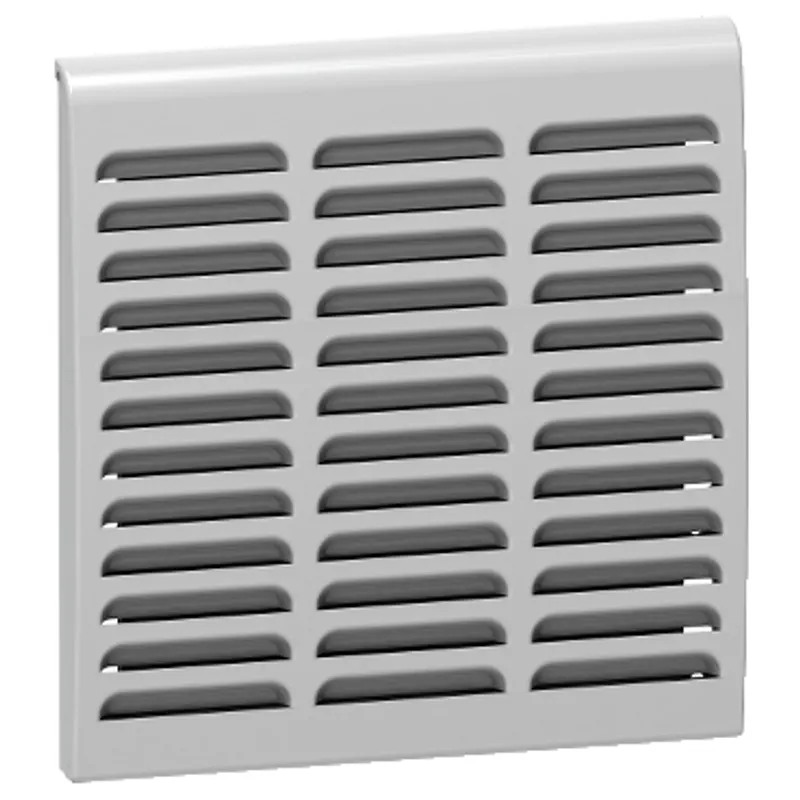

Schneider Electric NSYCAG223LFHD
ClimaSys FHD outdoor heavy duty - IP55 metal grille - cut-out 223x223
- MPN
- NSYCAG223LFHD
- EAN
- 3606480678790
- Category
- ClimaSys CA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCAG223LFHD?
"Outlet grille 62 x 315mm for ClimaSys CV fan, PanelSet SFHD, PanelSet S3HD and Thalassa PHD" "The product is made from steel, polyamide 6 and stainless steel" "The kit is made of 1 support frame, 1 external part, 4 screws and 1 G3 M1 synthetic standard filter" The external width is 300mm Ingress protection rating (according to IEC 60529) is IP55 ( outdoor ) Fixing by screws on sides of enclosure Mounting position is vertical Cut-out dimensions is 223 x 223mm Painted in grey (RAL 7035) external part and green (Pantone 355C) internal part Anti-corrosion protection is ensured by epoxy-polyester powder coating The product can be used in outdoor heavy duty applications in accordance with UL conforming to UL 94 and CE conforming to ENV 1630 "This product is qualified as a green premium, with minimal use of hazardous substances"
Specifications
Specifications
| Range | ClimaSys |
| Product | ClimaSys CA |
| Application | Outdoor heavy duty |
| Range compatibility | ClimaSys ClimaSys CV fan, Spacial Spacial SFHD, Spacial Spacial S3HD, Thalassa Thalassa PHD |
| Certification | UL conforming to UL 94, CE conforming to ENV 1630, CSA |
| Product or component type | Outlet grille |
| Accessory / separate part category | Thermal management accessory |
| Accessory / separate part destination | ClimaSys ventilation system |
| Mounting location | Sides of enclosure |
| Mounting position | Vertical |
| fixing mode | By screws |
| Device composition | 1 support frame, 1 external part, 4 screw, 1 G3 M1 synthetic standard filter |
| Material | Steel, Polyamide 6, Stainless steel |
| Colour | External part: grey (RAL 7035), Internal part: green (Pantone 355C) |
| Surface finish | Epoxy-polyester powder |
| Cut-out dimensions | 223 x 223 mm |
| Height | External: 315 mm |
| Width | External: 300 mm |
| Depth | External : 60 mm |
| IP degree of protection | IP55 ( outdoor ) |
Packaging
| Package 1 | 1 PCE, 35.000 cm × 31.000 cm × 8.000 cm (L × W × H), 3.042 kg |
| Package 2 | 96 PAM, 120.000 cm × 100.000 cm × 100.000 cm (L × W × H), 306.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCAG223LFHD: frequently asked questions
When can NSYCAG223LFHD be shipped?
NSYCAG223LFHD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCAG223LFHD in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCAG223LFHD and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCAG223LFHD, subject to availability and destination.
