Schneider Electric LXM62DC13G21000

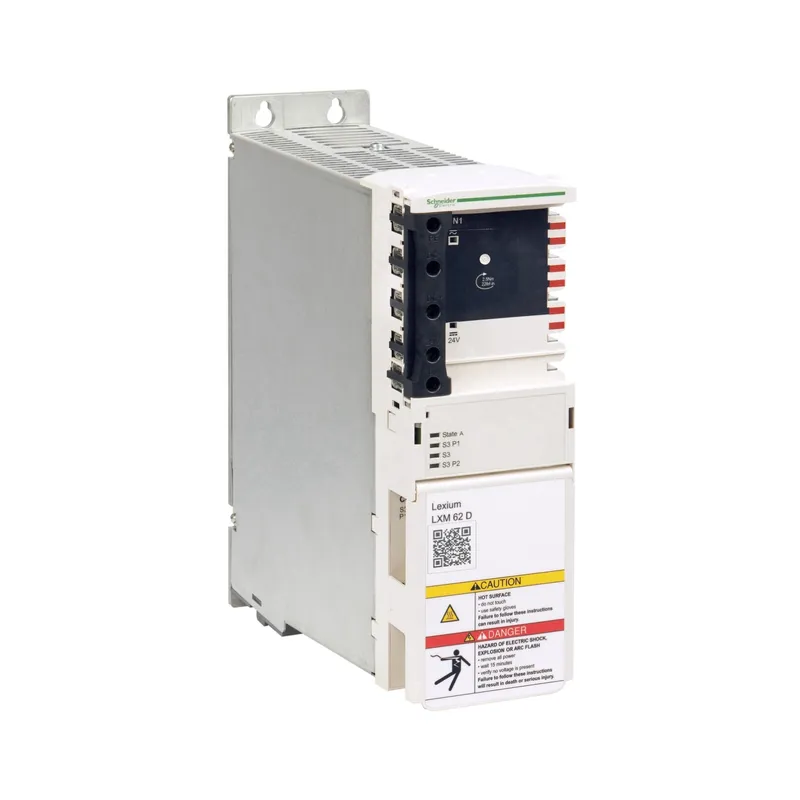

LXM62 Single Axis Servo Drive Advanced 130A, HW STO SIL 3 PLE, ACCKIT

MPN
LXM62DC13G21000
EAN
3606489595777
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric LXM62DC13G21000?

Schneider Electric LXM62DC13G21000 — LXM62 Single Axis Servo Drive Advanced 130A, HW STO SIL 3 PLE, ACCKIT (Lexium 62 & Motors). PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productPacDrive 3
Device short nameLXM 62
Product or component typeSingle axis servo drive
Component nameLXM62

Complementary

Product compatibilityServo motor SH3 (140 mm, 4 motor stacks)optimized in terms of torque and speed; Servo motor SH3 (205 mm, 1 motor stacks)optimized in terms of torque and speed; Servo motor SH3 (205 mm, 2 motor stacks)optimized in terms of torque and speed; Servo motor SH3 (205 mm, 3 motor stacks)optimized in terms of torque and speed; Servo motor MH3 (140 mm, 2 motor stacks)optimized in terms of torque and speed; Servo motor MH3 (140 mm, 3 motor stacks)optimized in terms of torque and speed; Servo motor MH3 (190 mm, 1 motor stacks)optimized in terms of torque and speed; Servo motor MH3 (190 mm, 2 motor stacks)optimized in terms of torque and speed; Servo motor MH3 (190 mm, 3 motor stacks)optimized in terms of torque and speed; Servo motor SHS
Network number of phasesThree phase
[Us] rated supply voltage400 V (- 10...10 %) for three phase; 230 V (- 10...10 %) for three phase; 230 V (- 10...10 %) for single phase
Supply frequency50/60 Hz - 5...5 %
Continuous output current50 A at 4 kHz
Output current 3s peak130 A at 4 kHz
Continuous power24.7 kW
Nominal power24.7 kW
Switching frequency8 kHz
Overvoltage categoryIII
Electrical connectionTerminal, clamping capacity: 0.2...15 mm², 24 AWG...16 AWG (CN4); Terminal, clamping capacity: 0.5...16 mm², 20 AWG...6 AWG (CN5); Terminal, clamping capacity: 0.75...16 mm², 18 AWG...6 AWG (CN6); Terminal, clamping capacity: 0.2...6 mm², 24 AWG...10 AWG (CN7)
Tightening torqueCN1: 2.5 N.m
Number of inputs2 digital; 2 touch probe
Discrete input voltage24 V DC for - 20...25 %
Number of outputs2 digital
Discrete output voltage24 V DC
Safety functionSTO (safe torque off)
Communication interfaceSERCOS III, integrated
Depth270 mm
Height310 mm
Width89 mm
Net weight6.8 kg

Environment

StandardsCSA C22.2 No 14; ISO 13849-2; IEC 61800-5-2; IEC 61800-3; IEC 62061; IEC 61800-5-1; ISO 13849-1; IEC 61508; UL 508C
Product certificationsCSA; UL; CE; EAC; TÜV
IP degree of protectionIP20 conforming to IEC 60529
Vibration resistance10 m/s² conforming to IEC 60721-3-3
Shock resistance100 m/s² conforming to IEC 60721-3-3
Pollution degree2 conforming to IEC 61800-5-2
Environmental characteristic3K3 conforming to IEC 60721-3-3
Relative humidity5…85 %
Ambient air temperature for operation5…55 °C
