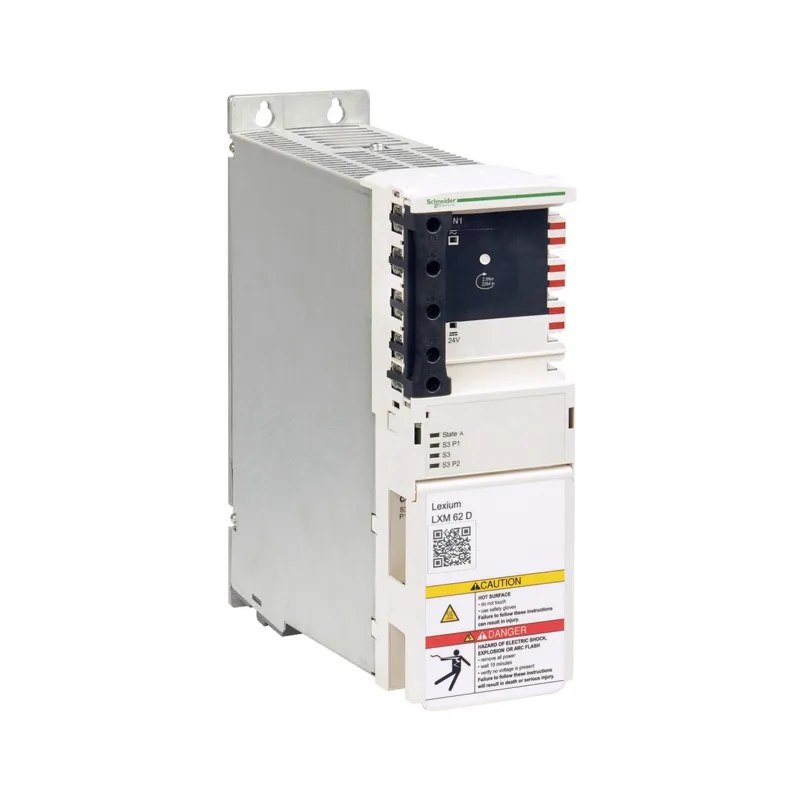

Schneider Electric LXM62DC13C21000

Lexium 62 Single Drive 130 A - accessory kit included

MPN
LXM62DC13C21000
EAN
3606485313399
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric LXM62DC13C21000?

This product is part of the Lexium 62 & Motors range, an offer of servo drives. The single drive features SERCOS III physical interface. It offers 2 digital/2 touch probe inputs and 2 digital outputs. It is a single drive with a rated supply voltage of 24VDC, a continuous output current of 50A at 4kHz and a continuous power of 24.7kW. It is furnished with connectors for electrical connection. It is an IP20 rated product. It weighs 6.8kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE, CSA, EAC, TUV and UL. It meets UL 508C, EN 61800-5-1, EN/ISO 13849-1, IEC 61508, EN 61800-3 and IEC 62061 standards. This product is compatible with servo motor SH3 (140mm, 4 motor stacks), servo motor SH3 (205mm, 1 motor stack) and servo motor SH3 (205mm, 2 motor stacks). It includes accessory kit. Lexium 62 multi-axis servo systems can be controlled with all PacDrive 3 LMC motion controllers of the Pro/Pro2 and Eco series via SERCOS communication. Multi axis servo drives and servo motors from 0.95kW to 24kW for PacDrive based automation solutions. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productPacDrive 3
Device short nameLXM 62
Product or component typeSingle drive
Component nameLXM62

Complementary

Product compatibilityServo motor SH3 (140 mm, 4 motor stacks)optimized in terms of torque and speed; Servo motor SH3 (205 mm, 1 motor stacks)optimized in terms of torque and speed; Servo motor SH3 (205 mm, 2 motor stacks)optimized in terms of torque and speed; Servo motor SH3 (205 mm, 3 motor stacks)optimized in terms of torque and speed; Servo motor MH3 (140 mm, 2 motor stacks)optimized in terms of torque and speed; Servo motor MH3 (140 mm, 3 motor stacks)optimized in terms of torque and speed; Servo motor MH3 (190 mm, 1 motor stacks)optimized in terms of torque and speed; Servo motor MH3 (190 mm, 2 motor stacks)optimized in terms of torque and speed; Servo motor MH3 (190 mm, 3 motor stacks)optimized in terms of torque and speed; Servo motor SHS
Network number of phasesThree phase
[Us] rated supply voltage400 V (- 10...10 %) for three phase; 230 V (- 10...10 %) for three phase; 230 V (- 10...10 %) for single phase
Supply frequency50/60 Hz - 5...5 %
Continuous output current50 A at 4 kHz
Output current 3s peak130 A at 4 kHz
Continuous power24.7 kW
Nominal power24.7 kW
Switching frequency8 kHz
Overvoltage categoryIII
Electrical connectionTerminal, clamping capacity: 0.2...15 mm², 24 AWG...16 AWG (CN4); Terminal, clamping capacity: 0.5...16 mm², 20 AWG...6 AWG (CN5); Terminal, clamping capacity: 0.75...16 mm², 18 AWG...6 AWG (CN6); Terminal, clamping capacity: 0.2...6 mm², 24 AWG...10 AWG (CN7)
Tightening torqueCN1: 2.5 N.m
Number of inputs2 digital; 2 touch probe
Discrete input voltage24 V DC for - 20...25 %
Number of outputs2 digital
Discrete output voltage24 V DC
Safety functionSTO (safe torque off)
Communication interfaceSERCOS III, integrated
Depth270 mm
Height310 mm
Width89.5 mm
Net weight6.8 kg

Environment

StandardsUL 508C; IEC 61800-5-1; ISO 13849-1; IEC 61508; IEC 61800-3; IEC 61800-5-2; IEC 62061; ISO 13849-2; CSA C22.2 No 14
Product certificationsCSA; UL; CE; EAC; TÜV
IP degree of protectionIP20 conforming to IEC 60529
Vibration resistance10 m/s² conforming to IEC 60721-3-3
Shock resistance100 m/s² conforming to IEC 60721-3-3
Pollution degree2 conforming to IEC 61800-5-2
Environmental characteristic3K3 conforming to IEC 60721-3-3
Relative humidity5…85 %
Ambient air temperature for operation5…55 °C

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

LXM62DC13C21000: frequently asked questions

When can LXM62DC13C21000 be shipped?

LXM62DC13C21000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LXM62DC13C21000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LXM62DC13C21000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LXM62DC13C21000, subject to availability and destination.

More Schneider Electric parts

Schneider Electric LXM62DC13E21000 – Lexium 62 Single Drive 130A Emb. Safety - accessory kit included
Schneider Electric
LXM62DC13E21000

Lexium 62 Single Drive 130A Emb. Safety - accessory kit included

Schneider Electric LXM62DC13G21000 – LXM62 Single Axis Servo Drive Advanced 130A, HW STO SIL 3 PLE, ACCKIT
Schneider Electric
LXM62DC13G21000

LXM62 Single Axis Servo Drive Advanced 130A, HW STO SIL 3 PLE, ACCKIT

Schneider Electric LXM62DD15B21000 – Lexium 62 Double Drive - accessory kit included
Schneider Electric
LXM62DD15B21000

Lexium 62 Double Drive - accessory kit included

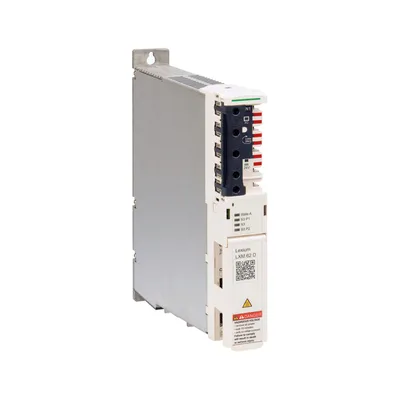

Schneider Electric LXM62DD15C21000 – Lexium 62 Single Drive 15 A - accessory kit included
