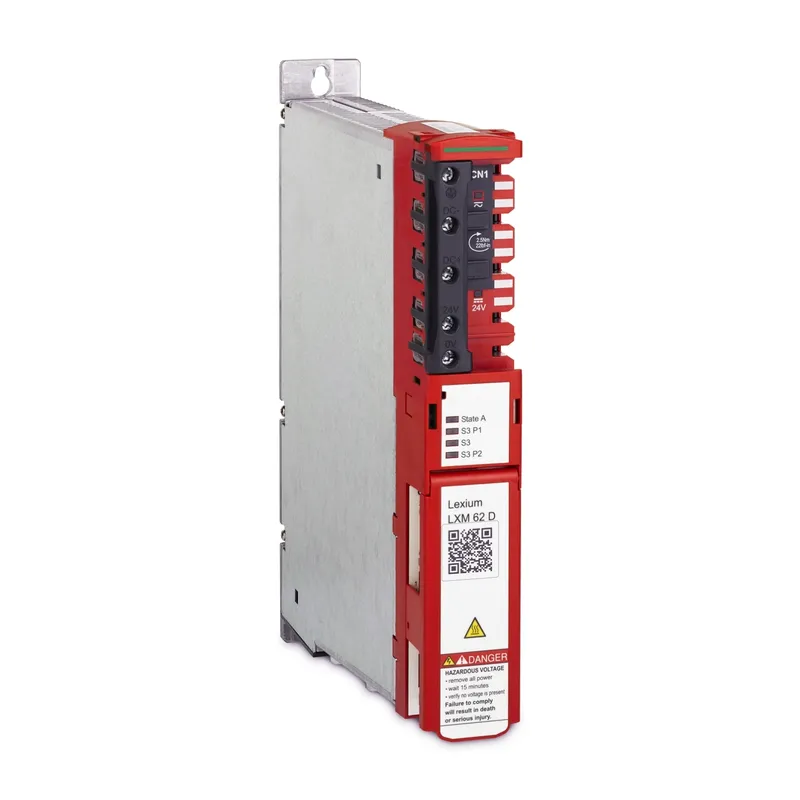

Schneider Electric LXM62DD15E21000 – Lexium 62 Single Drive 15A Emb. Safety - accessory kit included

MPN: LXM62DD15E21000 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lexium 62 & Motors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3606486926949
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can LXM62DD15E21000 be shipped?

LXM62DD15E21000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LXM62DD15E21000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LXM62DD15E21000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LXM62DD15E21000, subject to availability and destination.

Schneider Electric LXM62DD15E21000 — Lexium 62 Single Drive 15A Emb. Safety - accessory kit included (Lexium 62 & Motors). PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	PacDrive 3
Device short name	LXM 62
Product or component type	Single drive
Component name	LXM62

Complementary

Product compatibility	Servo motor SHS; Servo motor SH3 (70 mm, 2 motor stacks)optimized in terms of torque and speed; Servo motor SH3 (70 mm, 3 motor stacks)optimized in terms of torque and speed; Servo motor SH3 (100 mm, 1 motor stacks)optimized in terms of torque and speed; Servo motor SH3 (100 mm, 2 motor stacks)optimized in terms of torque and speed; Servo motor SH3 (100 mm, 2 motor stacks)optimized in terms of high torque; Servo motor SH3 (100 mm, 3 motor stacks)optimized in terms of high torque; Servo motor SH3 (140 mm, 1 motor stacks)optimized in terms of high torque; Servo motor MH3 (70 mm, 2 motor stacks)optimized in terms of torque and speed; Servo motor MH3 (70 mm, 3 motor stacks)optimized in terms of torque and speed; Servo motor MH3 (100 mm, 1 motor stacks)optimized in terms of torque and speed
Network number of phases	Three phase
[Us] rated supply voltage	400 V (- 10...10 %) for three phase; 230 V (- 10...10 %) for three phase; 230 V (- 10...10 %) for single phase
Supply frequency	50/60 Hz - 5...5 %
Continuous output current	5 A at 4 kHz
Output current 3s peak	15 A at 4 kHz
Continuous power	2.4 kW
Nominal power	2.4 kW
Switching frequency	8 kHz
Overvoltage category	III
Electrical connection	Terminal, clamping capacity: 0.2...15 mm², 24 AWG...16 AWG (CN4); Terminal, clamping capacity: 0.5...16 mm², 20 AWG...6 AWG (CN5); Terminal, clamping capacity: 0.75...16 mm², 18 AWG...6 AWG (CN6); Terminal, clamping capacity: 0.2...6 mm², 24 AWG...10 AWG (CN7)
Tightening torque	CN1: 2.5 N.m
Number of inputs	2 digital; 2 touch probe
Discrete input voltage	24 V DC for - 20...25 %
Number of outputs	2 digital
Discrete output voltage	24 V DC
Safety function	STO (safe torque off); SS1 (safe stop 1); SS2 (safe stop 2); SOS (safe operating stop); SMS (safe maximum speed); SLS (safe limited speed); SDI (safe direction indication)
Communication interface	SERCOS III, integrated
Depth	270 mm
Height	310 mm
Width	44.5 mm
Net weight	3 kg

Environment

Standards	IEC 61800-5-2; IEC 61800-5-1; IEC 61800-3; ISO 13849-1; UL 508C; IEC 61508; IEC 62061; ISO 13849-2; CSA C22.2 No 14
Product certifications	TÜV; EAC; CSA; UL; CE
IP degree of protection	IP20 conforming to IEC 60529
Vibration resistance	10 m/s² conforming to IEC 60721-3-3
Shock resistance	100 m/s² conforming to IEC 60721-3-3
Pollution degree	2 conforming to IEC 61800-5-2
Environmental characteristic	3K3 conforming to IEC 60721-3-3
Relative humidity	5…85 %
Ambient air temperature for operation	5…55 °C
