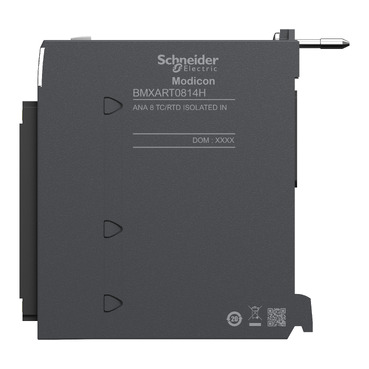

Schneider Electric BMXART0814H
Analog isolated low level input module, Modicon X80, 8 inputs, 40mV positive or negative, for severe environments
- MPN
- BMXART0814H
- EAN
- 3595864025315
- Category
- Modicon X80 modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric BMXART0814H?
This analog isolated input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 input channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It is furnished with 40-way connector for electrical connection. This product is IP20 rated and offers 904111 hours of MTBF. This analog module has a weight of 0.165kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with one 40-way connector. The product must be installed on the rack and fixed with 2 screws.
Specifications
Specifications
| Range of product | Modicon X80 |
| Product or component type | Analog input module |
| Product specific application | For severe environments |
| Electrical connection | 40 ways 2 connectors |
| Isolation between channels | Isolated |
| Input level | Low level |
| Analogue input number | 8 |
| Analogue input type | Voltage +/- 1.28 V, Voltage +/- 160 mV, Voltage +/- 320 mV, Voltage +/- 40 mV, Voltage +/- 640 mV, Voltage +/- 80 mV, Resistor 400 Ohm 2 wires, Resistor 400 Ohm 3 wires, Resistor 400 Ohm 4 wires, Resistor 4000 Ohm 2 wires, Resistor 4000 Ohm 3 wires, Resistor 4000 Ohm 4 wires, Temperature probe -100...+260 °C Cu 10, Temperature probe -100...+450 °C Pt 100 conforming to UL/JIS, Temperature probe -100...+450 °C Pt 1000 conforming to UL/JIS, Temperature probe -200...+850 °C Pt 100 conforming to IEC, Temperature probe -200...+850 °C Pt 1000 conforming to IEC, Temperature probe -60...+180 °C Ni 100, Temperature probe -60...+180 °C Ni 1000, Thermocouple +130...+1820 °C thermocouple B, Thermocouple +270...+1300 °C thermocouple N, Thermocouple -200...+600 °C thermocouple U, Thermocouple -200...+760 °C thermocouple J, Thermocouple -200...+900 °C thermocouple L, Thermocouple -270...+1000 °C thermocouple E, Thermocouple -270...+1370 °C thermocouple K, Thermocouple -270...+400 °C thermocouple T, Thermocouple -50...+1769 °C thermocouple R, Thermocouple -50...+1769 °C thermocouple S |
| Analog/digital conversion | Sigma delta 16 bits |
| Analogue input resolution | 15 bits + sign |
| Permitted overload on inputs | +/- 7.5 V +/- 1.28 V, +/- 7.5 V +/- 160 mV, +/- 7.5 V +/- 320 mV, +/- 7.5 V +/- 40 mV, +/- 7.5 V +/- 640 mV, +/- 7.5 V +/- 80 mV |
| Common mode rejection | 120 dB 50/60 Hz |
| Differential mode rejection | 60 dB 50/60 Hz |
| Cold junction compensation | External by Pt100 probe |
| Type of filter | First order digital filtering |
| Nominal read cycle time | 400 ms with temperature probe, 200 ms with thermocouple |
| Measurement error | +/- 0.7 °C Ni 1000 25 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2.1 °C Pt 100 25 °C, +/- 2.1 °C Pt 1000 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 3 °C thermocouple L 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3.2 °C thermocouple S 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.7 °C thermocouple K 25 °C, +/- 3.7 °C thermocouple N 25 °C, +/- 3.7 °C thermocouple T 25 °C, +/- 4 °C Cu 10 25 °C, 0.05 % of full scale +/- 1.28 V 25 °C, 0.05 % of full scale +/- 160 mV 25 °C, 0.05 % of full scale +/- 320 mV 25 °C, 0.05 % of full scale +/- 40 mV 25 °C, 0.05 % of full scale +/- 640 mV 25 °C, 0.05 % of full scale +/- 80 mV 25 °C, 0.12 % of full scale 400 Ohm 25 °C, 0.12 % of full scale 4000 Ohm 25 °C, +/- 1.5 °C Ni 1000 - 25...70 °C, +/- 3.5 °C Ni 100 - 25...70 °C, +/- 3.5 °C Pt 100 - 25...70 °C, +/- 3.5 °C Pt 1000 - 25...70 °C, +/- 4.5 °C Cu 10 - 25...70 °C, +/- 5.5 °C thermocouple J - 25...70 °C, +/- 5.5 °C thermocouple L - 25...70 °C, +/- 5.5 °C thermocouple R - 25...70 °C, +/- 5.5 °C thermocouple S - 25...70 °C, +/- 5.5 °C thermocouple U - 25...70 °C, +/- 6 °C thermocouple B - 25...70 °C, +/- 6 °C thermocouple E - 25...70 °C, +/- 6 °C thermocouple K - 25...70 °C, +/- 6 °C thermocouple N - 25...70 °C, +/- 6 °C thermocouple T - 25...70 °C, <= 0.2 % of full scale +/- 1.28 V - 25...70 °C, <= 0.2 % of full scale +/- 160 mV - 25...70 °C, <= 0.2 % of full scale +/- 320 mV - 25...70 °C, <= 0.2 % of full scale +/- 40 mV - 25...70 °C, <= 0.2 % of full scale +/- 640 mV - 25...70 °C, <= 0.2 % of full scale +/- 80 mV - 25...70 °C, <= 0.3 % of full scale 400 Ohm - 25...70 °C, <= 0.3 % of full scale 4000 Ohm - 25...70 °C |
| Temperature drift | 25 ppm/°C 400 Ohm, 25 ppm/°C 4000 Ohm, 25 ppm/°C Ni 1000, 25 ppm/°C thermocouple B, 25 ppm/°C thermocouple E, 25 ppm/°C thermocouple J, 25 ppm/°C thermocouple K, 25 ppm/°C thermocouple L, 25 ppm/°C thermocouple N, 25 ppm/°C thermocouple R, 25 ppm/°C thermocouple S, 25 ppm/°C thermocouple T, 25 ppm/°C thermocouple U, 30 ppm/°C +/- 1.28 V, 30 ppm/°C +/- 160 mV, 30 ppm/°C +/- 320 mV, 30 ppm/°C +/- 40 mV, 30 ppm/°C +/- 640 mV, 30 ppm/°C +/- 80 mV, 30 ppm/°C Cu 10, 30 ppm/°C Ni 100, 30 ppm/°C Pt 100, 30 ppm/°C Pt 1000 |
| Recalibration | Internal |
| Detection type | Open circuit Cu 10, Open circuit Ni 100, Open circuit Ni 1000, Open circuit Pt 100, Open circuit Pt 1000, Open circuit thermocouple B, Open circuit thermocouple E, Open circuit thermocouple J, Open circuit thermocouple K, Open circuit thermocouple L, Open circuit thermocouple N, Open circuit thermocouple R, Open circuit thermocouple S, Open circuit thermocouple T, Open circuit thermocouple U |
| Maximum wiring resistance | 20 Ohm 2 wires Cu 10, 20 Ohm 2 wires Ni 100, 20 Ohm 2 wires Pt 100, 20 Ohm 3 wires Cu 10, 20 Ohm 3 wires Ni 100, 20 Ohm 3 wires Pt 100, 200 Ohm 2 wires Ni 1000, 200 Ohm 2 wires Pt 1000, 200 Ohm 3 wires Ni 1000, 200 Ohm 3 wires Pt 1000, 50 Ohm 4 wires Cu 10, 50 Ohm 4 wires Ni 100, 50 Ohm 4 wires Pt 100, 500 Ohm 4 wires Ni 1000, 500 Ohm 4 wires Pt 1000 |
| Measurement resolution | 0.1 °C Cu 10, 0.1 °C Ni 100, 0.1 °C Ni 1000, 0.1 °C Pt 100, 0.1 °C Pt 1000, 0.1 °C thermocouple B, 0.1 °C thermocouple E, 0.1 °C thermocouple J, 0.1 °C thermocouple K, 0.1 °C thermocouple L, 0.1 °C thermocouple N, 0.1 °C thermocouple R, 0.1 °C thermocouple S, 0.1 °C thermocouple T, 0.1 °C thermocouple U, 1280/2exp14 mV +/- 1.28 V, 160/2exp14 mV +/- 160 mV, 320/2exp14 mV +/- 320 mV, 40/2exp14 mV +/- 40 mV, 12.5 mOhm 400 Ohm, 125 mOhm 4000 Ohm, 640/2exp14 mV +/- 640 mV, 80/2exp14 mV +/- 80 mV |
| Maximum conversion value | +/- 100 % 400 Ohm, +/- 100 % 4000 Ohm, +/- 102.5 % +/- 1.28 V, +/- 102.5 % +/- 160 mV, +/- 102.5 % +/- 320 mV, +/- 102.5 % +/- 40 mV, +/- 102.5 % +/- 640 mV, +/- 102.5 % +/- 80 mV |
| MTBF reliability | 900000 H |
| Operating altitude | 0...2000 m, 2000...5000 m with derating factor |
| Status LED | 1 LED (green) RUN, 1 LED per channel (green) channel diagnostic, 1 LED (red) ERR, 1 LED (red) I/O |
| Net weight | 0.165 kg |
| Current consumption | 150 mA at 3.3 V DC, 50 mA at 24 V DC |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…70 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Product certifications | CSA, UL, IEC-Ex, CE, Merchant Navy, RCM, ATEX, EAC |
| Standards | IEC 61131-2, IEC 61000-6-4, IEC 61000-6-2, EN 61010-2-201 |
| Environmental characteristic | Gas resistant class Gx, Gas resistant class 3C4, Dust resistant class 3S4, Sand resistant class 3S4, Salt resistant level 2, Mold growth resistant class 3B2, Fungal spore resistant class 3B2, Hazardous location class I division 2 |
| Protective treatment | Conformal coating |
Packaging
| Package 1 | 1 PCE, 12.000 cm × 11.000 cm × 5.500 cm (L × W × H), 225.000 g |
| Package 2 | 15 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 3.550 kg |
