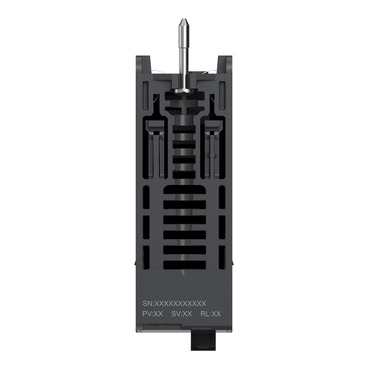

Schneider Electric BMXART0414

Analog isolated low level input module, Modicon X80, 4 inputs, 40mV positive or negative

MPN
BMXART0414
EAN
3595863910186
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMXART0414?

This analog isolated input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 4 input channels. This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 1409427 hours of MTBF. This analog module has a weight of 0.135kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with one 40-way connector. The product must be installed on the rack and fixed with 2 screws.

Specifications

Specifications

Range of productModicon X80
Product or component typeAnalog input module
Electrical connection40 ways 1 connector
Isolation between channelsIsolated
Input levelLow level
Analogue input number4
Analogue input typeVoltage +/- 1.28 V, Voltage +/- 160 mV, Voltage +/- 320 mV, Voltage +/- 40 mV, Voltage +/- 640 mV, Voltage +/- 80 mV, Resistor 400 Ohm 2 wires, Resistor 400 Ohm 3 wires, Resistor 400 Ohm 4 wires, Resistor 4000 Ohm 2 wires, Resistor 4000 Ohm 3 wires, Resistor 4000 Ohm 4 wires, Temperature probe -100...+260 °C Cu 10, Temperature probe -100...+450 °C Pt 100 conforming to UL/JIS, Temperature probe -100...+450 °C Pt 1000 conforming to UL/JIS, Temperature probe -200...+850 °C Pt 100 conforming to IEC, Temperature probe -200...+850 °C Pt 1000 conforming to IEC, Temperature probe -60...+180 °C Ni 100, Temperature probe -60...+180 °C Ni 1000, Thermocouple +130...+1820 °C thermocouple B, Thermocouple +270...+1300 °C thermocouple N, Thermocouple -200...+600 °C thermocouple U, Thermocouple -200...+760 °C thermocouple J, Thermocouple -200...+900 °C thermocouple L, Thermocouple -270...+1000 °C thermocouple E, Thermocouple -270...+1370 °C thermocouple K, Thermocouple -270...+400 °C thermocouple T, Thermocouple -50...+1769 °C thermocouple R, Thermocouple -50...+1769 °C thermocouple S
Analog/digital conversionSigma delta 16 bits
Analogue input resolution15 bits + sign
Permitted overload on inputs+/- 7.5 V +/- 1.28 V, +/- 7.5 V +/- 160 mV, +/- 7.5 V +/- 320 mV, +/- 7.5 V +/- 40 mV, +/- 7.5 V +/- 640 mV, +/- 7.5 V +/- 80 mV
Common mode rejection120 dB 50/60 Hz
Differential mode rejection60 dB 50/60 Hz
Cold junction compensationExternal by Pt100 probe
Type of filterFirst order digital filtering
Nominal read cycle time400 ms with temperature probe, 200 ms with thermocouple
Measurement error+/- 0.7 °C Ni 1000 25 °C, +/- 1.3 °C Ni 1000 0...60 °C, +/- 2 °C Pt 100 0...60 °C, +/- 2 °C Pt 1000 0...60 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2.1 °C Pt 100 25 °C, +/- 2.1 °C Pt 1000 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 3 °C Ni 100 0...60 °C, +/- 3 °C thermocouple L 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3.2 °C thermocouple S 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.7 °C thermocouple K 25 °C, +/- 3.7 °C thermocouple N 25 °C, +/- 3.7 °C thermocouple T 25 °C, +/- 4 °C Cu 10 0...60 °C, +/- 4 °C Cu 10 25 °C, +/- 4.5 °C thermocouple J 0...60 °C, +/- 4.5 °C thermocouple L 0...60 °C, +/- 4.5 °C thermocouple R 0...60 °C, +/- 4.5 °C thermocouple S 0...60 °C, +/- 4.5 °C thermocouple U 0...60 °C, +/- 5 °C thermocouple B 0...60 °C, +/- 5 °C thermocouple E 0...60 °C, +/- 5 °C thermocouple K 0...60 °C, +/- 5 °C thermocouple N 0...60 °C, +/- 5 °C thermocouple T 0...60 °C, <= 0.15 % of full scale +/- 1.28 V 0...60 °C, <= 0.15 % of full scale +/- 160 mV 0...60 °C, <= 0.15 % of full scale +/- 320 mV 0...60 °C, <= 0.15 % of full scale +/- 40 mV 0...60 °C, <= 0.15 % of full scale +/- 640 mV 0...60 °C, <= 0.15 % of full scale +/- 80 mV 0...60 °C, <= 0.2 % of full scale 400 Ohm 0...60 °C, <= 0.2 % of full scale 4000 Ohm 0...60 °C, 0.05 % of full scale +/- 1.28 V 25 °C, 0.05 % of full scale +/- 160 mV 25 °C, 0.05 % of full scale +/- 320 mV 25 °C, 0.05 % of full scale +/- 40 mV 25 °C, 0.05 % of full scale +/- 640 mV 25 °C, 0.05 % of full scale +/- 80 mV 25 °C, 0.12 % of full scale 400 Ohm 25 °C, 0.12 % of full scale 4000 Ohm 25 °C
Temperature drift25 ppm/°C 400 Ohm, 25 ppm/°C 4000 Ohm, 25 ppm/°C Ni 1000, 25 ppm/°C thermocouple B, 25 ppm/°C thermocouple E, 25 ppm/°C thermocouple J, 25 ppm/°C thermocouple K, 25 ppm/°C thermocouple L, 25 ppm/°C thermocouple N, 25 ppm/°C thermocouple R, 25 ppm/°C thermocouple S, 25 ppm/°C thermocouple T, 25 ppm/°C thermocouple U, 30 ppm/°C +/- 1.28 V, 30 ppm/°C +/- 160 mV, 30 ppm/°C +/- 320 mV, 30 ppm/°C +/- 40 mV, 30 ppm/°C +/- 640 mV, 30 ppm/°C +/- 80 mV, 30 ppm/°C Cu 10, 30 ppm/°C Ni 100, 30 ppm/°C Pt 100, 30 ppm/°C Pt 1000
RecalibrationInternal
Isolation voltage1400 V DC between channels and bus, 750 V DC between channels, 750 V DC between channels and ground
Detection typeOpen circuit Cu 10, Open circuit Ni 100, Open circuit Ni 1000, Open circuit Pt 100, Open circuit Pt 1000, Open circuit thermocouple B, Open circuit thermocouple E, Open circuit thermocouple J, Open circuit thermocouple K, Open circuit thermocouple L, Open circuit thermocouple N, Open circuit thermocouple R, Open circuit thermocouple S, Open circuit thermocouple T, Open circuit thermocouple U
Maximum wiring resistance20 Ohm 2 wires Cu 10, 20 Ohm 2 wires Ni 100, 20 Ohm 2 wires Pt 100, 20 Ohm 3 wires Cu 10, 20 Ohm 3 wires Ni 100, 20 Ohm 3 wires Pt 100, 200 Ohm 2 wires Ni 1000, 200 Ohm 2 wires Pt 1000, 200 Ohm 3 wires Ni 1000, 200 Ohm 3 wires Pt 1000, 50 Ohm 4 wires Cu 10, 50 Ohm 4 wires Ni 100, 50 Ohm 4 wires Pt 100, 500 Ohm 4 wires Ni 1000, 500 Ohm 4 wires Pt 1000
Measurement resolution0.1 °C Cu 10, 0.1 °C Ni 100, 0.1 °C Ni 1000, 0.1 °C Pt 100, 0.1 °C Pt 1000, 0.1 °C thermocouple B, 0.1 °C thermocouple E, 0.1 °C thermocouple J, 0.1 °C thermocouple K, 0.1 °C thermocouple L, 0.1 °C thermocouple N, 0.1 °C thermocouple R, 0.1 °C thermocouple S, 0.1 °C thermocouple T, 0.1 °C thermocouple U, 1280/2exp14 mV +/- 1.28 V, 160/2exp14 mV +/- 160 mV, 320/2exp14 mV +/- 320 mV, 40/2exp14 mV +/- 40 mV, 12.5 mOhm 400 Ohm, 125 mOhm 4000 Ohm, 640/2exp14 mV +/- 640 mV, 80/2exp14 mV +/- 80 mV
Maximum conversion value+/- 100 % 400 Ohm, +/- 100 % 4000 Ohm, +/- 102.5 % +/- 1.28 V, +/- 102.5 % +/- 160 mV, +/- 102.5 % +/- 320 mV, +/- 102.5 % +/- 40 mV, +/- 102.5 % +/- 640 mV, +/- 102.5 % +/- 80 mV
MTBF reliability1400000 H
Operating altitude0...2000 m, 2000...5000 m with derating factor
Status LED1 LED (green) RUN, 1 LED per channel (green) channel diagnostic, 1 LED (red) ERR, 1 LED (red) I/O
Net weight0.135 kg
Current consumption150 mA at 3.3 V DC, 40 mA at 24 V DC
Vibration resistance3 gn
Shock resistance30 gn
Ambient air temperature for storage-40…85 °C
Ambient air temperature for operation0…60 °C
Relative humidity5…95 % at 55 °C without condensation
IP degree of protectionIP20
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Product certificationsEAC, RCM, UL, Merchant Navy, CSA, CE
StandardsIEC 61131-2, IEC 61000-6-4, IEC 61000-6-2, EN 61010-2-201
Protective treatmentStandard version

Packaging

Package 11 PCE, 11.500 cm × 11.000 cm × 5.500 cm (L × W × H), 164.000 g
Package 215 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 2.750 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

BMXART0414: frequently asked questions

When can BMXART0414 be shipped?

BMXART0414 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BMXART0414 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BMXART0414 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXART0414, subject to availability and destination.
