Schneider Electric

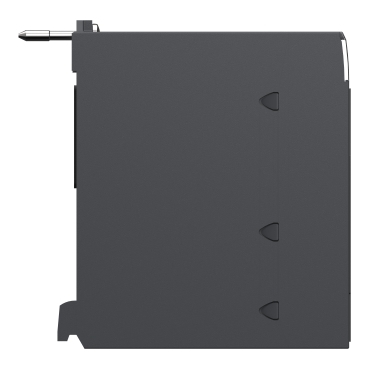

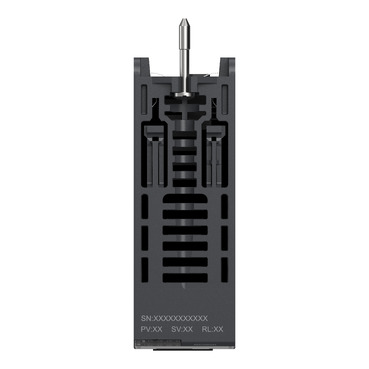

Schneider Electric BMXAMO0802H

Analog high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA, for severe environments

MPN
BMXAMO0802H
EAN
3606489698645
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMXAMO0802H?

"This analog non isolated output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580." "This product is composed of 8 output channels." "This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F." "Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "This product is IP20 rated and offers 1505810 hours of MTBF." "This analog module has a weight of 0.150kg and dimensions of 32x100x86mm." "This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers." "This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards." "This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block." "The product must be installed on the rack and fixed with 2 screws."

Specifications

Specifications

Range of productModicon X80
Product or component typeAnalog output module
Product specific applicationFor severe environments
Electrical connection20 ways 1 connector
Isolation between channelsNon isolated
Measurement error<= 0.45 % of full scale - 25...70 °C, 0.1 % of full scale 25 °C
Temperature drift45 ppm/°C 0...20 mA, 45 ppm/°C 4...20 mA
Minimum crosstalk attenuation80 dB
Common mode rejection80 dB
Isolation voltage1400 V DC between channels and ground, 1400 V DC between channels and bus
Detection typeOpen circuit 4...20 mA, Short circuit 0...20 mA
Load impedance ohmic<= 350 Ohm 0...20 mA, <= 350 Ohm 4...20 mA
Analogue output number8
Analogue output typeCurrent: 0...20 mA, Current: 4...20 mA
Analogue output resolution16 bits
SupplyInternal power supply via rack
Conversion time<= 4 ms
Maximum conversion value0...21 mA 0...20 mA, 0...21 mA 4...20 mA
Fallback modeConfigurable, Predefined
MTBF reliability1500000 H
Operating altitude0...2000 m, 2000...5000 m with derating factor
Status LED1 LED (green) RUN, 1 LED per channel (green) channel diagnostic, 1 LED (red) ERR, 1 LED (red) I/O
Net weight0.15 kg
Power consumption in W3.6 W 24 V DC typical, 3.9 W 24 V DC maximum, 0.35 W 3.3 V DC typical, 0.48 W 3.3 V DC maximum
Current consumption150 mA at 3.3 V DC, 135 mA at 24 V DC
Vibration resistance3 gn
Shock resistance30 gn
Ambient air temperature for storage-40…85 °C
Ambient air temperature for operation-25…70 °C
Relative humidity5…95 % at 55 °C without condensation
IP degree of protectionIP20
Product certificationsMerchant Navy, ATEX, CE, CSA, EAC, RCM, IEC-Ex, UL
StandardsIEC 61131-2, IEC 61000-6-4, IEC 61000-6-2, EN 61010-2-201
Environmental characteristicGas resistant class Gx, Gas resistant class 3C4, Dust resistant class 3S4, Sand resistant class 3S4, Salt resistant level 2, Mold growth resistant class 3B2, Fungal spore resistant class 3B2, Hazardous location class I division 2
Protective treatmentConformal coating

Packaging

Package 11 PCE, 11.500 cm × 11.000 cm × 5.300 cm (L × W × H), 180.000 g
Package 215 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 3.050 kg
