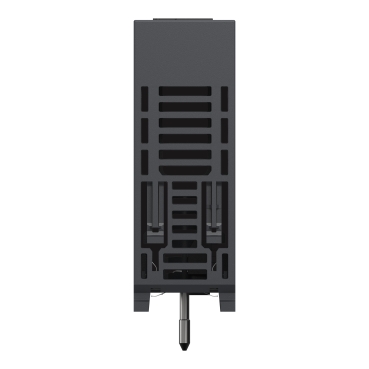

Schneider Electric BMXAMO0802

Analog high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA

MPN
BMXAMO0802
EAN
3595864081588
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMXAMO0802?

This analog non isolated output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 output channels. This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It is furnished with 20-way connector for electrical connection. This product is IP20 rated and offers 1505810 hours of MTBF. This analog module has a weight of 0.150kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.

Specifications

Specifications

Range of productModicon X80
Product or component typeAnalog output module
Electrical connection20 ways 1 connector
Isolation between channelsNon isolated
Analogue input resolution16 bits
Measurement error<= 0.25 % of full scale 0...60 °C, 0.1 % of full scale 25 °C
Temperature drift45 ppm/°C 0...20 mA, 45 ppm/°C 4...20 mA
Minimum crosstalk attenuation80 dB
Common mode rejection80 dB
Isolation voltage1400 V DC between channels and ground, 1400 V DC between channels and bus
Detection typeOpen circuit 4...20 mA, Short circuit 0...20 mA
Load impedance ohmic<= 350 Ohm 0...20 mA, <= 350 Ohm 4...20 mA
Output levelHigh level
Analogue output number8
Analogue output typeCurrent: 0...20 mA, Current: 4...20 mA
Analogue output resolution16 bits
SupplyInternal power supply via rack
Conversion time<= 4 ms
Maximum conversion value0...21 mA 0...20 mA, 0...21 mA 4...20 mA
Fallback modeConfigurable, Predefined
MTBF reliability1500000 H
Operating altitude0...2000 m, 2000...5000 m with derating factor
Status LED1 LED (green) RUN, 1 LED per channel (green) channel diagnostic, 1 LED (red) ERR, 1 LED (red) I/O
Net weight0.15 kg
Power consumption in W3.6 W 24 V DC typical, 3.9 W 24 V DC maximum, 0.35 W 3.3 V DC typical, 0.48 W 3.3 V DC maximum
Current consumption150 mA at 3.3 V DC, 135 mA at 24 V DC
Vibration resistance3 gn
Shock resistance30 gn
Ambient air temperature for storage-40…85 °C
Ambient air temperature for operation0…60 °C
Relative humidity5…95 % at 55 °C without condensation
IP degree of protectionIP20
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Product certificationsCE, RCM, CSA, EAC, Merchant Navy, UL
StandardsIEC 61010-2-201, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201
Protective treatmentStandard version

Packaging

Package 11 PCE, 11.600 cm × 11.000 cm × 5.300 cm (L × W × H), 169.000 g
Package 215 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 2.880 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

BMXAMO0802: frequently asked questions

When can BMXAMO0802 be shipped?

BMXAMO0802 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BMXAMO0802 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BMXAMO0802 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXAMO0802, subject to availability and destination.
