Schneider Electric

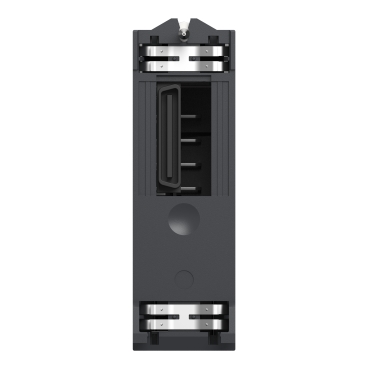

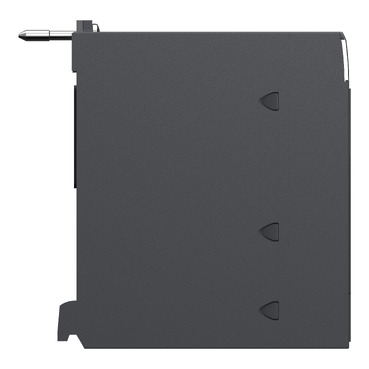

Schneider Electric BMXAMO0410H

Analog isolated high level output module, Modicon X80, 4 O, 0 to 20mA, 4 to 20mA, 10V positive or negative, severe environment

MPN
BMXAMO0410H
EAN
3595864156637
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMXAMO0410H?

This analog isolated output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 4 output channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It is furnished with 20-way connector for electrical connection. This product is IP20 rated and offers 1058335 hours of MTBF. This analog module has a weight of 0.150kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.

Specifications

Specifications

Range of productModicon X80
Product or component typeAnalog output module
Product specific applicationFor severe environments
Electrical connection20 ways 1 connector
Isolation between channelsIsolated
Measurement error0.1 % of full scale 25 °C, <= 0.45 % of full scale - 25...70 °C
Temperature drift45 ppm/°C +/- 10 V, 45 ppm/°C 0...20 mA, 45 ppm/°C 4...20 mA
Minimum crosstalk attenuation80 dB
Common mode rejection100 dB
Isolation voltage1400 V DC between channels and ground, 1400 V DC between channels and bus, 750 V DC between channels
Detection typeOpen circuit 0...20 mA, Open circuit 4...20 mA, Short circuit +/- 10 V
Load impedance ohmic>= 1000 Ohm +/- 10 V, <= 500 Ohm 0...20 mA, <= 500 Ohm 4...20 mA
Output levelHigh level
Analogue output number4
Analogue output typeCurrent: 0...20 mA, Current: 4...20 mA, Voltage: +/- 10 V
Analogue output resolution15 bits + sign
SupplyInternal power supply via rack
Conversion time<= 1 ms
Maximum conversion value0...21 mA 0...20 mA, 0...21 mA 4...20 mA, +/- 10.5 V +/- 10 V
Fallback modeConfigurable, Predefined
MTBF reliability1000000 H
Operating altitude0...2000 m, 2000...5000 m with derating factor
Status LED1 LED (green) RUN, 1 LED per channel (green) channel diagnostic, 1 LED (red) ERR, 1 LED (red) I/O
Net weight0.15 kg
Power consumption in W3 W 24 V DC typical, 3.6 W 24 V DC maximum, 0.45 W 3.3 V DC typical, 0.51 W 3.3 V DC maximum
Current consumption150 mA at 3.3 V DC, 140 mA at 24 V DC
Vibration resistance3 gn
Shock resistance30 gn
Ambient air temperature for storage-40…85 °C
Ambient air temperature for operation-25…70 °C
Relative humidity5…95 % at 55 °C without condensation
IP degree of protectionIP20
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Product certificationsCE, RCM, CSA, EAC, Merchant Navy, UL, ATEX, IEC-Ex
StandardsIEC 61010-2-201, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201
Environmental characteristicGas resistant class Gx, Gas resistant class 3C4, Dust resistant class 3S4, Sand resistant class 3S4, Salt resistant level 2, Mold growth resistant class 3B2, Fungal spore resistant class 3B2, Hazardous location
Protective treatmentConformal coating

Packaging

Package 11 PCE, 11.800 cm × 11.600 cm × 5.500 cm (L × W × H), 222.000 g
Package 215 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 3.624 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

BMXAMO0410H: frequently asked questions

When can BMXAMO0410H be shipped?

BMXAMO0410H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BMXAMO0410H in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BMXAMO0410H and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXAMO0410H, subject to availability and destination.
