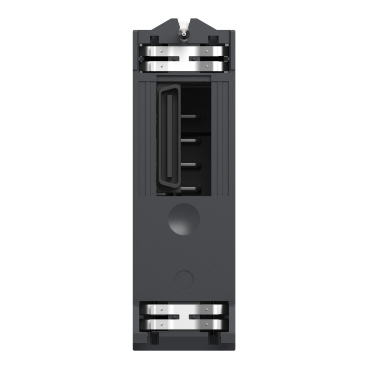

Schneider Electric BMXAMM0600H

Analog high level IO module, Modicon X80, 4 I, 2 O, 0 to 20mA, 4 to 20mA, 10V positive or negative, severe environment

MPN
BMXAMM0600H
EAN
3595864025537
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMXAMM0600H?

This analog non isolated input and output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 4 input channels and 2 output channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It is furnished with 20-way connector for electrical connection. There is no isolation channels between channels and ground at 1400V DC, channels and bus at 1400V DC and group of I/O channels at 750V DC. This product is IP20 rated and offers 1364412 hours of MTBF. This analog module has a weight of 0.155kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.

Specifications

Specifications

Range of productModicon X80
Product or component typeMixed analog I/O module
Product specific applicationFor severe environments
Electrical connection20 ways 1 connector
Isolation between channelsNon isolated
Input levelHigh level
Analogue input number4
Analogue input typeCurrent 0...20 mA, Current 4...20 mA, Voltage +/- 10 V, Voltage 0...10 V, Voltage 0...5 V, Voltage 1...5 V
Analogue input resolution12 bits 0...20 mA, 12 bits 0...5 V, 12 bits 1...5 V, 12 bits 4...20 mA, 13 bits 0...10 V, 14 bits +/- 10 V
Permitted overload on inputs+/- 30 mA 0...20 mA, +/- 30 mA 4...20 mA, +/- 30 V +/- 10 V, +/- 30 V 0...10 V, +/- 30 V 0...5 V, +/- 30 V 1...5 V
Input impedance250 Ohm
Precision of internal conversion resistor0.1 % - 15 ppm/°C
Type of filterFirst order digital filtering by firmware
Fast read cycle time1 ms + 1 ms x number of channels used
Nominal read cycle time5 ms for 4 channels
Measurement error0.25 % of full scale 0...20 mA 25 °C output, 0.25 % of full scale 4...20 mA 25 °C output, 0.25 % of full scale +/- 10 V 25 °C output, 0.25 % of full scale +/- 10 V 25 °C input, 0.25 % of full scale 0...10 V 25 °C input, 0.25 % of full scale 0...5 V 25 °C input, 0.25 % of full scale 1...5 V 25 °C input, 0.35 % of full scale 0...20 mA 25 °C input, 0.35 % of full scale 4...20 mA 25 °C input, <= 0.4 % of full scale +/- 10 V - 25...70 °C input, <= 0.4 % of full scale 0...10 V - 25...70 °C input, <= 0.4 % of full scale 0...5 V - 25...70 °C input, <= 0.4 % of full scale 1...5 V - 25...70 °C input, <= 0.6 % of full scale 0...20 mA - 25...70 °C input, <= 0.6 % of full scale 4...20 mA - 25...70 °C input, <= 0.8 % of full scale +/- 10 V - 25...70 °C output, <= 0.8 % of full scale 0...20 mA - 25...70 °C output, <= 0.8 % of full scale 4...20 mA - 25...70 °C output
Temperature drift100 ppm/°C +/- 10 V output, 100 ppm/°C 0...20 mA output, 100 ppm/°C 4...20 mA output, 30 ppm/°C +/- 10 V input, 30 ppm/°C 0...10 V input, 30 ppm/°C 0...5 V input, 30 ppm/°C 1...5 V input, 50 ppm/°C 0...20 mA input, 50 ppm/°C 4...20 mA input
RecalibrationInternal on inputs, Factory calibrated on outputs
Minimum crosstalk attenuation70 dB
Common mode rejection80 dB
Isolation voltage1400 V DC between channels and ground, 1400 V DC between channels and bus, 750 V DC between group of I/O channels
Output levelHigh level
Analogue output number2
Analogue output typeCurrent: 0...20 mA, Current: 4...20 mA, Voltage: +/- 10 V
Analogue output resolution11 bits, 0...20 mA, 11 bits, 4...20 mA, 12 bits, +/- 10 V
Conversion time<= 2 ms
Maximum conversion value+/- 11.25 V +/- 10 V output, +/- 11.25 V +/- 10 V input, 0...30 mA 0...20 mA input, 0...30 mA 4...20 mA input, +/- 11.25 V 0...10 V input, +/- 11.25 V 0...5 V input, +/- 11.25 V 1...5 V input, 0...24 mA 0...20 mA output, 0...24 mA 4...20 mA output
Fallback modePredefined, Configurable
MTBF reliability1400000 H
Operating altitude0...2000 m, 2000...5000 m with derating factor
Status LED1 LED (green) RUN, 1 LED per channel (green) channel diagnostic, 1 LED (red) ERR, 1 LED (red) I/O
Net weight0.155 kg
Power consumption in W2.6 W 24 V DC typical, 3.2 W 24 V DC maximum, 0.35 W 3.3 V DC typical, 0.48 W 3.3 V DC maximum
Current consumption240 mA at 3.3 V DC
Vibration resistance3 gn
Shock resistance30 gn
Ambient air temperature for storage-40…85 °C
Ambient air temperature for operation-25…70 °C
Relative humidity5…95 % at 55 °C without condensation
IP degree of protectionIP20
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Product certificationsCE, RCM, CSA, EAC, Merchant Navy, UL, ATEX, IEC-Ex
StandardsIEC 61010-2-201, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201
Environmental characteristicGas resistant class Gx, Gas resistant class 3C4, Dust resistant class 3S4, Sand resistant class 3S4, Salt resistant level 2, Mold growth resistant class 3B2, Fungal spore resistant class 3B2, Hazardous location
Protective treatmentConformal coating
