Home / Schneider Electric / Management Options and Cables / Schneider Electric AP9614
Schneider Electric

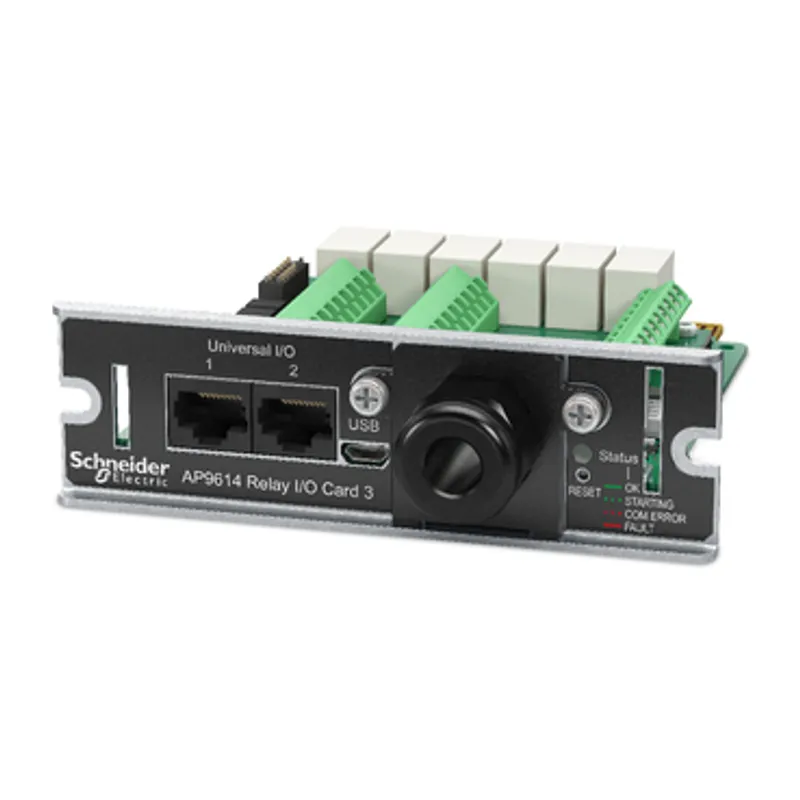

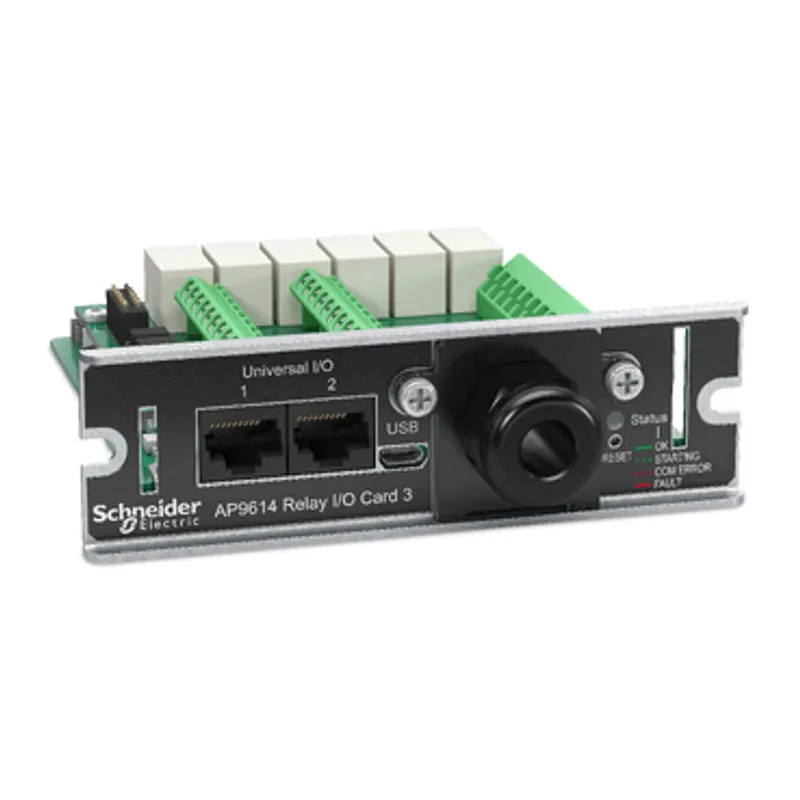

Schneider Electric AP9614

Dry contact, Management Options, Dry Contact I/O Card, monitor external UPS environmental sensors, output relays, and input contacts

MPN
AP9614
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric AP9614?

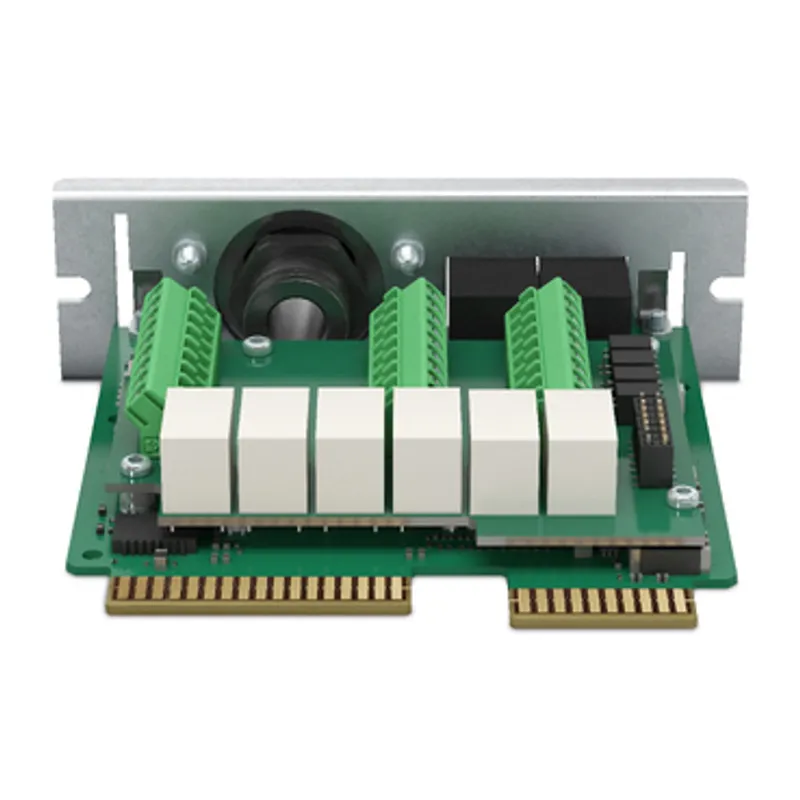

The Dry Contact I/O Card provides 6 configurable output relays and 4 input contacts to monitor external triggers and initiate actions on external devices. The 2 Universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O Accessory. The Dry Contact I/O Accessory provides 2 additional dry contact input and relay output interfaces. Connect the included micro-USB cable to the Card and a PC to use the dynamic Web UI. Configure UPS settings and output relay, input contact and environmental sensor actions based on status changes or UPS events.

Specifications

Specifications

Range of productManagement Options and Cables
Provided equipmentUser manual, USB cable
Product or component typeDry contact
Number of rack unit0U
Cable length0.159 m
Rated voltage24 V
[In] rated current0…200 mA
Power supply typeSelf powered via SmartSlot
Height3.8 cm
Width12.1 cm
Depth12.8 cm
Net weight0.20 kg
Mounting modeNot rack-mountable
StandardsEN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, FCC part 15 class A, FCC CFR 47 part 15, EN 61000-6-3 (2007), BS EN 61000-6-3, EN 55032, BS EN 55032, VCCI class A, CISPR 32, EN/IEC 61000-3-2, AS/NZS CISPR 32, EN 61000-6-1 (2007), EN 55035, BS EN 55024, IEC 62040-2, BS EN 62040-2, EN 61326-2, BS EN 61326-2, BS EN 61000-4-2, BS EN 61000-4-3, BS EN 61000-4-4, EN 61000-4-5, BS EN 61000-4-5, BS EN 61000-4-6, EN 61000-4-8, BS EN 61000-4-8, EN 61000-4-11, BS EN 61000-4-11, BS EN 55035, EN 62040-2, ICES-003 class A, EN 61000-6-3, BS EN 61000-3-2, BS EN 61000-3-3, AS/NZS EN 61000-3-2:2023, AS/NZS EN 61000-3-3:2023
Ambient air temperature for operation0…40 °C
Operating altitude0...10000 ft, 0...50000 ft
Ambient air temperature for storage-15…65 °C
Storage altitude0…15240 m

Packaging

Package 11 PCE, 23.8 cm × 16.5 cm × 5.1 cm (L × W × H), 440 g
