Schneider Electric
AP94VMTRLSoftware, EcoStruxure IT Data Center Expert, virtual appliance, remote monitoring, management
Schneider Electric AP9544
Device monitoring and management, Network Management Cards, NMC3 for Easy UPS On-Line, secure remote UPS monitoring and management
- MPN
- AP9544
- Category
- Network Management Cards
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

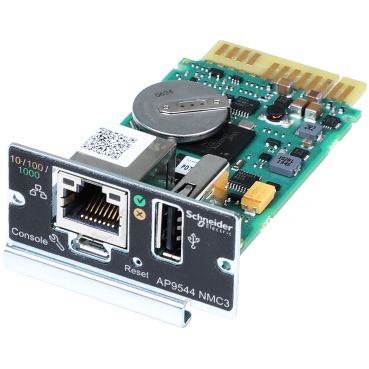

What is the Schneider Electric AP9544?
The Network Management Card 3 for Easy UPS On-Line enables essential and secure remote monitoring and management of one Easy UPS On-Line UPS, giving you mission-critical visibility. The high-speed processor provides a fast and powerful experience offering Gigabit Ethernet connectivity and simultaneous multiple user logins to the easy-to-use web user interface or Command Line Interface. Take proactive actions and troubleshoot easily with detailed data and event logging for timely resolution. Advanced technology and features keep sensitive data secure with the newest and best-in-class security compliance. The Network Management Card includes a 1-year Secure NMC Subscription which provides access to the latest firmware to ensure the most resilient, secure and sustainable IT infrastructure. Integrates with EcoStruxure IT for efficient management of your equipment, PowerChute Network Shutdown for graceful shutdown, unattended start-up and VM migration options for disaster avoidance and business continuity, and with other SNMP-enabled systems.
Specifications
Specifications
| Presentation | The Network Management Card for Easy UPS On-Line (AP9544) enables secure remote monitoring and control of one Easy UPS Online through the easy-to-use web browser interface, via EcoStruxure™ IT Software or another SNMP-enabled system., A 12-month Secure NMC Subscription, that allows the customer to access future firmware updates, is included with the purchase of the card*. Upon expiration of the provided Secure NMC Subscription the purchase of a new Secure NMC Subscription is required to access future firmware updates., *The NMC Firmware must be V2.5 or later. Find the latest Firmware in the Software and Firmware section below. |
| Range of product | Network Management Cards |
| Range compatibility | Easy UPS On-Line, Easy UPS 1 Ph On-Line |
| Product or component type | Device monitoring and management |
| Provided equipment | Micro-USB cable, Installation manual |
| Number of input phases | 1 |
| Standards | CISPR 32, VCCI class A, ICES-003, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN/IEC 62040-2 |
| Net weight | 0.05 kg |
| Width | 5.2 cm |
| Height | 4.4 cm |
| Depth | 8.0 cm |
| Product certifications | FCC Class A, AS/NZS, UK PSTI |
| Storage Relative Humidity | 0…95 % |
| Relative humidity | 0…95 % |
| Ambient air temperature for storage | -15…65 °C |
| Ambient air temperature for operation | -5…45 °C |
| Storage altitude | 0…15240 m |
| Operating altitude | 0...10000 ft |
| Communication network type | 10/100/1000BASE-T |
| Authentication | Radius |
| Communication port protocol | HTTP over secure sockets, Layer (HTTPS), SSH, FTP, HTTP, SNMP, DHCP, BOOTP (Bootstrap Protocol), TCP/IP |
Packaging
| Package 1 | 1 PCE, 23.000 cm × 16.500 cm × 4.600 cm (L × W × H), 284.000 g |
| Package 2 | 44 S06, 80.000 cm × 60.000 cm × 68.000 cm (L × W × H), 21.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
AP9544: frequently asked questions
When can AP9544 be shipped?
AP9544 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AP9544 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AP9544 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AP9544, subject to availability and destination.
