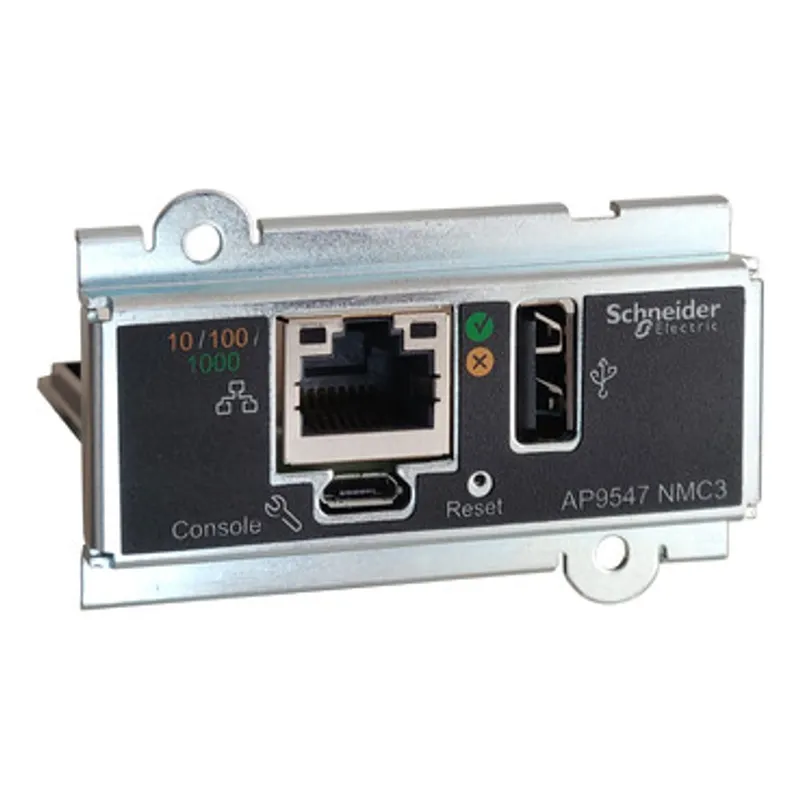

Schneider Electric AP9547
Device monitoring and management, Network Management Cards, NMC3 for Easy UPS 3S, 3M, 3L, Galaxy 3L & Galaxy PW, remote UPS monitoring and management
- MPN
- AP9547
- Category
- Network Management Cards
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric AP9547?
The Network Management Card 3 for Easy UPS 3 Series enables essential and secure remote monitoring and management of one Easy UPS 3S, Easy UPS 3S Pro, Easy UPS 3M, Easy UPS 3L, Galaxy 3L or Galaxy PW 2nd Gen UPS, giving you mission-critical visibility. AP9547 is included with and pre-installed in all new Easy UPS 3S Pro, Easy UPS 3M, Easy UPS 3L and Galaxy 3L. AP9547 is an optional purchase for Easy UPS 3S and Galaxy PW 2nd Gen. AP9547 can be retrofitted in all supported UPSs. The high-speed processor provides a fast and powerful experience offering Gigabit Ethernet connectivity and simultaneous multiple user logins to the easy-to-use web user interface or Command Line Interface. Take proactive actions and troubleshoot easily with detailed data and event logging for timely resolution. Advanced technology and features keep sensitive data secure with the newest and best-in-class security compliance. To help reduce the connected devices exposure to cyber threats, the Secure NMC System giving access to IEC 62443-4-2 compliant NMC firmware updates, is included for the first year with the purchase of The Network Management Card. After expiration of the 1-year included Secure NMC System, the purchase of an Advantage Plan (Plus, Prime, Ultra), EcoCare membership with onsite maintenance visits for the UPS or a stand-alone onsite maintenance visit for the UPS is required to get future NMC firmware updates. Integrates with EcoStruxure IT for efficient management of your equipment, PowerChute Network Shutdown for graceful shutdown, unattended start-up and VM migration options for disaster avoidance and business continuity, and with other SNMP-enabled systems.
Specifications
Specifications
| Presentation | The Network Management Card for Easy UPS 3 Series (AP9547) enables secure remote monitoring and control of one Easy UPS 3S, Easy UPS 3S Pro, Easy UPS 3M or Easy UPS 3L through the easy-to-use web browser interface, via EcoStruxure™ IT Software or another SNMP-enabled system., A 1-year Secure NMC System with IEC 62443-4-2 compliant NMC firmware updates is included with the purchase of the Network Management Card. After expiration of the 1-year included Secure NMC System, the purchase of an Advantage Plan (Plus, Prime, Ultra) or EcoCare membership with onsite maintenance visits for the UPS is required to get future NMC firmware updates. |
| Range of product | Network Management Cards |
| Range compatibility | Easy UPS 3S, Easy UPS 3M, Easy UPS 3L, Easy UPS 3S Pro, Galaxy PW 2nd generation |
| Product or component type | Device monitoring and management |
| Provided equipment | Micro-USB cable, Installation manual |
| Number of input phases | 3 |
| Standards | CISPR 32, VCCI class A, ICES-003, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN/IEC 62040-2 |
| Net weight | 0.05 kg |
| Width | 5.2 cm |
| Height | 4.4 cm |
| Depth | 8.0 cm |
| Product certifications | FCC Class A, AS/NZS |
| Storage Relative Humidity | 0…95 % |
| Relative humidity | 0…95 % |
| Ambient air temperature for storage | -15…65 °C |
| Ambient air temperature for operation | -15…65 °C |
| Storage altitude | 0…15240 m |
| Operating altitude | 0...10000 ft |
| Communication network type | 10/100/1000BASE-T |
| Authentication | Radius |
| Communication port protocol | HTTP over secure sockets, Layer (HTTPS), SSH, FTP, HTTP, SNMP, DHCP, BOOTP (Bootstrap Protocol), TCP/IP |
Packaging
| Package 1 | 1 PCE, 24.000 cm × 16.500 cm × 5.000 cm (L × W × H), 314.000 g |
| Package 2 | 44 P06, 80.000 cm × 60.000 cm × 55.000 cm (L × W × H), 17.000 kg |
