Schneider Electric AP9520TH
Wired, Sensor, NetBotz, Temperature & Humidity Display
- MPN
- AP9520TH
- Category
- NetBotz™
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

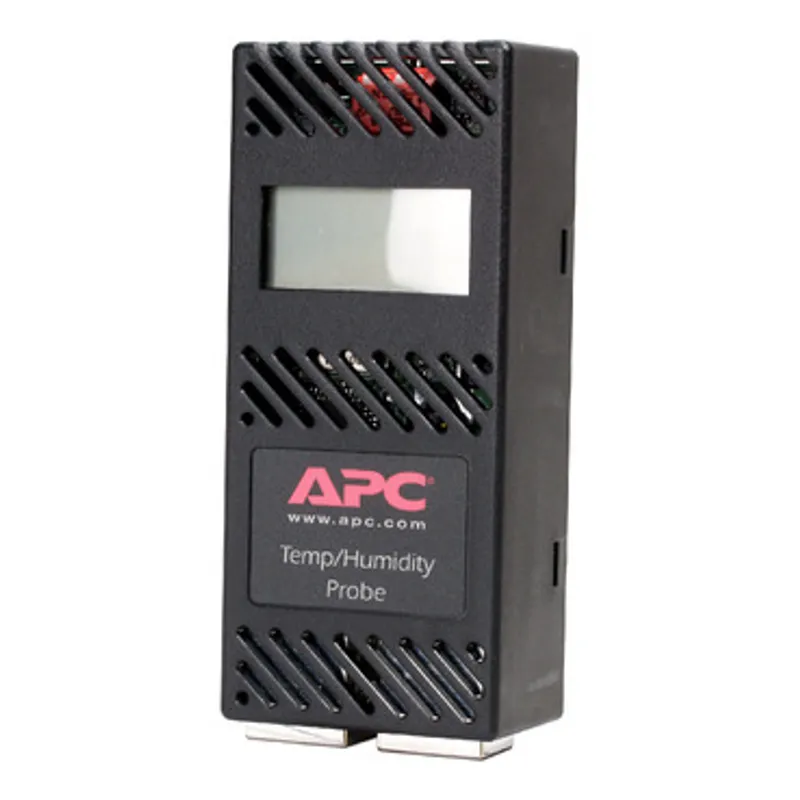

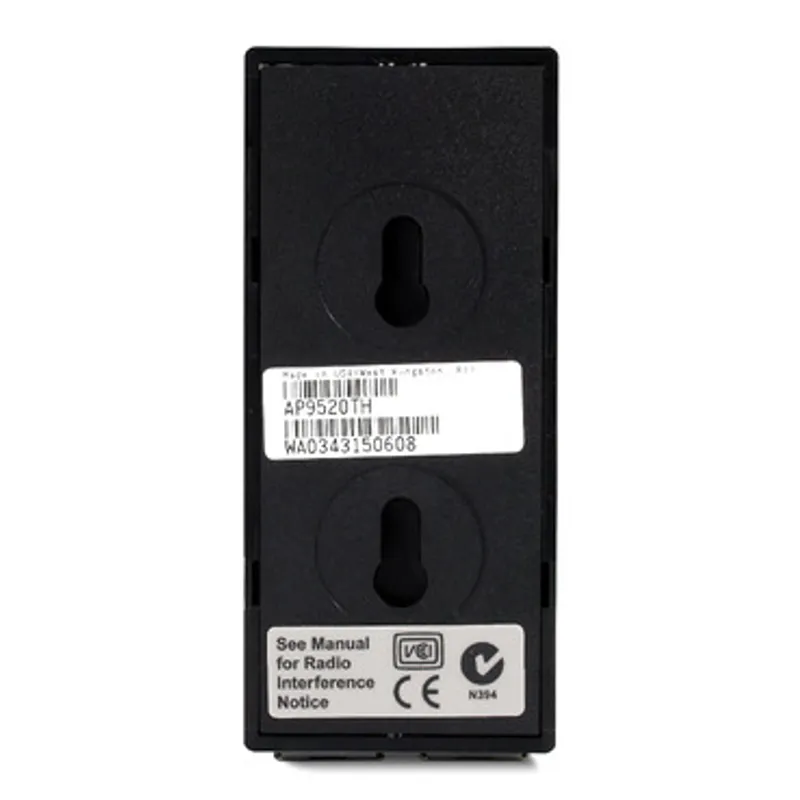

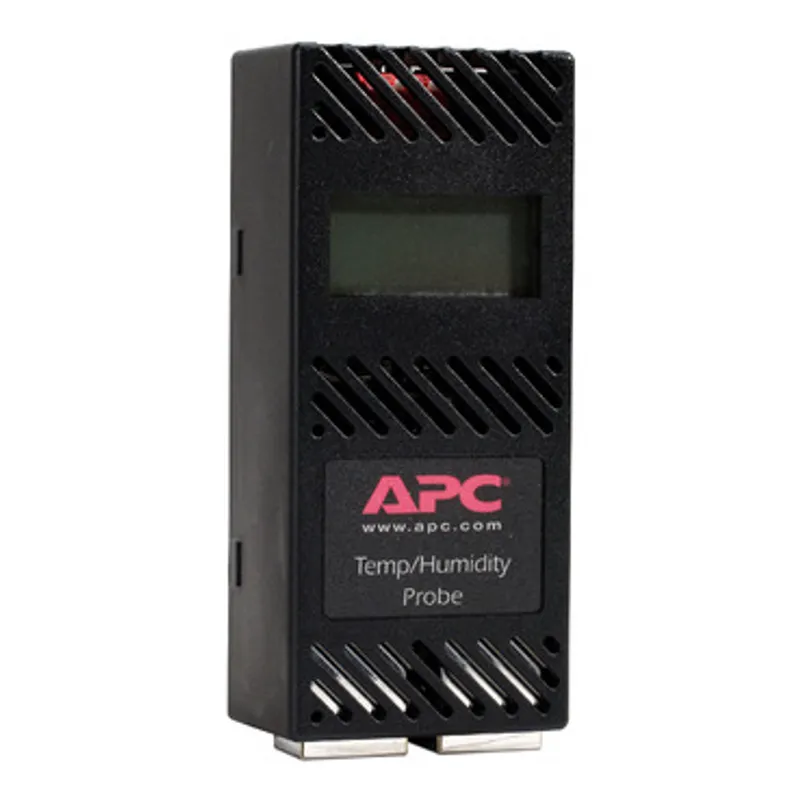

What is the Schneider Electric AP9520TH?

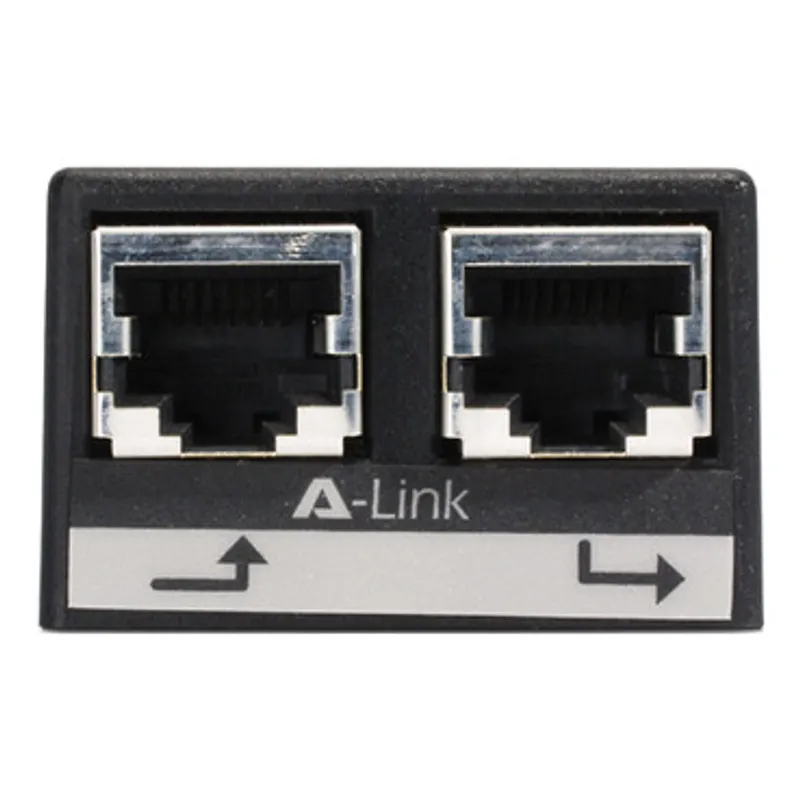

APC A-Link Sensor that monitors temperature and humidity in your Data Center or Network Closet. Connect to up to 8 sensors via proprietary NetBotz A-Link connection Display provides visual reporting of temperature levels. Compatible with all current and legacy generation 200, 400,500 and 700 series appliances
Specifications
Specifications
| Presentation | APC A-Link Sensor that monitors temperature and humidity in your Data Center or Network Closet. Display provides visual reporting of temperature levels. Compatible with select NetBotz appliances. |
| Product or component type | Temperature and humidity sensor |
| Range of product | Netbotz |
| Number of rack unit | 0U |
| Provided equipment | Installation guide, Mounting pads |
| Colour | Black |
| Height | 9.9 cm |
| Width | 4.3 cm |
| Depth | 2.8 cm |
| Net weight | 0.08 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Product certifications | AS/NZS 3548 (C-Tick) class A, CE, VCCI |
| Standards | EN 55022 class A, EN 55024, FCC part 15 class A, ICES-003 |
| Ambient air temperature for operation | 0…45 °C |
| Operating altitude | 0...10000 ft |
| Relative humidity | 0…95 % |
| Ambient air temperature for storage | -40…65 °C |
| Storage altitude | 0…15240 m |
| Storage Relative Humidity | 0…95 % |
Packaging
| Package 1 | 1 PCE, 16.5 cm × 5.1 cm × 22.9 cm (L × W × H), 0.92 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
AP9520TH: frequently asked questions
When can AP9520TH be shipped?
AP9520TH is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AP9520TH in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AP9520TH and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AP9520TH, subject to availability and destination.
