Schneider Electric AP9566
APC NetShelter Basic Rack PDU, 1U, 16A, 208V, 12 C13 outlets
- MPN
- AP9566
- Category
- APC NetShelter Basic Rack PDUs
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric AP9566?

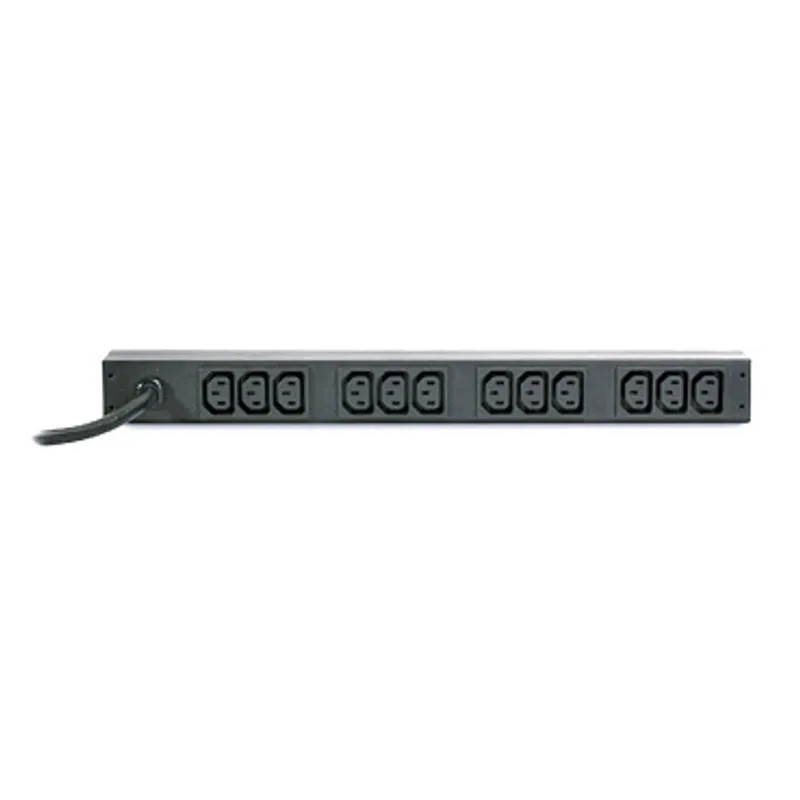

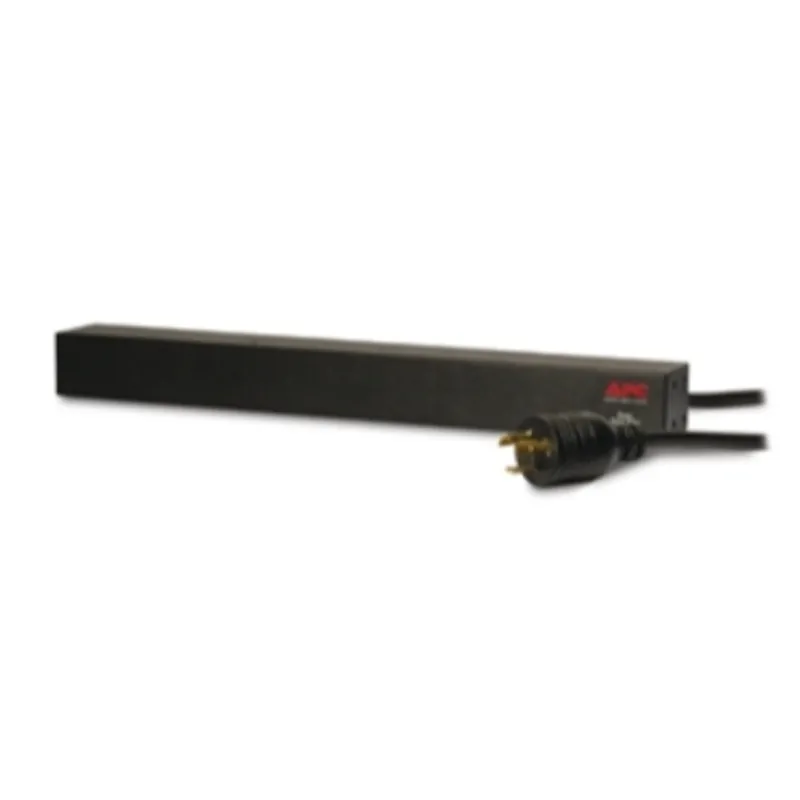

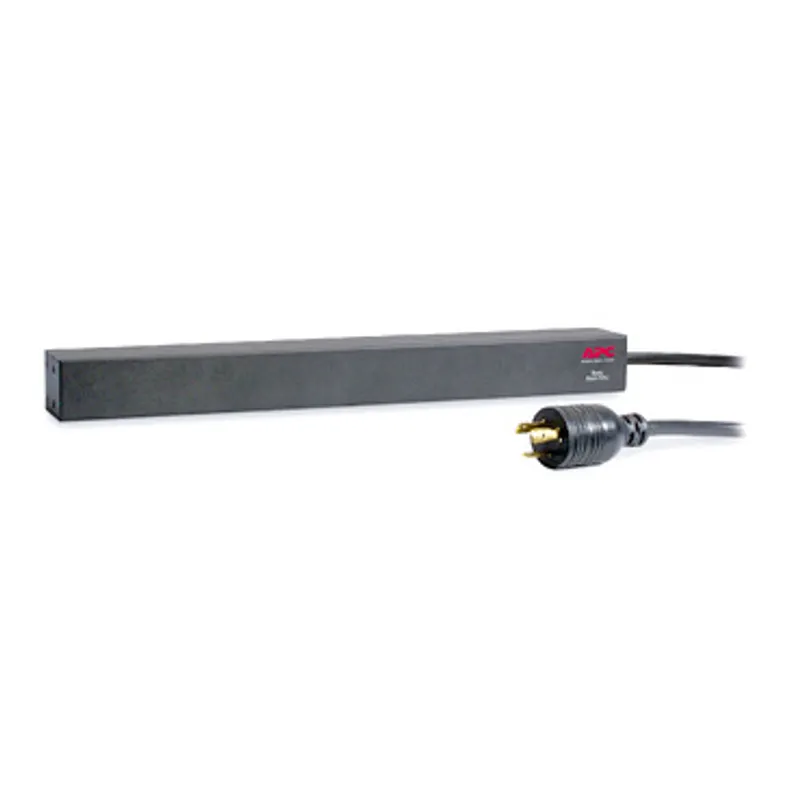

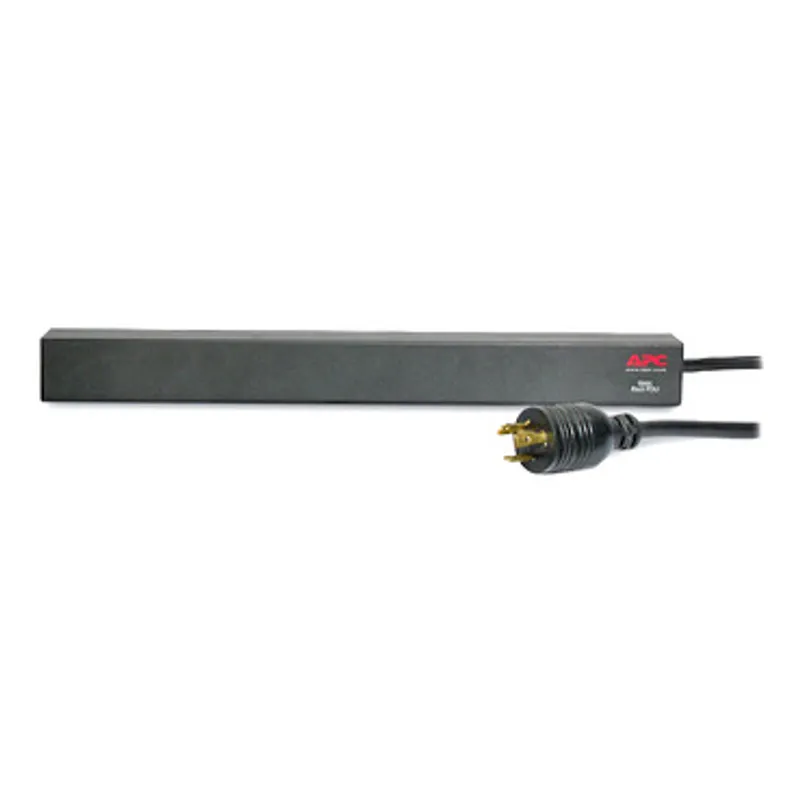

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 20A and operates at 208V. The PDU features 12 IEC 60320 C13 outlets, providing ample connections for IT equipment. It includes a 12-foot power cord with a NEMA L6-20P plug. The unit is designed for reliable power distribution and includes an installation guide and rack mounting brackets.
Specifications
Specifications
| Color | Black |
| Product or Component Type | PDU |
| PDU Type | Basic |
| Cord length | 11.98 ft (3.65 m) |
| Number of cables | 1 |
| Provided Equipment | Installation guide, Rack Mounting brackets |
| Input Voltage | 200 V, 208 V, 230 V |
| Height | 1.7 in (44 mm) |
| Width | 17.6 in (447 mm) |
| Output Voltage | 208 V |
| Depth | 2.2 in (57 mm) |
| Net Weight | 5.5 lb(US) (2.5 kg) |
| Mounting Location | Front, Rear |
| Mounting preference | No preference |
| Input Plug Type | NEMA L6-20P |
| Mounting Mode | Rack-mounted |
| Rack units | 1U |
| Mounting position | Horizontal |
| Line Rated Current | 16 A |
| Input current limits | 20 A |
| Load Capacity | 3328 VA |
| Input Frequency | 50/60 Hz |
| Outlet type and quantity | 12 IEC 60320 C13 |
| Product Certifications | cUL Listed, UL Listed |
| Standards | UL 60950 |
| Ambient air temperature for operation | 32…113 °F (0…45 °C) |
| Relative Humidity | 0…95 % |
| Operating altitude | 0...10000 ft |
| Ambient Air Temperature for Storage | -13…149 °F (-25…65 °C) |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…50000 ft (0…15240 m) |
| GTIN | 731304213048 |
| Nbr. of units in pkg. | 1 |
| Package weight(Lbs) | 8.02 lb(US) (3.64 kg) |
Packaging
| Package 1 | PCE, 18.3 in (46.4 cm) × 9.02 in (22.9 cm) × 2.8 in (7 cm) (L × W × H) |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
AP9566: frequently asked questions
When can AP9566 be shipped?
AP9566 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AP9566 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AP9566 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AP9566, subject to availability and destination.
