What is the Schneider Electric 170AAO92100?

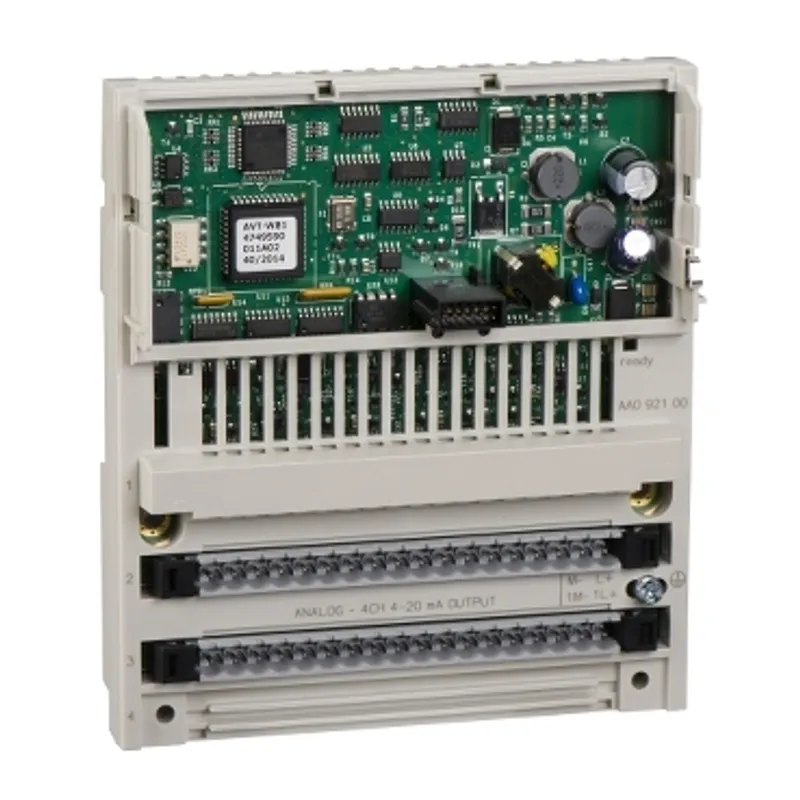

This output base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This analog output base offers 4 outputs with a full 16bit signed resolution. It offers analog output ranges from ±10V, 4mA to 20mA. There is an isolation between channels and ground at 500V AC. It features 4 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Specifications

Specifications

Range of productModicon Momentum automation platform
Product or component typeAnalogue output base
Analogue output number4
Data formatFull 16 bits signed
Analogue output range+/- 10 V 12 bits + sign >= 1 kOhm, 4...20 mA 12 bits + sign <= 0.6 kOhm
Maximum load capacitance1 µF
Absolute accuracy error+/- 0.2 % of full scale +/- 10 V 25 °C, +/- 0.25 % full scale +/- 10 V 60 °C, +/- 0.4 % of full scale 4...20 mA 25 °C, +/- 0.5 % of full scale 4...20 mA 60 °C
Temperature drift10 %oFS/°C +/- 10 V 60 °C, 30 %oFS/°C 4...20 mA 60 °C
Update time2 ms
Full scale10 V +/- 10 V, 2 mA 4...20 mA
Fail stateHold, Reset to full scale, Reset to zero
Isolation between channels and ground500 V AC for 1 minute
Maximum power dissipation in W8.5 W
Protection typeInternal 2 A slow-blow
Output short-circuit protectionWith in voltage circuit
External power requirement+/- 30 V DC, 24 V DC
Permissible common mode voltage250 V 47...63 Hz AC between channels to ground, 250 V 47...63 Hz DC
Reverse polarity protectionInternal
MarkingCE
Local signalling4 LEDs for channel status
Current consumption150 mA at 24 V DC actuator, 530 mA at 24 V DC base
Module formatStandard
Height125 mm
Depth47.5 mm
Width141.5 mm
Net weight0.215 kg
Product certificationsUL, CSA
Protective treatmentTC
Resistance to electrostatic discharge4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation0…60 °C
Ambient air temperature for storage-40…85 °C
Relative humidity95 % without condensation
Operating altitude<= 5000 m

Packaging

Package 11 PCE, 26.0 cm × 18.0 cm × 5.5 cm (L × W × H), 375.0 g
Package 210 S03, 40 cm × 30 cm × 30 cm (L × W × H), 3.75 kg
Package 380 P06, 80.0 cm × 40.0 cm × 75.0 cm (L × W × H), 45 kg
