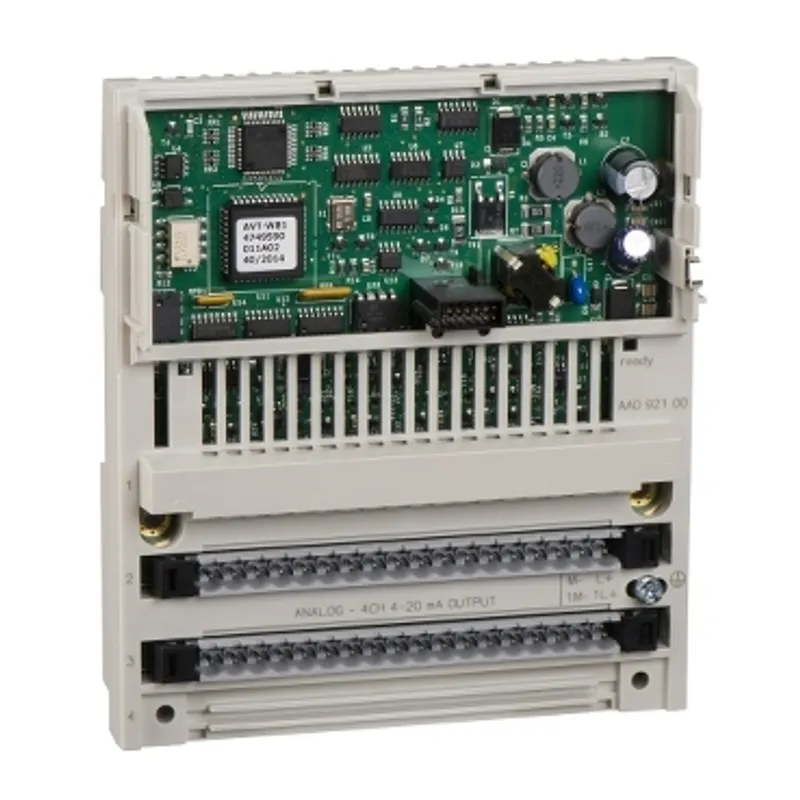

distributed analog output Modicon Momentum - 4 Output - 0..20 mA

Name: Schneider Electric 170AAO12000 – distributed analog output Modicon Momentum - 4 Output - 0..20 mA
Brand: Schneider Electric
SKU: 170AAO12000

MPN: 170AAO12000 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon Momentum
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.22 kg

Shipping & availability

When can 170AAO12000 be shipped?

170AAO12000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 170AAO12000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 170AAO12000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 170AAO12000, subject to availability and destination.

Schneider Electric distributed analog output Modicon Momentum - 4 Output - 0..20 mA, manufacturer part number 170AAO12000. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Range of product	Modicon Momentum automation platform
Product or component type	Analogue output base
Analogue output number	4
Data format	Full 16 bits signed
Analogue output range	+/- 10 V 12 bits + sign >= 1 kOhm, 0...20 mA 12 bits + sign <= 0.6 kOhm
Maximum load capacitance	1 µF
Absolute accuracy error	+/- 0.2 % of full scale +/- 10 V 25 °C, +/- 0.25 % full scale +/- 10 V 60 °C, +/- 0.3 % of full scale 0...20 mA 25 °C, +/- 0.4 % of full scale 0...20 mA 60 °C
Temperature drift	10 %oFS/°C +/- 10 V 60 °C, 30 %oFS/°C 0...20 mA 60 °C
Update time	2 ms
Full scale	10 V +/- 10 V, 2 mA 0...20 mA
Fail state	Reset to full scale, Hold, Reset to zero
Isolation between channels and ground	500 V AC for 1 minute
Maximum power dissipation in W	8.5 W
Protection type	Internal 2 A slow-blow
Output short-circuit protection	With in voltage circuit
External power requirement	+/- 30 V DC, 24 V DC
Permissible common mode voltage	250 V 47...63 Hz AC between channels to ground, 250 V 47...63 Hz DC
Reverse polarity protection	Internal
Marking	CE
Local signalling	4 LEDs for channel status
Current consumption	150 mA at 24 V DC actuator, 530 mA at 24 V DC base
Module format	Standard
Height	125 mm
Depth	47.5 mm
Width	141.5 mm
Net weight	0.215 kg
Product certifications	UL, CSA
Protective treatment	TC
Resistance to electrostatic discharge	4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields	10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-40…85 °C
Relative humidity	95 % without condensation
Operating altitude	<= 5000 m
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.500 cm
Package 1 Width	18.000 cm
Package 1 Length	25.500 cm
Package 1 Weight	380.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	10
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	4.226 kg
Warranty	18 months
