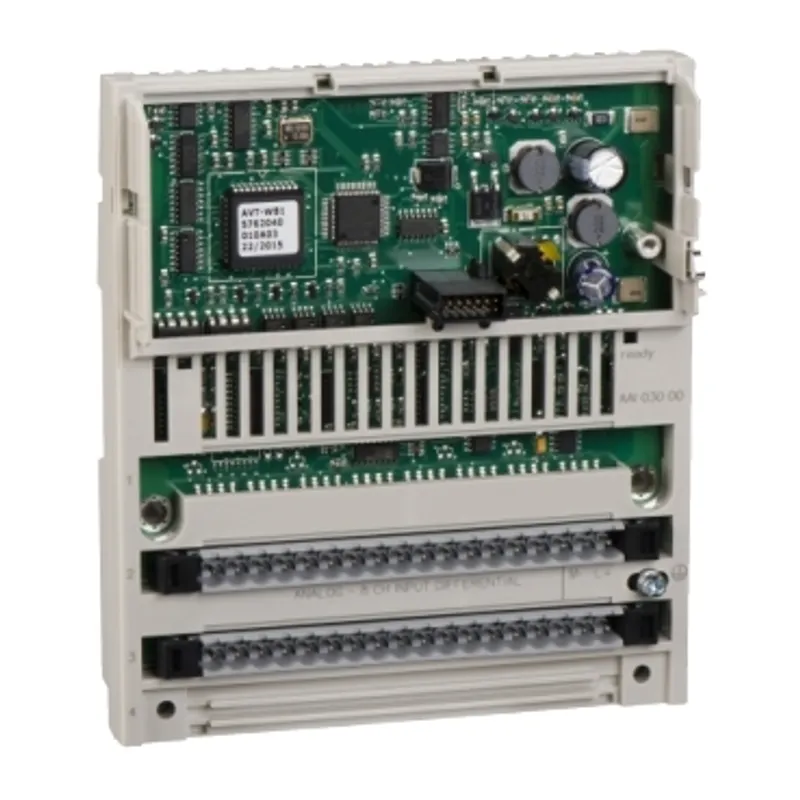

Schneider Electric 170AAI52040

Distributed analog input Modicon Momentum - 4 Input

MPN
170AAI52040
EAN
3389110886498
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric 170AAI52040?

This input base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This analog input base offers 4 inputs with a full 16bit signed resolution. It offers differential analog input ranges from ±100mV, ±25mV. There is an isolation between channels and bus, channels and ground at 500V AC. It is furnished with 2 removable terminal blocks for electrical connection. It features 4 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Specifications

Specifications

Range of productModicon Momentum automation platform
Product or component typeAnalogue input base
Analogue input number4
Analogue input typeDifferential
Analogue input range+/- 100 mV 15 bits + sign > 10000 kOhm, +/- 25 mV 15 bits + sign > 10000 kOhm
Thermocouple typeThermocouple E, Thermocouple S, Thermocouple K, Thermocouple N, Thermocouple B, Thermocouple R, Thermocouple J, Thermocouple T
Data formatFull 16 bits signed
Absolute accuracy error+/- 21 µV 25 °C +/- 25 mV, +/- 27 µV 25 °C +/- 100 mV, +/- 46 µV 60 °C +/- 25 mV, +/- 94 µV 60 °C +/- 100 mV
Temperature probe typeNi 100 0.125 mA +/- 25 mV, Ni 1000 0.125 mA +/- 100 mV, Pt 100 0.125 mA +/- 25 mV, Pt 1000 0.125 mA +/- 100 mV
Update time500 ms
Isolation between channels400 V DC
Isolation between channels and ground500 V AC for 1 minute
Isolation between supply and ground500 V for 1 minute
Permissible common mode voltage100 V DC between channels to ground, 115 V AC single or three phases between channels, 200 V DC between channels, 250 V AC between channels to ground, 250 V AC single phase between channels
Common mode rejection120 dB DC between channels, 130 dB 50 Hz AC between channels, 135 dB DC between channels to ground, 140 dB 60 Hz AC between channels, 145 dB 50 Hz AC between channels to ground, 155 dB 60 Hz AC between channels to ground
Serial mode rejection35 dB 50 Hz AC, 45 dB 60 Hz AC
External power requirement+/- 30 V DC
Maximum power dissipation in W5.5 W
Reverse polarity protectionInternal
Protection typeInternal 2 A slow-blow
Associated fuse rating500 mA, fast blow
MarkingCE
Local signalling4 LEDs for channel status
Electrical connection2 connectors for removable terminal blocks
Current consumption305 mA at 24 V DC
Depth47.5 mm
Height125 mm
Width141.5 mm
Net weight0.215 kg
Product certificationsFM Class 1 Division 2, CSA, UL
Protective treatmentTC
Resistance to electrostatic discharge4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation0…60 °C
Ambient air temperature for storage-40…85 °C
Relative humidity95 % without condensation
Operating altitude<= 5000 m

Packaging

Package 11 PCE, 26.000 cm × 17.800 cm × 5.500 cm (L × W × H), 380.000 g
Package 210 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 4.458 kg
