What is the Mitsubishi Electric RJ71LP21-25?

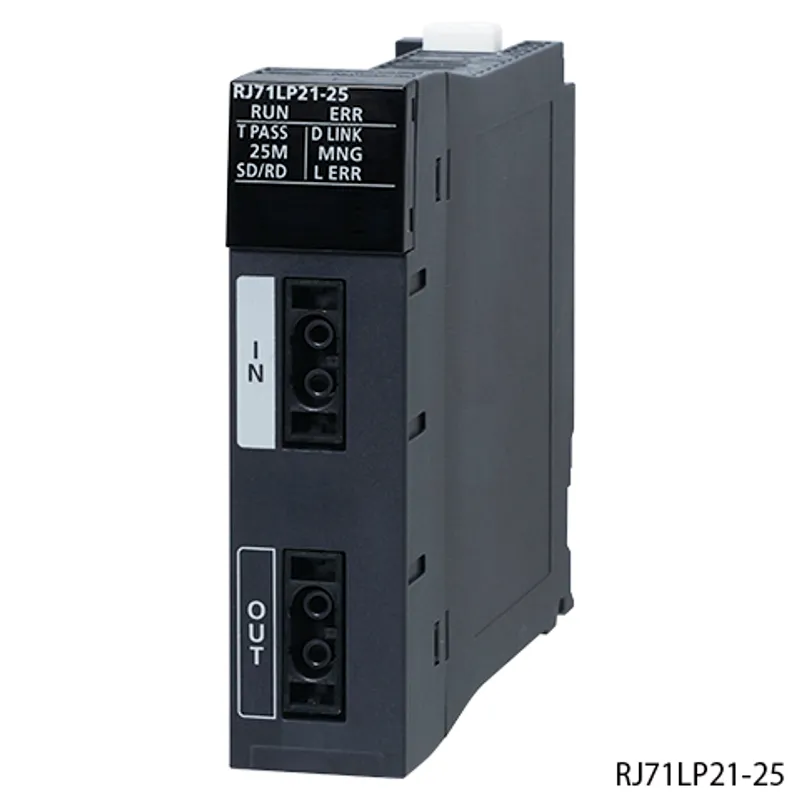

The Mitsubishi Electric RJ71LP21-25 is a MELSECNET/H in the MELSEC iQ-R Series. MELSECNET/H PLC to PLC network, control/normal station, optical loop system, connection cable: SI/H-PCF/broadband H-PCF/QSI optical cable, transmission path format: duplex loop. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryMELSECNET/H
TypeOptical loop (SI/QSI cable)
OutlineMELSECNET/H PLC to PLC network, control/normal station, optical loop system, connection cable: SI/H-PCF/broadband H-PCF/QSI optical cable, transmission path format: duplex loop

Specifications

Maximum number of link points per network: LB16384 points (MELSECNET/10 mode: 8192 points)
Maximum number of link points per network: LW16384 points (MELSECNET/10 mode: 8192 points)
Maximum number of link points per network: LX8192 points
Maximum number of link points per network: LY8192 points
Maximum number of link points per station: LB, LW, LX, LY• MELSECNET/H mode, MELSECNET/10 mode: {(LY+LB)/8+(2×LW)}≦2000 bytes • MELSECNET/H Extended mode: {(LY+LB)/8+(2×LW)}≦35840 bytes
Communication speed25 Mbps/10 Mbps (MELSECNET/10 mode: 10 Mbps)
Maximum number of connectable stations64 stations (Control station: 1, Normal stations: 63)
Communication cableSI optical cables, H-PCF optical cables, Broadband H-PCF optical cables, QSI optical cables, Broadband silica glass optical fiber cables
Applicable connector2-core optical connector plug F06/F08 or equivalent (JIS C5975/5977 compliant)
Overall cable distance30 km
Maximum station-to-station distanceThe maximum station-to-station distance varies depending on the optical fiber cable used. SI optical fiber cable (Old type: A-2P-□) Type L: 200 m (25 Mbps), 500 m (10 Mbps) SI optical fiber cable (Old type: A-2P-□) Type H: 100 m (25 Mbps), 300 m (10 Mbps) SI optical fiber cable: 200 m (25 Mbps), 500 m (10 Mbps) H-PCF optical fiber cable: 400 m (25 Mbps), 1000 m (10 Mbps) Broadband H-PCF optical fi
Maximum number of networks239
Maximum number of groups32 (MELSECNET/10 mode: 9)
Network topologyDuplex loop
Communication methodToken ring
Transient transmission capacity1920 bytes maximum (MELSECNET/10 mode: 960 bytes maximum)
Number of occupied I/O points32 points
Internal current consumption (5 V DC)0.48 A
External dimensions: Height106 mm (base unit mounting side: 98 mm)
External dimensions: Width27.8 mm
External dimensions: Depth110 mm
Weight0.15 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

RJ71LP21-25: frequently asked questions

When can RJ71LP21-25 be shipped?

RJ71LP21-25 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RJ71LP21-25 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RJ71LP21-25 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RJ71LP21-25, subject to availability and destination.
