What is the Mitsubishi Electric RJ71GP21S-SX?

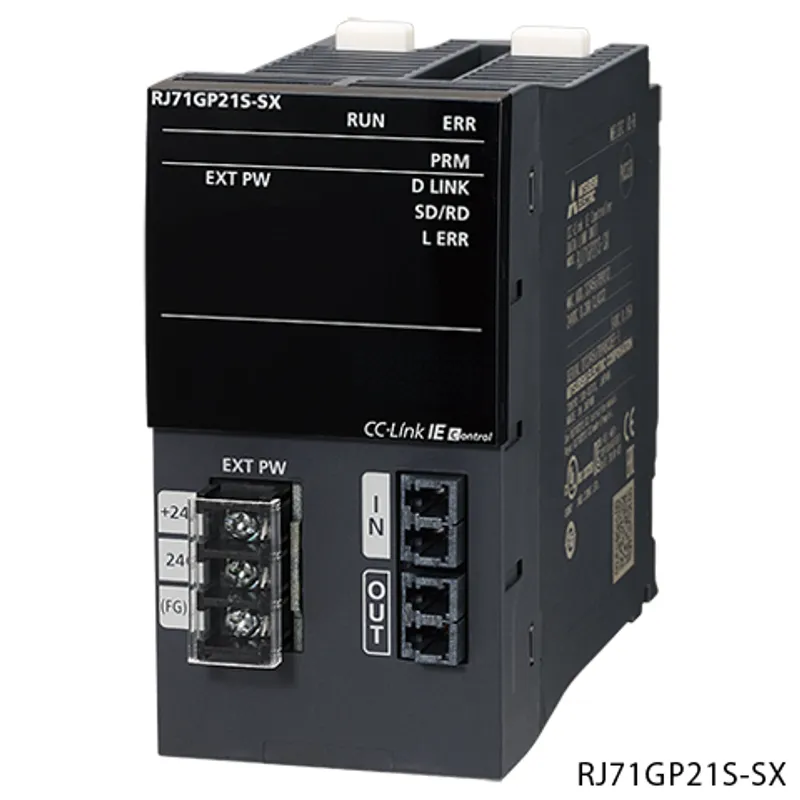

The Mitsubishi Electric RJ71GP21S-SX is a CC-Link IE Control in the MELSEC iQ-R Series. CC-Link IE Controller Network module (fiber-optic cable), control/normal station, with external power supply. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryCC-Link IE Control
TypeOptical fiber cable
OutlineCC-Link IE Controller Network module (fiber-optic cable), control/normal station, with external power supply

Specifications

Maximum number of link points per network: LB• 32K points (32768 points, 4K bytes): When "Link points extended setting" is set to "Not to Extend" • 64K points (65536 points, 8K bytes): When "Link points extended setting" is set to "Extend"
Maximum number of link points per network: LW• 128K points (131072 points, 256K bytes): When "Link points extended setting" is set to "Not to Extend" • 256K points (262144 points, 512K bytes): When "Link points extended setting" is set to "Extend"
Maximum number of link points per network: LX8K points (8192 points, 1K bytes)
Maximum number of link points per network: LY8K points (8192 points, 1K bytes)
Maximum number of link points per station: LB• 16K points (16384 points, 2K bytes) • 32K points (32768 points, 4K bytes): When extended mode is set and "Link points extended setting" is set to "Not to Extend" • 64K points (65536 points, 8K bytes): When extended mode is set and "Link points extended setting" is set to "Extend"
Maximum number of link points per station: LW• 16K points (16384 points, 32K bytes) • 128K points (131072 points, 256K bytes): When extended mode is set and "Link points extended setting" is set to "Not to Extend" • 256K points (262144 points, 512K bytes): When extended mode is set and "Link points extended setting" is set to "Extend"
Maximum number of link points per station: LX8K points (8192 points, 1K bytes)
Maximum number of link points per station: LY8K points (8192 points, 1K bytes)
Transient transmission capacityMaximum 1920 bytes
Communication speed1 Gbps
Network topologyDuplex loop
Communication cableOptical fiber cable which satisfies 1000BASE-SX standard: Multi-mode optical fiber (GI)
Maximum station-to-station distance550 m
Overall cable distance66000 m (when 120 stations are connected)
Maximum number of connectable stations120 stations (control station: 1, normal station: 119)
Maximum number of networks239
Maximum number of groups32
Communication methodToken ring
Optical fiber specificationsStandard: IEEE802.3, IEC 60793-2-10 Types A1a.1 Outside diameter of the core/clad: 50 µm / 125 µm Transmission loss: 3.5 dB/km or lower [λ = 850nm] Transmission band: 500 MHzkm or higher (λ = 850nm)
Connector specificationsDuplex LC connector Standard: IEC 61754-20 Type LC connector Connection loss: 0.3 dB or lower Polished surface: PC (Physical Contact) polishing
Laser class (IEC 60825-1)Class 1 laser product

Hardware Specifications

Number of occupied I/O points48 points 2 slots (I/O assignment: empty 16 points + intelligent 32 points)
External power supply: Voltage20.4...31.2 V DC
External power supply: Current0.28 A
External power supply: Terminal screw sizeM3 screw
External power supply: Applicable solderless terminalR1.25-3
External power supply: Applicable wire size0.3...1.25 mm 2 (22...16 AWG)
External power supply: Tightening torque0.42...0.58 N・m
External power supply: Allowable momentary power failure time1 ms (Level PS1)
External power supply: Noise immunitySimulator noise 500 Vp-p, noise width 1µs, noise frequency 25...60 Hz (noise simulator condition)
Internal current consumption (5 V DC)0.95 A
External dimensions: Height106 mm (base unit mounting side: 98 mm)
External dimensions: Width56 mm
External dimensions: Depth110 mm
Weight0.26 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.
