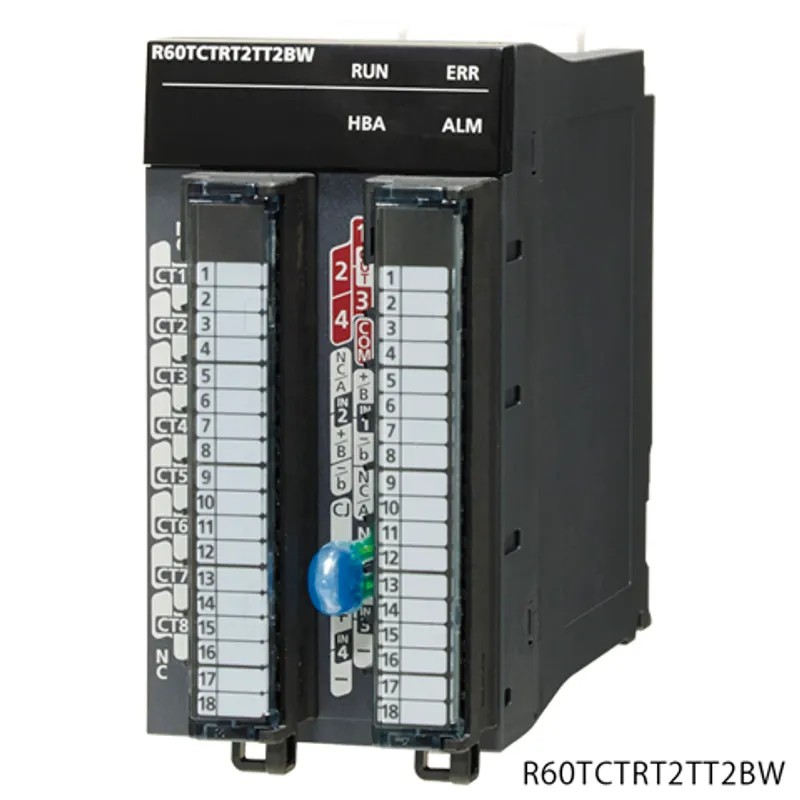

R60TCTRT2TT2BW Mitsubishi MELSEC iQ-R Series Temperature control

MPN: R60TCTRT2TT2BW · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-R Series – Analog
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R60TCTRT2TT2BW be shipped?

R60TCTRT2TT2BW is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R60TCTRT2TT2BW in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R60TCTRT2TT2BW and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R60TCTRT2TT2BW, subject to availability and destination.

The Mitsubishi Electric R60TCTRT2TT2BW is a temperature control in the MELSEC iQ-R Series. 4 channels, thermocouple (K, J, T, B, S, E, R, N, U, L, PLII, W5Re/W26Re), platinum RTD (Pt100, JPt100), heater disconnection detection, sampling cycle: 250 ms/4 channels, 500 ms/4 channels, 18-point terminal block x 2, channel isolated: heating/cooling control. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-R Series
Category	Temperature control
Type	Thermocouple/RTD input
Subtype	With heater disconnection detection
Outline	4 channels, thermocouple (K, J, T, B, S, E, R, N, U, L, PLII, W5Re/W26Re), platinum RTD (Pt100, JPt100), heater disconnection detection, sampling cycle: 250 ms/4 channels, 500 ms/4 channels, 18-point terminal block x 2, channel isolated: heating/cooling control

Specifications

Control output	Transistor output
Number of temperature input points	4 channels/module
Applicable thermocouple	R, K, J, T, S, B, E, N, U, L, PLII, W5Re/W26Re
Applicable resistance temperature detector	Pt100, JPt100
Accuracy: Indication accuracy: Ambient temperature: 25±5 ˚C	Full scale × (±0.3 %)
Accuracy: Indication accuracy: Ambient temperature: 0...55 ˚C	Full scale × (±0.7 %)
Accuracy: Cold junction compensation accuracy: (ambient temperature: 0...55 ˚C): Measured temperature: -100 ˚C or more	Within ±1.0 ˚C
Accuracy: Cold junction compensation accuracy: (ambient temperature: 0...55 ˚C): Measured temperature: -150...-100 ˚C	Within ±2.0 ˚C
Accuracy: Cold junction compensation accuracy: (ambient temperature: 0...55 ˚C): Measured temperature: -200...-150 ˚C	Within ±3.0 ˚C
Sampling cycle	250 ms/4 channels, 500 ms/4 channels
Control output cycle	0.5...100 s
Input impedance	1 MΩ
Input filter	0...100 s (0: Input filter OFF)
Sensor correction value setting	When the R mode is used: (-(full scale of input range)) to full scale of input range When the Q compatible mode function is used: -50.00...50.00 %
Operation at sensor input disconnection	Up-scale processing
Temperature control method	PID ON/OFF pulse or two-position control
PID constants range: PID constants setting	Can be set by auto tuning.
PID constants range: Proportional band (P)	When the R mode is used: 0(0.0) to full scale of input range (depending on the decimal point position) (0: Two-position control) When the Q compatible mode function is used: 0.0...1000.0 % (0: Two-position control)
PID constants range: Integral time (I)	0...3600 s (set 0 for P control and PD control)
PID constants range: Derivative time (D)	0...3600 s (set 0 for P control and PI control)
Set value (SV) setting range	Within the temperature range set in the thermocouple/platinum resistance thermometer to be used.
Dead band setting range	When the R mode is used: 0(0.0) to full scale of input range (depending on the decimal point position) When the Q compatible mode function is used: 0.1...10.0 %
Transistor output: Output signal	ON/OFF pulse
Transistor output: Rated load voltage	10...30 V DC
Transistor output: Maximum load current	0.1 A/point, 0.4 A/common
Transistor output: Maximum inrush current	0.4 A, 10 ms
Transistor output: Leakage current at OFF	0.1 mA or less
Transistor output: Maximum voltage drop at ON	1.0 V DC (TYP.) 0.1 A, 2.5 V DC (MAX.) 0.1 A
Transistor output: Response time: OFF to ON	2 ms or less
Transistor output: Response time: ON to OFF	2 ms or less
Isolation method	Between input terminals and programmable controller power supply, between input channels: Transformer
Dielectric withstand voltage	Between input terminals and programmable controller power supply, between input channels: 500 V AC for 1 minute
Insulation resistance	Between input terminals and programmable controller power supply, between input channels: 500 V DC, 20 MΩ or higher
Heater disconnection detection specifications: Current sensor	U.R.D. Co., LTD. ･ CTL-12-S36-10 (0.0...100.0 A) ･ CTL-12-S56-10 (0.0...100.0 A) ･ CTL-6-P-H (0.00...20.00 A) ･ CTL-6-S-H (0.00...20.00 A) ･ CTL-12L-8 (0.00...100.00 A)
Heater disconnection detection specifications: Input accuracy	Full scale × (±1.0 %)
Heater disconnection detection specifications: Number of alert delay	3...255
External interface	18-point terminal block (M3 screw) × 2
Number of occupied I/O points	32 points, 2 slots (I/O assignment: Empty 16 points + Intelligent 16 points)
Internal current consumption (5 V DC)	0.31 A
External dimensions: Height	106 mm (base unit mounting side: 98 mm)
External dimensions: Width	56 mm
External dimensions: Depth	131 mm
Weight	0.35 kg

Specifications

General specifications

Refer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-R Temperature Control Module User's Manual (Startup) (SH-081535ENG-D)	PDF · 3.77MB
MELSEC iQ-R Temperature Control Module User's Manual (Application) (SH-081536ENG-F)	PDF · 4.58MB
MELSEC iQ-R Module Configuration Manual (SH-081262ENG-AU)	PDF · 44.18MB
MELSEC iQ-R Temperature Control Module Function Block Reference (BCN-P5999-0565-E)	PDF · 0.43MB
Before Using the Product (BCN-P5999-0563E-C)	PDF · 0.20MB
Safety Guidelines (IB-0800525E-AC)	PDF · 11.79MB
