What is the Mitsubishi Electric R60TCTRT2TT2-TS?

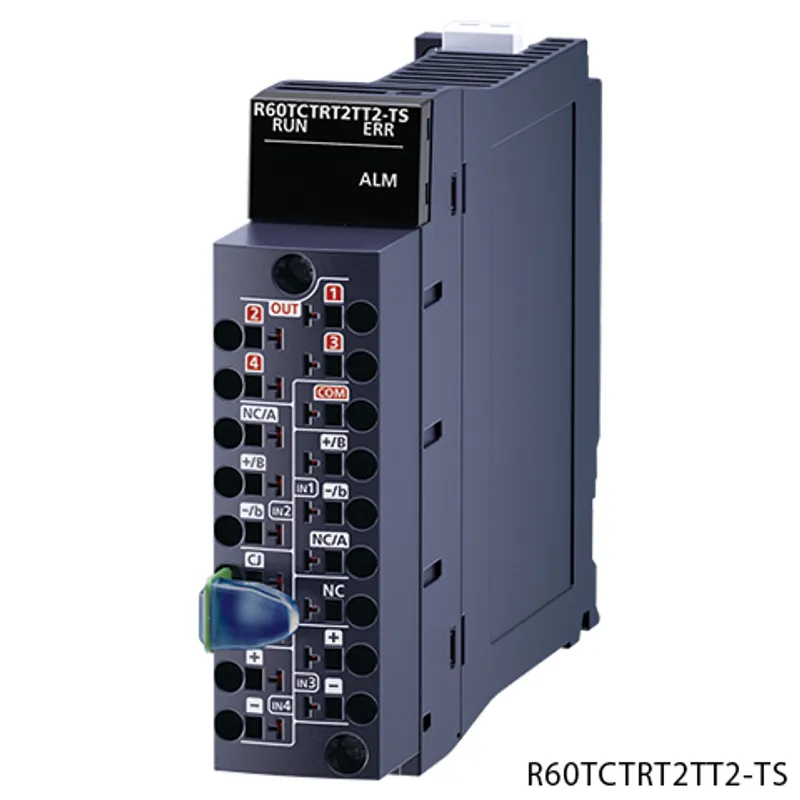

The Mitsubishi Electric R60TCTRT2TT2-TS is a temperature control in the MELSEC iQ-R Series. 4 channels, thermocouple (K, J, T, B, S, E, R, N, U, L, PLII, W5Re/W26Re), platinum RTD (Pt100, JPt100), no heater disconnection detection, sampling cycle: 250 ms/4 channels, 500 ms/4 channels, spring-clamp terminal block, channel isolated, heating-cooling control. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryTemperature control
TypeThermocouple/RTD input
SubtypeWithout heater disconnection detection
Outline4 channels, thermocouple (K, J, T, B, S, E, R, N, U, L, PLII, W5Re/W26Re), platinum RTD (Pt100, JPt100), no heater disconnection detection, sampling cycle: 250 ms/4 channels, 500 ms/4 channels, spring-clamp terminal block, channel isolated, heating-cooling control

Specifications

Control outputTransistor output
Number of temperature input points4 channels/module
Applicable thermocoupleR, K, J, T, S, B, E, N, U, L, PLII, W5Re/W26Re
Applicable resistance temperature detectorPt100, JPt100
Accuracy: Indication accuracy: Ambient temperature: 25±5 ˚CFull scale × (±0.3 %)
Accuracy: Indication accuracy: Ambient temperature: 0...55 ˚CFull scale × (±0.7 %)
Accuracy: Cold junction compensation accuracy: (ambient temperature: 0...55 ˚C): Measured temperature: -100 ˚C or moreWithin ±1.0 ˚C
Accuracy: Cold junction compensation accuracy: (ambient temperature: 0...55 ˚C): Measured temperature: -150...-100 ˚CWithin ±2.0 ˚C
Accuracy: Cold junction compensation accuracy: (ambient temperature: 0...55 ˚C): Measured temperature: -200...-150 ˚CWithin ±3.0 ˚C
Sampling cycle250 ms/4 channels, 500 ms/4 channels
Control output cycle0.5...100 s
Input impedance1 MΩ
Input filter0...100 s (0: Input filter OFF)
Sensor correction value setting(-(full scale of input range)) to full scale of input range
Operation at sensor input disconnectionUp-scale processing
Temperature control methodPID ON/OFF pulse or two-position control
PID constants range: PID constants settingCan be set by auto tuning.
PID constants range: Proportional band (P)0(0.0) to full scale of input range (depending on the decimal point position) (0: Two-position control)
PID constants range: Integral time (I)0...3600 s (set 0 for P control and PD control)
PID constants range: Derivative time (D)0...3600 s (set 0 for P control and PI control)
Set value (SV) setting rangeWithin the temperature range set in the thermocouple/platinum resistance thermometer to be used.
Dead band setting range0(0.0) to full scale of input range (depending on the decimal point position)
Transistor output: Output signalON/OFF pulse
Transistor output: Rated load voltage10...30 V DC
Transistor output: Maximum load current0.1 A/point, 0.4 A/common
Transistor output: Maximum inrush current0.4 A, 10 ms
Transistor output: Leakage current at OFF0.1 mA or less
Transistor output: Maximum voltage drop at ON1.0 V DC (TYP.) 0.1 A, 2.5 V DC (MAX.) 0.1 A
Transistor output: Response time: OFF to ON2 ms or less
Transistor output: Response time: ON to OFF2 ms or less
Isolation methodBetween input terminals and programmable controller power supply, between input channels: Transformer
Dielectric withstand voltageBetween input terminals and programmable controller power supply, between input channels: 500 V AC for 1 minute
Insulation resistanceBetween input terminals and programmable controller power supply, between input channels: 500 V DC, 20 MΩ or higher
External interfaceSpring clamp terminal block
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.28 A
External dimensions: Height106 mm (base unit mounting side: 98 mm)
External dimensions: Width27.8 mm
External dimensions: Depth141 mm
Weight0.24 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

R60TCTRT2TT2-TS: frequently asked questions

When can R60TCTRT2TT2-TS be shipped?

R60TCTRT2TT2-TS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R60TCTRT2TT2-TS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R60TCTRT2TT2-TS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R60TCTRT2TT2-TS, subject to availability and destination.
