What is the Mitsubishi Electric R60TD8-G?

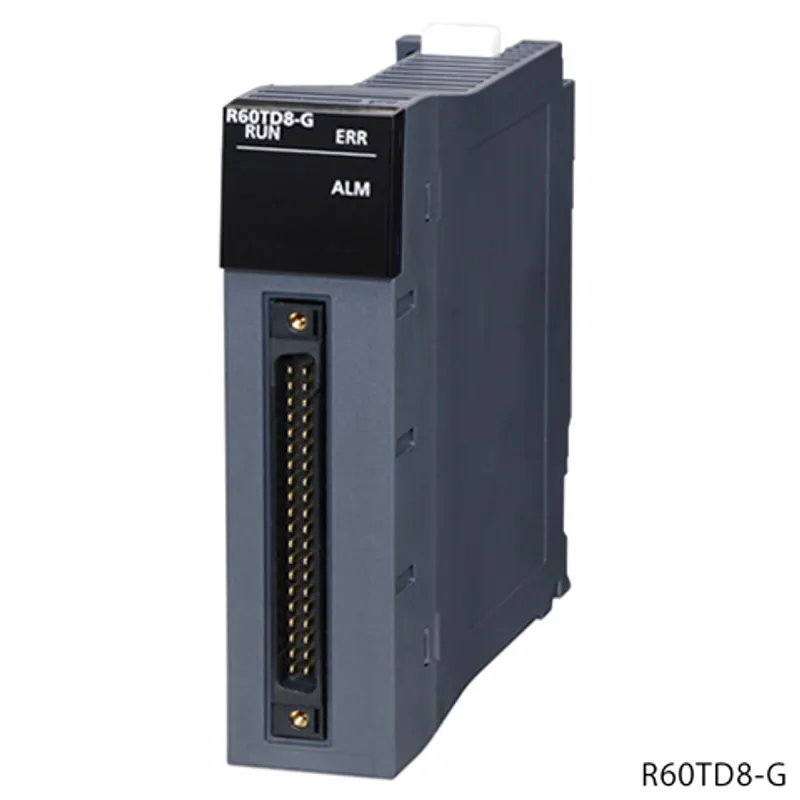

The Mitsubishi Electric R60TD8-G is a temperature input in the MELSEC iQ-R Series. 8 channels, thermocouple (B, R, S, K, E, J, T, N), conversion speed: 30 ms/channel, 40-pin connector, channel isolated. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryTemperature input
TypeThermocouple input
SubtypeChannel isolated
Outline8 channels, thermocouple (B, R, S, K, E, J, T, N), conversion speed: 30 ms/channel, 40-pin connector, channel isolated

Specifications

Number of analog input points8 points (8 channels + cold junction compensation channels)
Digital output: Temperature measured value16-bit signed binary value (-2700...18200)
Digital output: Scaling value16-bit signed binary value
Thermocouple compliance standardsJIS C1602-1995, IEC 60584-1 (1995), IEC60584-2 (1982)
ResolutionB, R, S, N: 0.3 ˚C K, E, J, T: 0.1 ˚C
Accuracy: Thermocouple type: Measured temperature rangeAccuracy (℃) = (Conversion accuracy) + (Temperature characteristics) Conversion accuracy (at operating ambient temperature 25±5 ゚C) Temperature characteristic (per operating ambient temperature variation of 1 ゚C) Maximum temperature error at ambient temperature 55゚C Effect per wiring resistance 1Ω
Accuracy: B: 0...600 ゚C―
Accuracy: B: 600...800 ゚CConversion accuracy: ±1.3 ˚C Temperature characteristics: ±0.3 ˚C Maximum temperature error at ambient temperature 55 ゚C: ±8.8 ˚C Effect per wiring resistance: 0.042 ˚C/Ω
Accuracy: B: 800...1700 ゚CConversion accuracy: ±1.0 ˚C Temperature characteristics: ±0.29 ˚C Maximum temperature error at ambient temperature 55 ゚C: ±8.25 ˚C Effect per wiring resistance: 0.036 ˚C/Ω
Accuracy: B: 1700...1820 ゚C―
Accuracy: R: -50...0 ゚C―
Accuracy: R: 0...300 ゚CConversion accuracy: ±1.5 ˚C Temperature characteristics: ±0.4 ˚C Maximum temperature error at ambient temperature 55 ゚C: ±11.5 ˚C Effect per wiring resistance: 0.05 ˚C/Ω
Accuracy: R: 300...1600 ゚CConversion accuracy: ±0.8 ˚C Temperature characteristics: ±0.29 ˚C Maximum temperature error at ambient temperature 55 ゚C: ±8.05 ˚C Effect per wiring resistance: 0.028 ˚C/Ω
Accuracy: R: 1600...1760 ゚C―
Accuracy: S: -50...0 ゚C―
Accuracy: S: 0...300 ゚CConversion accuracy: ±1.5 ˚C Temperature characteristics: ±0.4 ˚C Maximum temperature error at ambient temperature 55 ゚C: ±11.5 ˚C Effect per wiring resistance: 0.05 ˚C/Ω
Accuracy: S: 300...1600 ゚CConversion accuracy: ±0.8 ˚C Temperature characteristics: ±0.29 ˚C Maximum temperature error at ambient temperature 55 ゚C: ±8.05 ˚C Effect per wiring resistance: 0.028 ˚C/Ω
Accuracy: S: 1600...1760 ゚C―
Accuracy: K: -270...-200 ゚C―
Accuracy: K: -200...0 ゚CConversion accuracy: ±0.5 ˚C Temperature characteristics: ±0.06 ˚C or ±0.1 %% of the measured value, whichever is larger Maximum temperature error at ambient temperature 55 ゚C: ±5.5 ˚C Effect per wiring resistance: 0.017 ˚C/Ω
Accuracy: K: 0...1200 ゚CConversion accuracy: ±0.3 ˚C Temperature characteristics: ±0.06 ˚C or ±0.02 % of the measured value, whichever is larger Maximum temperature error at ambient temperature 55 ゚C: ±6.3 ˚C Effect per wiring resistance: 0.007 ˚C/Ω
Accuracy: K: 1200...1370 ゚C―
Accuracy: E: -270...-200 ゚C―
Accuracy: E: -200...0 ゚CConversion accuracy: ±0.5 ˚C Temperature characteristics: ±0.06 ˚C or ±0.15 % of the measured value, whichever is larger Maximum temperature error at ambient temperature 55 ゚C: ±8.0 ˚C Effect per wiring resistance: 0.01 ˚C/Ω
Accuracy: E: 0...900 ゚CConversion accuracy: ±0.2 ˚C Temperature characteristics: ±0.06 ˚C or ±0.02 % of the measured value, whichever is larger Maximum temperature error at ambient temperature 55 ゚C: ±4.7 ˚C Effect per wiring resistance: 0.005 ˚C/Ω
Accuracy: E: 900...1000 ゚C―
Accuracy: J: -210...-40 ゚C―
Accuracy: J: -40...750 ゚CConversion accuracy: ±0.2 ˚C Temperature characteristics: ±0.06 ˚C or ±0.02 % of the measured value, whichever is larger Maximum temperature error at ambient temperature 55 ゚C: ±3.95 ˚C Effect per wiring resistance: 0.006 ˚C/Ω
Accuracy: J: 750...1200 ゚C―
Accuracy: T: -270...-200 ゚C―
Accuracy: T: -200...0 ゚CConversion accuracy: ±0.5 ˚C Temperature characteristics: 0.06 ˚C or ±0.1 % of the measured value, whichever is larger Maximum temperature error at ambient temperature 55 ゚C: ±5.5 ˚C Effect per wiring resistance: 0.016 ˚C/Ω
Accuracy: T: 0...350 ゚CConversion accuracy: ±0.4 ˚C Temperature characteristics: ±0.06 ˚C or ±0.02 % of the measured value, whichever is larger Maximum temperature error at ambient temperature 55 ゚C: ±2.15 ˚C Effect per wiring resistance: 0.007 ˚C/Ω
Accuracy: T: 350...400 ゚C―
Accuracy: N: -270...-200 ゚C―
Accuracy: N: -200...0 ゚CConversion accuracy: ±0.5 ˚C Temperature characteristics: ±0.06 ˚C or ±0.2 % of the measured value, whichever is larger Maximum temperature error at ambient temperature 55 ゚C: ±6.2 ˚C Effect per wiring resistance: 0.025 ˚C/Ω
Accuracy: N: 0...1250 ゚CConversion accuracy: ±0.5 ˚C Temperature characteristics: ±0.06 ˚C or ±0.02 % of the measured value, whichever is larger Maximum temperature error at ambient temperature 55 ゚C: ±6.75 ˚C Effect per wiring resistance: 0.01 ˚C/Ω
Accuracy: N: 1250...1300 ゚C―
Accuracy: Cold junction compensation accuracy±1.0 ˚C
Conversion speed30 ms/channel
Disconnection detectionAvailable
Isolation methodBetween thermocouple input channels and programmable controller power supply, between thermocouple input channels: Transformer
Dielectric withstand voltageBetween thermocouple input channel and programmable controller power supply: 500 V AC rms for 1 minute Between thermocouple input channels: 1000 V AC rms for 1 minute
Insulation resistanceBetween thermocouple input channel and programmable controller power supply, between thermocouple input channels: 500 V DC, 10 MΩ or higher
External interface40-pin connector
External interface: Applicable connectorA6CON1, A6CON2, A6CON4 (sold separately)
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.36 A
External dimensions: Height106 mm
External dimensions: Width27.8 mm
External dimensions: Depth110 mm
Weight0.19 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

R60TD8-G: frequently asked questions

When can R60TD8-G be shipped?

R60TD8-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R60TD8-G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R60TD8-G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R60TD8-G, subject to availability and destination.
