What is the Mitsubishi Electric R60TRD4-G?

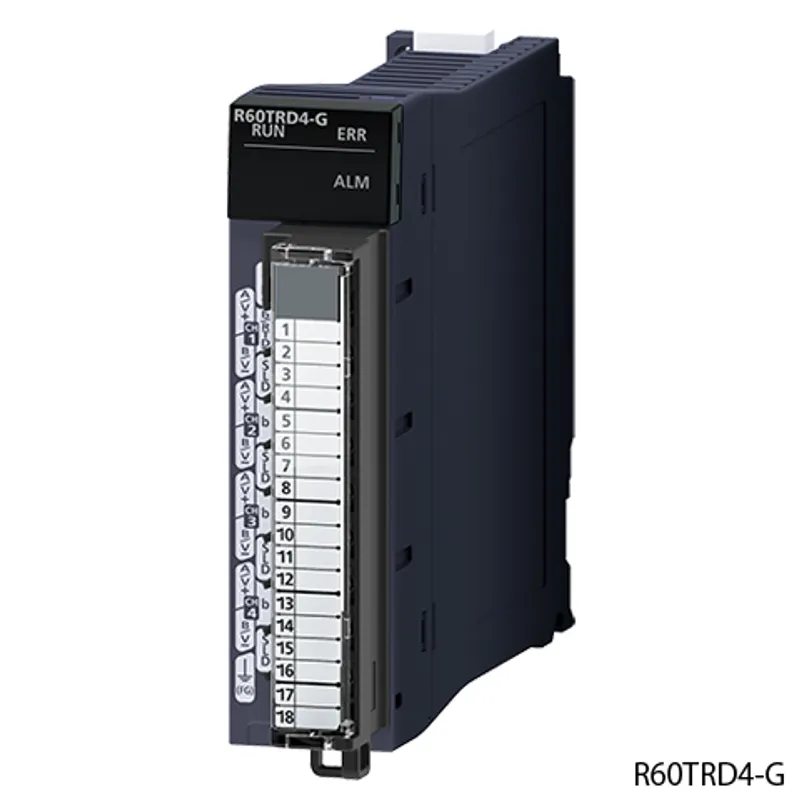

The Mitsubishi Electric R60TRD4-G is a temperature/micro voltage input in the MELSEC iQ-R Series. Thermocouple/RTD/micro voltage/resistance input: 4 channels RTD (Pt100, JPt100, Pt1000, Ni100, Pt50) Thermocouple (B, R, S, N, K, E, J, T) Micro voltage (-100...100 mV DC/-25000...25000) Resistance (0...500 Ω, 0...4000 Ω, 0…16000 Ω) Channel isolated, 40 ms/4 channels, 18-point screw terminal block. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryTemperature/micro voltage input
TypeThermocouple/RTD/micro voltage/resistance input
SubtypeChannel isolated
OutlineThermocouple/RTD/micro voltage/resistance input: 4 channels RTD (Pt100, JPt100, Pt1000, Ni100, Pt50) Thermocouple (B, R, S, N, K, E, J, T) Micro voltage (-100...100 mV DC/-25000...25000) Resistance (0...500 Ω, 0...4000 Ω, 0…16000 Ω) Channel isolated, 40 ms/4 channels, 18-point screw terminal block

Specifications

Number of analog input points4 points (4 channels) + Cold junction compensation channel per module
Analog input: Resistance temperature detectorUsable types 5 types Pt100 (IEC 60751 2008, JIS C 1604-2013) JPt100 (JIS C 1604-1981) Pt1000 (IEC 60751 2008, JIS C 1604-2013) Ni100 (DIN 43760 1987) Pt50 (JIS C 1604-1981)
Analog input: ThermocoupleUsable types 8 types B, R, S, N, K, E, J, T (IEC 60584-1 (2013), JIS C 1602-2015)
Analog input: Thermocouple: Micro voltageCold junction compensation resistor (RTD)
Analog input: Resistor-100 to 100 mV DC
Analog input: Maximum rated voltage0 to 500 Ω, 0 to 4000 Ω, 0 to 16000 Ω
Analog input: Maximum rated currentBetween the V+/V- terminals (for the thermocouple/micro voltage input): ±5 V Between the A/B(b) terminals (for the RTD/resistor input): 0 to 5 V Between the RTD+/RTD- terminals: 0 to 5 V
Analog input: Output: Digital output value: Resistance temperature detector±10 mA
Output: Digital output value: Thermocouple16-bit signed binary data (-2000 to 8500: Value up to one decimal place × 10) 32-bit signed binary data (-200000 to 850000: Value up to three decimal places × 1000)
Output: Digital output value: Micro voltage16-bit signed binary data (-2700 to 18200: Value up to one decimal place × 10)
Output: Digital output value: Resistor16-bit signed binary data (-25000 to 25000)
Output: Digital operation value: Resistance temperature detector16-bit signed binary data (0 to 32000)
Output: Digital operation value: Thermocouple16-bit signed binary data 32-bit signed binary data
Output: Digital operation value: Micro voltage16-bit signed binary data
Output: Digital operation value: Resistor16-bit signed binary data
Accuracy: Resistance temperature detector16-bit signed binary data
Accuracy: ThermocoupleFor details, refer to the MELSEC iQ-R Channel Isolated Temperature/Micro Voltage Input Module User's Manual.
Accuracy: Cold junction compensation (Cold junction compensation resistor (RTD))For details, refer to the MELSEC iQ-R Channel Isolated Temperature/Micro Voltage Input Module User's Manual.
Accuracy: Micro voltage±1.0 ˚C
Accuracy: ResistorFor details, refer to the MELSEC iQ-R Channel Isolated Temperature/Micro Voltage Input Module User's Manual.
Resolution: Resistance temperature detectorFor details, refer to the MELSEC iQ-R Channel Isolated Temperature/Micro Voltage Input Module User's Manual.
Resolution: Thermocouple0.025 ˚C/0.1 ˚C
Resolution: Micro voltageB, R, S, N: 0.3 ˚C K, E, J, T: 0.1 ˚C
Resolution: Resistor4 µV
Excitation current: Resistance temperature detector0 to 500 Ω: 0.015625 Ω, 0 to 4000 Ω: 0.125 Ω, 0 to 16000 Ω: 0.5 Ω
Excitation current: ResistorPt100, JPt100, Pt50, Ni100: 1 mA Pt1000: 0.1 mA
Excitation current: External cold junction compensation resistor0 to 500 Ω: 1 mA 0 to 4000 Ω, 0 to 16000 Ω: 0.1 mA
Conversion speed1 mA
Isolation method: Between temperature input channel and programmable controller power supply40 ms/4 channels
Isolation method: Between temperature input channelsDigital isolator isolation/Transformer isolation
Isolation method: Between cold junction compensation channel and programmable controller power supplyDigital isolator isolation/Transformer isolation
Withstand voltage: Between temperature input channel and programmable controller power supplyDigital isolator isolation/Transformer isolation
Withstand voltage: Between temperature input channels500 V DC 1 minute
Withstand voltage: Between cold junction compensation channel and programmable controller power supply1000 V DC 1 minute
Insulation resistance: Between temperature input channel and programmable controller power supply500 V DC 1 minute
Insulation resistance: Between temperature input channels500 V DC 10 MΩ or more
Insulation resistance: Between cold junction compensation channel and programmable controller power supply500 V DC 10 MΩ or more
Disconnection detection500 V DC 10 MΩ or more
Number of occupied I/O pointsBuilt-in
External interface16 points (I/O assignment: Intelligent 16 points)
Applicable wire size18-point terminal block (Screw terminal block)
Applicable solderless terminal0.3 to 0.75 mm 2 (22 to 18 AWG)
Internal current consumption (5 V DC)R1.25-3 (Solderless terminals with an insulation sleeve cannot be used.)
External dimensions: Height0.21 A
External dimensions: Width106 mm
External dimensions: Depth27.8 mm
Weight110 mm

Specifications

General specificationsFor details, refer to the MELSEC iQ-R Module Configuration Manual.

R60TRD4-G: frequently asked questions

When can R60TRD4-G be shipped?

R60TRD4-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R60TRD4-G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R60TRD4-G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R60TRD4-G, subject to availability and destination.
