What is the Mitsubishi Electric R60TCRT4-TS?

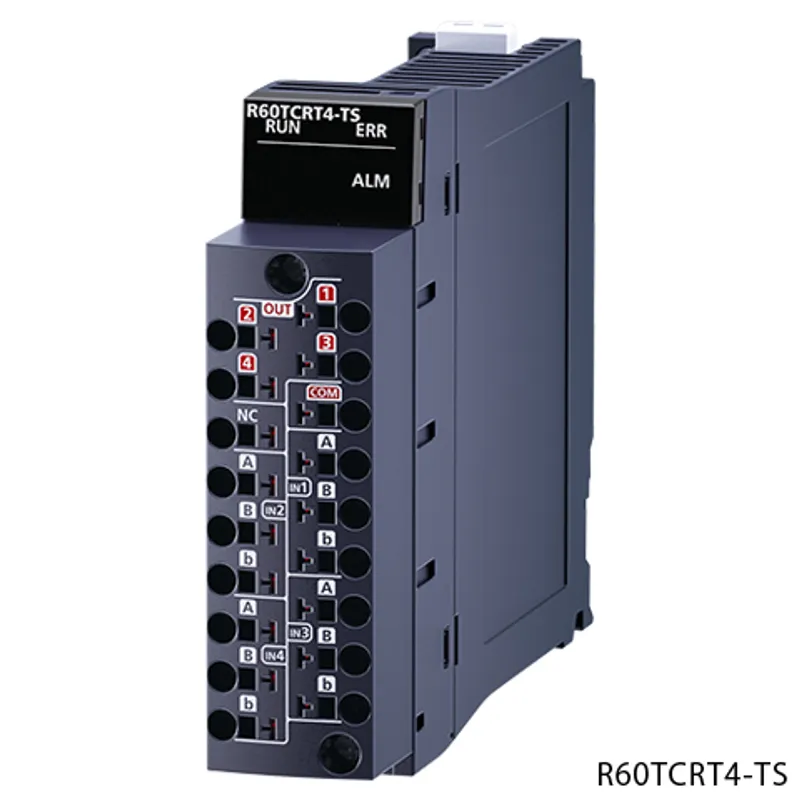

The Mitsubishi Electric R60TCRT4-TS is a temperature control in the MELSEC iQ-R Series. 4 channels, platinum RTD (Pt100, JPt100), no heater disconnection detection, sampling cycle: 250 ms/4 channels, 500 ms/4 channels, spring-clamp terminal block, channel isolated, heating-cooling control. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryTemperature control
TypeRTD input
SubtypeWithout heater disconnection detection
Outline4 channels, platinum RTD (Pt100, JPt100), no heater disconnection detection, sampling cycle: 250 ms/4 channels, 500 ms/4 channels, spring-clamp terminal block, channel isolated, heating-cooling control

Specifications

Control outputTransistor output
Number of temperature input points4 channels/module
Applicable resistance temperature detectorPt100, JPt100
Accuracy: Indication accuracy: Ambient temperature: 25±5 ˚CFull scale × (±0.3 %)
Accuracy: Indication accuracy: Ambient temperature: 0...55 ˚CFull scale × (±0.7 %)
Sampling cycle250 ms/4 channels, 500 ms/4 channels
Control output cycle0.5...100 s
Input impedance1 MΩ
Input filter0...100 s (0: Input filter OFF)
Sensor correction value setting(-(full scale of input range)) to full scale of input range
Operation at sensor input disconnectionUp-scale processing
Temperature control methodPID ON/OFF pulse or two-position control
PID constants range: PID constants settingCan be set by auto tuning.
PID constants range: Proportional band (P)0(0.0) to full scale of input range (depending on the decimal point position) (0: Two-position control)
PID constants range: Integral time (I)0...3600 s (set 0 for P control and PD control)
PID constants range: Derivative time (D)0...3600 s (set 0 for P control and PI control)
Set value (SV) setting rangeWithin the temperature range set by the platinum resistance thermometer to be used.
Dead band setting range0(0.0) to full scale of input range (depending on the decimal point position)
Transistor output: Output signalON/OFF pulse
Transistor output: Rated load voltage10...30 V DC
Transistor output: Maximum load current0.1 A/point, 0.4 A/common
Transistor output: Maximum inrush current0.4 A, 10 ms
Transistor output: Leakage current at OFF0.1 mA or less
Transistor output: Maximum voltage drop at ON1.0 V DC (TYP.) 0.1 A, 2.5 V DC (MAX.) 0.1 A
Transistor output: Response time: OFF to ON2 ms or less
Transistor output: Response time: ON to OFF2 ms or less
Isolation methodBetween input terminals and programmable controller power supply, between input channels: Transformer
Dielectric withstand voltageBetween input terminals and programmable controller power supply, between input channels: 500 V AC for 1 minute
Insulation resistanceBetween input terminals and programmable controller power supply, between input channels: 500 V DC, 20 MΩ or higher
External interfaceSpring clamp terminal block
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.28 A
External dimensions: Height106 mm (base unit mounting side: 98 mm)
External dimensions: Width27.8 mm
External dimensions: Depth130 mm
Weight0.24 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

R60TCRT4-TS: frequently asked questions

When can R60TCRT4-TS be shipped?

R60TCRT4-TS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R60TCRT4-TS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R60TCRT4-TS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R60TCRT4-TS, subject to availability and destination.
