R60DA8-G Mitsubishi MELSEC iQ-R Series Analog output

MPN: R60DA8-G · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-R Series – Analog
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R60DA8-G be shipped?

R60DA8-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R60DA8-G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R60DA8-G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R60DA8-G, subject to availability and destination.

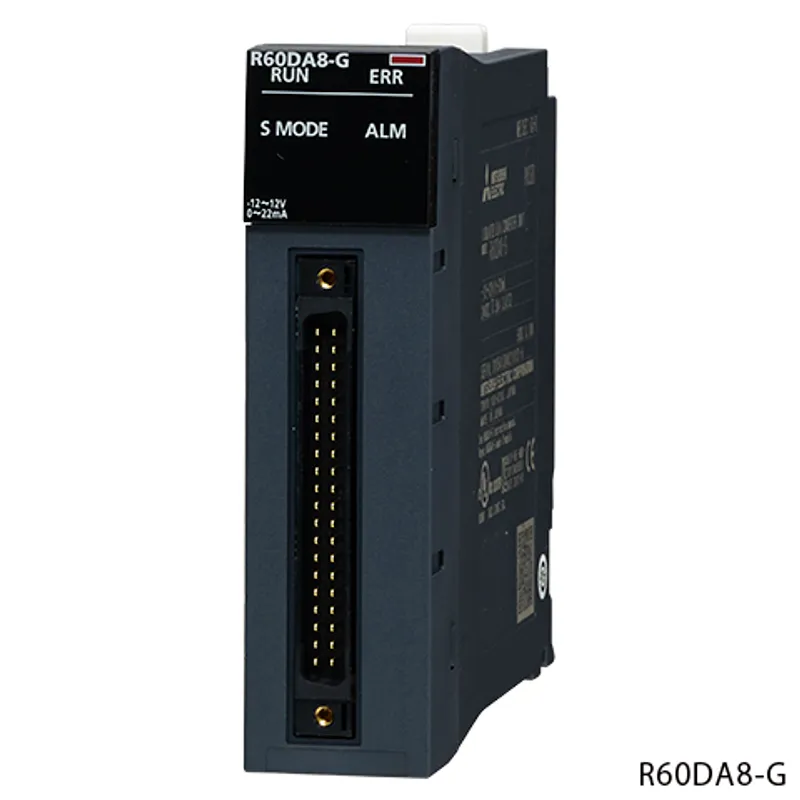

The Mitsubishi Electric R60DA8-G is a analog output in the MELSEC iQ-R Series. 8 channels, input (resolution): -32000...32000/0...32000, output: -12...12 V, 0...20 mA, conversion speed: 1 ms/channel, 40-pin connector, channel isolated. For more information about IEC61508, please refer to the Technical News(FA-A0386). Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-R Series
Category	Analog output
Type	Voltage/current output
Subtype	Channel isolated
Outline	8 channels, input (resolution): -32000...32000/0...32000, output: -12...12 V, 0...20 mA, conversion speed: 1 ms/channel, 40-pin connector, channel isolated. For more information about IEC61508, please refer to the Technical News(FA-A0386).

Output specifications

Number of analog output points	8 points (8 channels)
Digital input	16-bit signed binary value (-32768...32767)
Analog output: Voltage	Normal mode: -12...12 V DC (external load resistance 1 kΩ or more) SIL2 mode: -10...10 V DC (external load resistance 1 kΩ or more)
Analog output: Current	Normal mode: 0...20 mA DC (external load resistance 0...600 Ω), 0...22 mA DC (external load resistance 0...500 Ω) SIL2 mode: 0...20 mA DC (external load resistance 100...350 Ω)
I/O characteristics, resolution: Output range	Digital input value (resolution)
I/O characteristics, resolution: Voltage output: 0...5 V	0...32000 (156.3 µV)
I/O characteristics, resolution: Voltage output: 1...5 V	0...32000 (125.0 µV)
I/O characteristics, resolution: Voltage output: 1...5 V (extended mode)	-8000...36000 (125.0 µV)
I/O characteristics, resolution: Voltage output: -10...10 V	-32000...32000 (312.5 µV)
I/O characteristics, resolution: Voltage output: -12...12 V	-32000...32000 (378.4 µV)
I/O characteristics, resolution: Voltage output: User range setting 2	-32000...32000 (378.4 µV)
I/O characteristics, resolution: Voltage output: User range setting 3	-32000...32000 (312.0 µV)
I/O characteristics, resolution: Current output: 0...20 mA	0...32000 (625.0 nA)
I/O characteristics, resolution: Current output: 4...20 mA	0...32000 (500.0 nA)
I/O characteristics, resolution: Current output: 4...20 mA (extended mode)	-8000...36000 (500.0 nA)
I/O characteristics, resolution: Current output: User range setting 1	-32000...32000 (360.1 nA)
Accuracy (accuracy of the maximum analog output value): Reference accuracy	Within ±0.1 %
Accuracy (accuracy of the maximum analog output value): Temperature coefficient	±50 ppm/˚C (0.005 %/˚C)
Accuracy during analog output read-back	0.8...8 % (Voltage: ±80...800 mV, Current: ±160...1600 µA)
D/A conversion speed	Normal mode: 1 ms/channel SIL2 mode: 2 ms/channel
SIL2 D/A conversion cycle setting	2000...20000 ms
Control cycle time	2 ms
Output short protection	Protected

Common specifications

Isolation method	Between I/O terminals and programmable controller power supply, between analog output channels, between external power supply and analog output channels: Transformer
Dielectric withstand voltage	Between I/O terminals and programmable controller power supply: 500 V AC rms for 1 minute Between analog output channels: 1000 V AC rms for 1 minute Between external power supply and analog output channels: 500 V AC rms for 1 minute
Insulation resistance	Between I/O terminals and programmable controller power supply, between analog output channels, between external power supply and analog output channels: 500 V DC, 10 MΩ or higher
External power supply: Voltage	24 V DC (+20/-15 %, ripple, spike 500 mVp-p or lower)
External power supply: Current	0.36 A (inrush current: 5.0 A, 810 µs or lower)
External interface	40-pin connector
External interface: Applicable connector	A6CON1, A6CON2, A6CON4 (sold separately)
Number of occupied I/O points	16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)	0.18 A
External dimensions: Height	106 mm (base unit mounting side: 98 mm)
External dimensions: Width	27.8 mm
External dimensions: Depth	110 mm
Weight	0.21 kg

Specifications

General specifications

Refer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-R Channel Isolated Digital-Analog Converter Module User's Manual (Startup) (SH-081489ENG-G)	PDF · 1.53MB
MELSEC iQ-R Channel Isolated Digital-Analog Converter Module User's Manual (Application) (SH-081491ENG-I)	PDF · 5.78MB
MELSEC iQ-R Module Configuration Manual (SH-081262ENG-AU)	PDF · 44.18MB
MELSEC iQ-R Analog-Digital Converter Module/Digital-Analog Converter Module Function Block Reference (BCN-P5999-0375-J)	PDF · 1.51MB
MELSEC iQ-R Channel Isolated Digital-Analog Converter Module SIL2 Diagnostic Function Block Library Reference (BCN-P5999-0894-D)	PDF · 0.81MB
Before Using the Product (BCN-P5999-0460E-E)	PDF · 0.60MB
Safety Guidelines (IB-0800525E-AC)	PDF · 11.79MB
