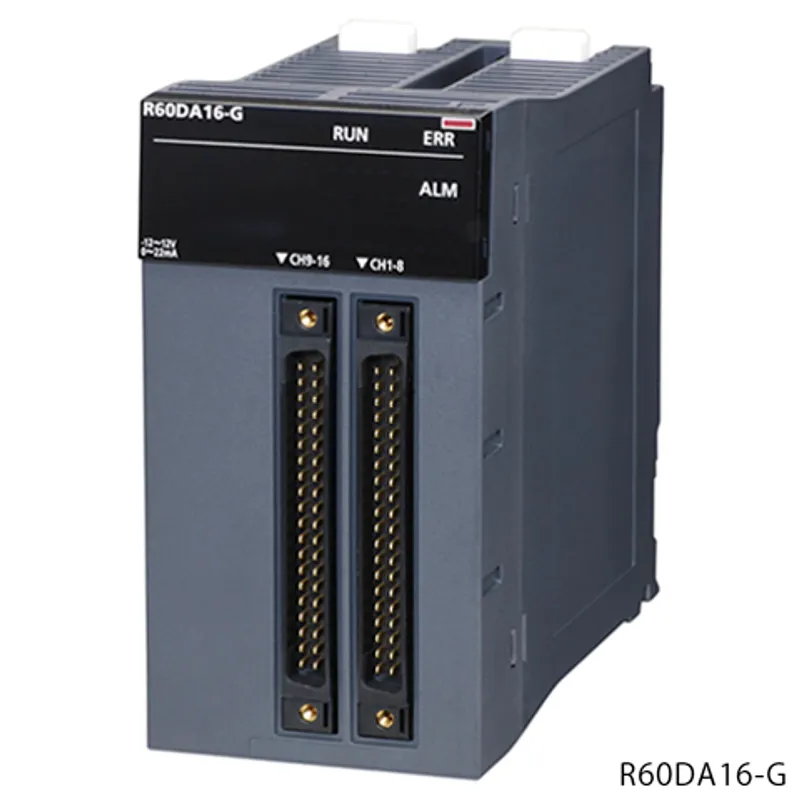

What is the Mitsubishi Electric R60DA16-G?

The Mitsubishi Electric R60DA16-G is a analog output in the MELSEC iQ-R Series. 16 channels, input (resolution): -32000...32000, 0...32000, output: -12...12 V, 0...20 mA, conversion speed: 1 ms/channel, 40-pin connector x 2, channel isolated. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryAnalog output
TypeVoltage/current output
SubtypeChannel isolated
Outline16 channels, input (resolution): -32000...32000, 0...32000, output: -12...12 V, 0...20 mA, conversion speed: 1 ms/channel, 40-pin connector x 2, channel isolated

Output specifications

Number of analog output points16 points (16 channels)
Digital input16-bit signed binary value (-32768...32767)
Analog output: Voltage-12...12 V DC (external load resistance 1 kΩ or more)
Analog output: Current0...20 mA DC (external load resistance 0...600 Ω) 0...22 mA DC (external load resistance 0...500 Ω)
I/O characteristics, resolution: Output rangeDigital input value (resolution)
I/O characteristics, resolution: Voltage output: 0...5 V0...32000 (156.3 µV)
I/O characteristics, resolution: Voltage output: 1...5 V0...32000 (125.0 µV)
I/O characteristics, resolution: Voltage output: 1...5 V (extended mode)-8000...36000 (125.0 µV)
I/O characteristics, resolution: Voltage output: -10...10 V-32000...32000 (312.5 µV)
I/O characteristics, resolution: Voltage output: -12...12 V-32000...32000 (378.4 µV)
I/O characteristics, resolution: Voltage output: User range setting 2-32000...32000 (378.4 µV)
I/O characteristics, resolution: Voltage output: User range setting 3-32000...32000 (312.0 µV)
I/O characteristics, resolution: Current output: 0...20 mA0...32000 (625.0 nA)
I/O characteristics, resolution: Current output: 4...20 mA0...32000 (500.0 nA)
I/O characteristics, resolution: Current output: 4...20 mA (extended mode)-8000...36000 (500.0 nA)
I/O characteristics, resolution: Current output: User range setting 1-32000...32000 (360.1 nA)
Accuracy (accuracy of the maximum analog output value): Reference accuracyWithin ±0.1 %
Accuracy (accuracy of the maximum analog output value): Temperature coefficient±50 ppm/˚C (0.005 %/˚C)
D/A conversion speed1 ms/channel
Output short protectionProtected

Common specifications

Isolation methodBetween I/O terminals and programmable controller power supply, between analog output channels, between external power supply and analog output channels: Transformer
Dielectric withstand voltageBetween I/O terminals and programmable controller power supply: 500 V AC rms for 1 minute Between analog output channels: 1000 V AC rms for 1 minute Between external power supply and analog output channels: 500 V AC rms for 1 minute
Insulation resistanceBetween I/O terminals and programmable controller power supply, between analog output channels, between external power supply and analog output channels: 500 V DC, 10 MΩ or higher
External power supply: Voltage24 V DC (+20/-15 %, ripple, spike 500 mVp-p or lower)
External power supply: Current0.70 A (inrush current: 5.0 A, 810 µs or lower)
External interface40-pin connector × 2
External interface: Applicable connectorA6CON1, A6CON2, A6CON4 (sold separately)
Number of occupied I/O points48 points, 2 slots (I/O assignment: Empty 16 points + Intelligent 32 points)
Internal current consumption (5 V DC)0.25 A
External dimensions: Height106 mm (base unit mounting side: 98 mm)
External dimensions: Width56 mm
External dimensions: Depth110 mm
Weight0.32 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.
