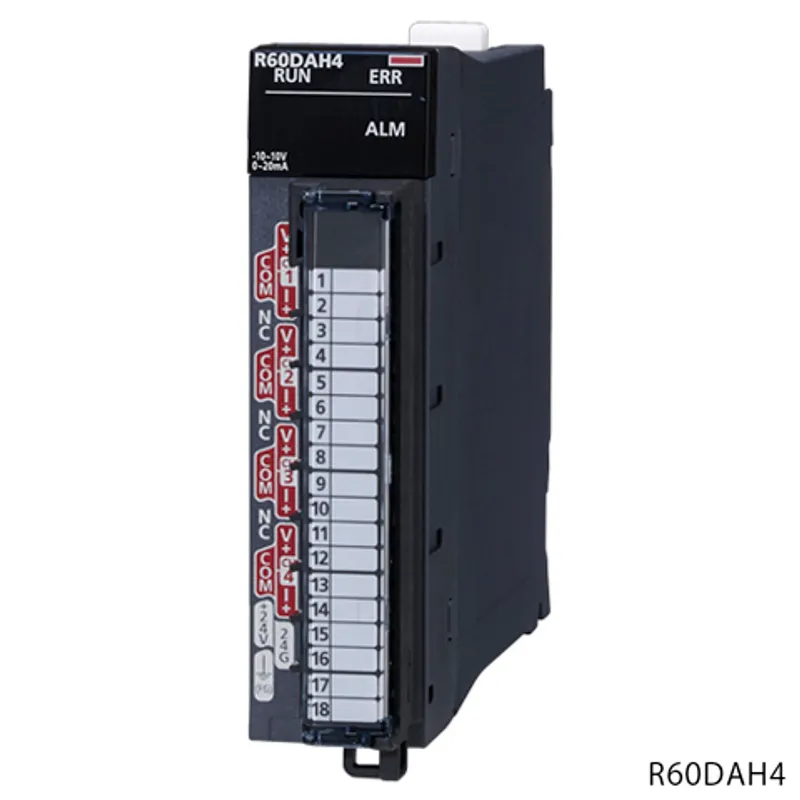

Mitsubishi Electric R60DAH4

Mitsubishi MELSEC iQ-R Series Analog output

MPN
R60DAH4
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric R60DAH4?

The Mitsubishi Electric R60DAH4 is a analog output in the MELSEC iQ-R Series. 4 channels, I/O (resolution): 0...3200, -3200...32000, output: -10...10 V DC, 0...20 mA DC, conversion speed (high-speed output mode): 1 μs/channel, conversion speed (normal output mode): 10 μs/channel, conversion speed (waveform output mode): 20 μs/channel, 18-point terminal block. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryAnalog output
TypeVoltage/current output
Outline4 channels, I/O (resolution): 0...3200, -3200...32000, output: -10...10 V DC, 0...20 mA DC, conversion speed (high-speed output mode): 1 μs/channel, conversion speed (normal output mode): 10 μs/channel, conversion speed (waveform output mode): 20 μs/channel, 18-point terminal block

Output specifications

Number of analog output points4 points (4 channels)
Digital input16-bit signed binary value (-32768...32767)
Analog output: Voltage-10...10 V DC (external load resistance 1 kΩ or more) 0...5 V DC (external load resistance 500 Ω or more)
Analog output: Current0...20 mA DC (external load resistance 50...600 Ω)
I/O characteristics, resolution: Output rangeDigital input value (resolution)
I/O characteristics, resolution: Voltage output: 0...5 V0...32000 (156.3 µV)
I/O characteristics, resolution: Voltage output: 1...5 V0...32000 (125.0 µV)
I/O characteristics, resolution: Voltage output: -10...10 V-32000...32000 (312.5 µV)
I/O characteristics, resolution: Voltage output: User range setting-32000...32000 (312.5 µV)
I/O characteristics, resolution: Current output: 0...20 mA0...32000 (625.0 nA)
I/O characteristics, resolution: Current output: 4...20 mA0...32000 (500.0 nA)
I/O characteristics, resolution: Current output: User range setting-32000...32000 (360.0 nA)
Accuracy (accuracy of the maximum analog output value): Ambient temperature: 25±5 ゚CWithin ±0.1 %
Accuracy (accuracy of the maximum analog output value): Ambient temperature: 0...55 ゚CWithin ±0.3 %
D/A conversion speedHigh speed output mode: 1 µs/channel Normal output mode: 10 µs/channel Wave output mode: 20 µs/channel
Output response time: Voltage outputMaximum 20 µs (-10...10 V, 2 kΩ load)
Output response time: Current outputMaximum 10 µs (0...20 mA, 250 Ω load)
Output short protectionProtected

Common specifications

Isolation methodBetween I/O terminals and programmable controller power supply: Photocoupler Between output channels: Non-isolation Between external power supply and analog outputs: Transformer
Dielectric withstand voltageBetween I/O terminals and programmable controller power supply: 500 V AC rms for 1 minute Between external power supply and analog outputs: 500 V AC rms for 1 minute
Insulation resistanceBetween I/O terminals and programmable controller power supply: 500 V DC 10 MΩ or higher
External power supply: Voltage24 V DC (+20/-15 %, ripple, spike 500 mVp-p or lower)
External power supply: Current0.13 A (inrush current: 5.8 A, 700 µs or lower)
External interface18-point terminal block (M3 screw)
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.27 A
External dimensions: Height106 mm (base unit mounting side: 98 mm)
External dimensions: Width27.8 mm
External dimensions: Depth131 mm
Weight0.20 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

R60DAH4: frequently asked questions

When can R60DAH4 be shipped?

R60DAH4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R60DAH4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R60DAH4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R60DAH4, subject to availability and destination.
