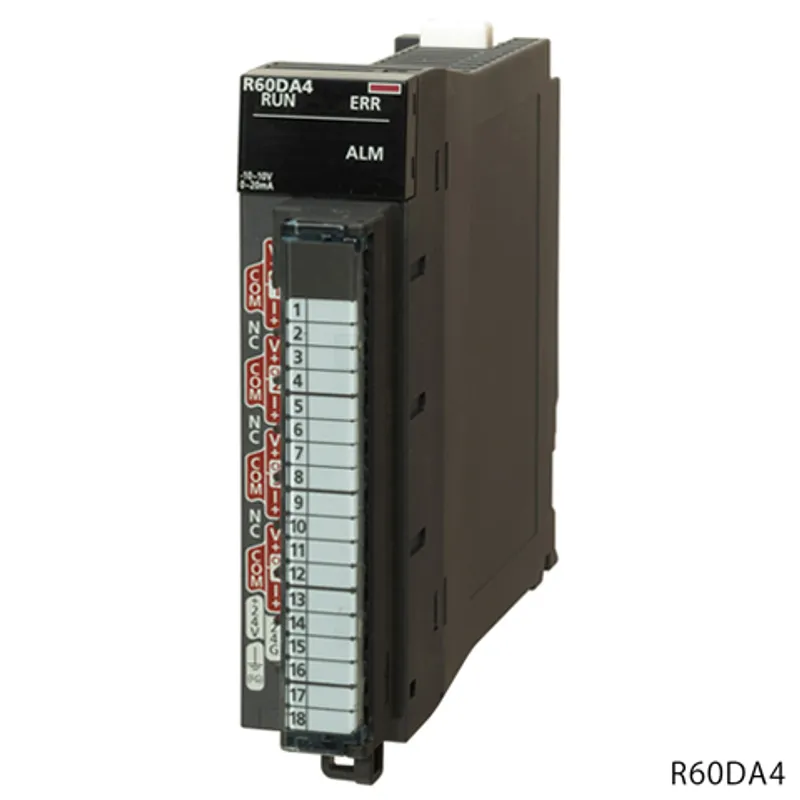

R60DA4 Mitsubishi MELSEC iQ-R Series Analog output

MPN: R60DA4 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-R Series – Analog
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R60DA4 be shipped?

R60DA4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R60DA4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R60DA4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R60DA4, subject to availability and destination.

The Mitsubishi Electric R60DA4 is a analog output in the MELSEC iQ-R Series. 4 channels, input (resolution): 0...32000/-32000...32000, output, -10...10 V DC, 0...20 mA DC, conversion speed (normal output mode): 80 μs/channel, conversion speed (wave output mode): 80 μs/channel, 18-point terminal block. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-R Series
Category	Analog output
Type	Voltage/current output
Outline	4 channels, input (resolution): 0...32000/-32000...32000, output, -10...10 V DC, 0...20 mA DC, conversion speed (normal output mode): 80 μs/channel, conversion speed (wave output mode): 80 μs/channel, 18-point terminal block

Output specifications

Number of analog output points	4 points (4 channels)
Digital input	16-bit signed binary value (-32768...32767)
Analog output: Voltage	-10...10 V DC (external load resistance 1 kΩ or more) 0...5 V DC (external load resistance 500 Ω or more)
Analog output: Current	0...20 mA DC (external load resistance 0...600 Ω)
I/O characteristics, resolution: Output range	Digital input value (resolution)
I/O characteristics, resolution: Voltage output: 0...5 V	0...32000 (156.3 µV)
I/O characteristics, resolution: Voltage output: 1...5 V	0...32000 (125.0 µV)
I/O characteristics, resolution: Voltage output: -10...10 V	-32000...32000 (312.5 µV)
I/O characteristics, resolution: Voltage output: User range setting	-32000...32000 (312.5 µV)
I/O characteristics, resolution: Current output: 0...20 mA	0...32000 (625.0 nA)
I/O characteristics, resolution: Current output: 4...20 mA	0...32000 (500.0 nA)
I/O characteristics, resolution: Current output: User range setting	-32000...32000 (350.9 nA)
Accuracy (accuracy of the maximum analog output value): Ambient temperature: 25±5 ﾟC	Within ±0.1 %
Accuracy (accuracy of the maximum analog output value): Ambient temperature: 0...55 ﾟC	Within ±0.3 %
D/A conversion speed	Normal output mode: 80 µs/channel Wave output mode: 80 µs/channel
Output short protection	Protected

Common specifications

Isolation method	Between I/O terminals and programmable controller power supply: Photocoupler Between output channels: Non-isolation Between external power supply and analog outputs: Transformer
Dielectric withstand voltage	Between I/O terminals and programmable controller power supply: 500 V AC rms for 1 minute Between external power supply and analog outputs: 500 V AC rms for 1 minute
Insulation resistance	Between I/O terminals and programmable controller power supply: 500 V DC 10 MΩ or higher
External power supply: Voltage	24 V DC (+20/-15 %, ripple, spike 500 mVp-p or lower)
External power supply: Current	0.14 A (inrush current: 5.0 A, 690 µs or lower)
External interface	18-point terminal block (M3 screw)
Number of occupied I/O points	16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)	0.16 A
External dimensions: Height	106 mm (base unit mounting side: 98 mm)
External dimensions: Width	27.8 mm
External dimensions: Depth	131 mm
Weight	0.19 kg

Specifications

General specifications

Refer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-R Digital-Analog Converter Module User's Manual (Startup) (SH-081235ENG-E)	PDF · 2.31MB
MELSEC iQ-R Digital-Analog Converter Module User's Manual (Application) (SH-081237ENG-J)	PDF · 4.31MB
MELSEC iQ-R Module Configuration Manual (SH-081262ENG-AU)	PDF · 44.18MB
MELSEC iQ-R Analog-Digital Converter Module/Digital-Analog Converter Module Function Block Reference (BCN-P5999-0375-J)	PDF · 1.51MB
Before Using the Product (BCN-P5999-0160E-C)	PDF · 0.15MB
Safety Guidelines (IB-0800525E-AC)	PDF · 11.79MB
