What is the Mitsubishi Electric R60ADI8-HA?

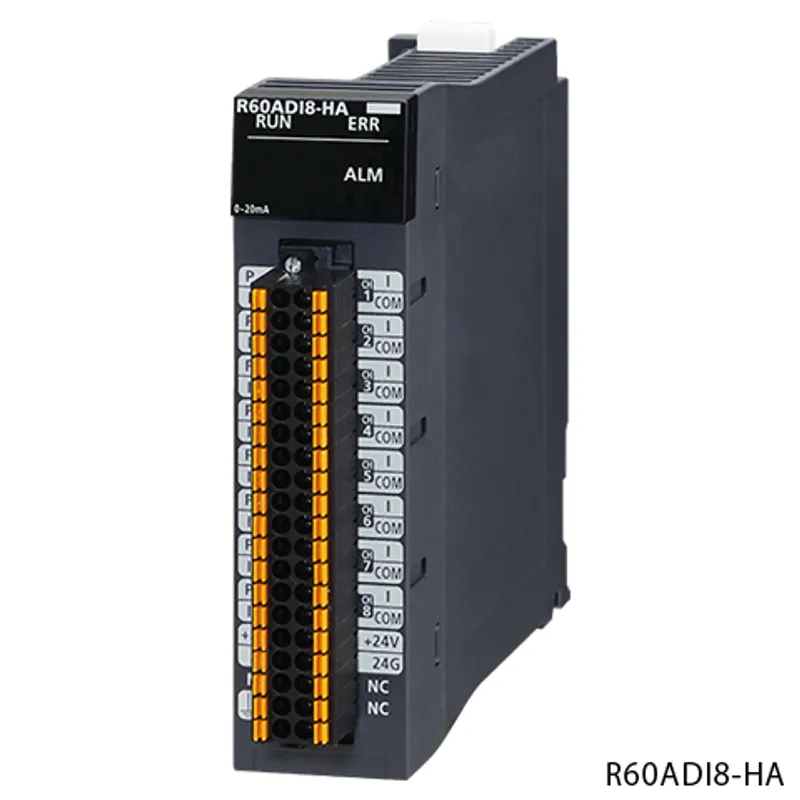

The Mitsubishi Electric R60ADI8-HA is a analog input in the MELSEC iQ-R Series. 8 channels, input: 0...20 mA DC, output (resolution): 0...32000, conversion speed: 40-point 2-piece spring-clamp terminal block, HART communication supported. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryAnalog input
TypeCurrent input
SubtypeHART communication
Outline8 channels, input: 0...20 mA DC, output (resolution): 0...32000, conversion speed: 40-point 2-piece spring-clamp terminal block, HART communication supported

Input specifications

Number of analog input points8 points (8 channels)
Analog input: Current0...20 mA DC (input resistance 250 Ω)
Power supply part for external devices: Maximum supply current24 mA DC
Power supply part for external devices: Short-circuit protectionProvided (limiting current: 25...40 mA)
Digital output16-bit signed binary value (-32768...32767)
I/O characteristics, resolution: Input rangeDigital output value (resolution)
I/O characteristics, resolution: Current input: 0...20 mA0...32000 (625.0 nA)
I/O characteristics, resolution: Current input: 4...20 mA0...32000 (500.0 nA)
I/O characteristics, resolution: Current input: 4...20 mA (extended mode)-8000...32000 (500.0 nA)
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 25±5 ゚CWithin ±0.1 %
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 0...55 ゚CWithin ±0.3 %
Sampling cycle80 ms/8 CH
Response time400 ms
Absolute maximum input: Current±30 mA

Common specifications

Isolation methodBetween I/O terminals and programmable controller power supply: Photocoupler Between input channels: Non-isolation
Dielectric withstand voltageBetween I/O terminals and programmable controller power supply: 500 V AC rms for 1 minute
Insulation resistanceBetween I/O terminals and programmable controller power supply: 500 V DC 10 MΩ or higher
HART ® modemFSK physical layer (multiplexed)
HART ® communication functionProtocol revision 7 supported 4 process variables supported FDT/DTM supported
External power supply: Voltage24 V DC (+20/-15 %, ripple, spike 500 mVp-p or lower)
External power supply: Current0.22 A (inrush current: 6.2 A, 430 µs or lower)
External interface40-point two-piece spring clamp terminal block (push-in)
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.17 A
External dimensions: Height106 mm (base unit mounting side: 98 mm)
External dimensions: Width27.8 mm
External dimensions: Depth125 mm
Weight0.21 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

R60ADI8-HA: frequently asked questions

When can R60ADI8-HA be shipped?

R60ADI8-HA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R60ADI8-HA in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R60ADI8-HA and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R60ADI8-HA, subject to availability and destination.
