What is the Mitsubishi Electric R60AD8-G?

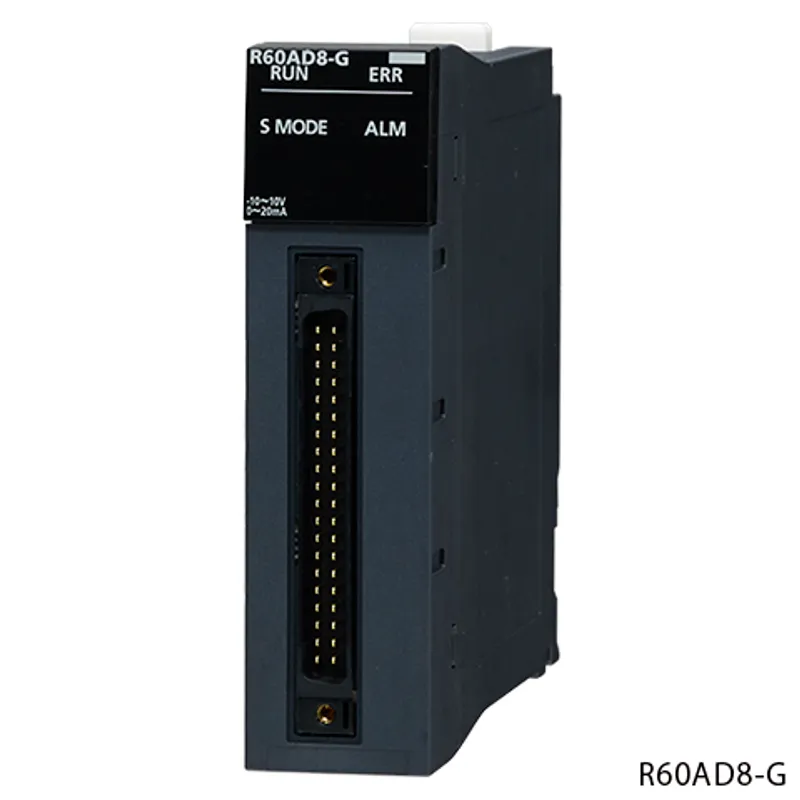

The Mitsubishi Electric R60AD8-G is a analog input in the MELSEC iQ-R Series. 8 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): -32000...32000, 0...32000, conversion speed: 10 ms/channel, 40-pin connector, channel isolated. For more information about IEC61508, please refer to the Technical News(FA-A0386). Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryAnalog input
TypeVoltage/current input
SubtypeChannel isolated
Outline8 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): -32000...32000, 0...32000, conversion speed: 10 ms/channel, 40-pin connector, channel isolated. For more information about IEC61508, please refer to the Technical News(FA-A0386).

Input specifications

Number of analog input points8 points (8 channels)
Analog input: Voltage-10...+10 V DC (input resistance 1 MΩ or more)
Analog input: Current0...20 mA DC (input resistance 250 Ω)
Digital output16-bit signed binary value (-32768...32767)
I/O characteristics, resolution: Input rangeDigital output value (resolution)
I/O characteristics, resolution: Voltage input: 0...10 V0...32000 (312.5 µV)
I/O characteristics, resolution: Voltage input: 0...5 V0...32000 (156.3 µV)
I/O characteristics, resolution: Voltage input: 1...5 V0...32000 (125.0 µV)
I/O characteristics, resolution: Voltage input: 1...5 V (extended mode)-8000...32767 (125.0 µV)
I/O characteristics, resolution: Voltage input: -10...10 V-32000...32000 (312.5 µV)
I/O characteristics, resolution: Voltage input: User range setting-32000...32000 (normal mode 29.2 µV, SIL2 mode 50.0 µV)
I/O characteristics, resolution: Current input: 0...20 mA0...32000 (625.0 nA)
I/O characteristics, resolution: Current input: 4...20 mA0...32000 (500.0 nA)
I/O characteristics, resolution: Current input: 4...20 mA (extended mode)-8000...32767 (500.0 nA)
I/O characteristics, resolution: Current input: User range setting-32000...32000 (normal mode 115.5 nA, SIL2 mode 190.6 nA)
Accuracy (accuracy relative to maximum value of the digital output value): Reference accuracyWithin ±0.1 %
Accuracy (accuracy relative to maximum value of the digital output value): Temperature coefficient±35 ppm/˚C (0.0035 %/˚C)
Accuracy of double input discrepancy detection0.5...5.0 %
Common mode characteristicCommon mode voltage between input and common ground (input voltage 0 V): 500 V AC Common mode voltage rejection ratio (VCM
A/D conversion speedNormal mode: 10 ms/channel SIL2 mode: 12 ms/channel
Response time20 ms
SIL2 A/D conversion cycle setting700...32767 ms
Control cycle time12 ms
Absolute maximum input: Voltage±15 V
Absolute maximum input: Current±30 mA

Common specifications

Isolation methodBetween input terminals and programmable controller power supply, between analog input channels: Transformer
Dielectric withstand voltageBetween input terminals and programmable controller power supply: 500 V AC rms for 1 minute Between analog input channels: 1000 V AC rms for 1 minute
Insulation resistanceBetween input terminals and programmable controller power supply, between analog input channels: 500 V DC, 10 MΩ or higher
External interface40-pin connector
External interface: Applicable connectorA6CON1, A6CON2, A6CON4 (sold separately)
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.33 A
External dimensions: Height106 mm (base unit mounting side: 98 mm)
External dimensions: Width27.8 mm
External dimensions: Depth110 mm
Weight0.19 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.
