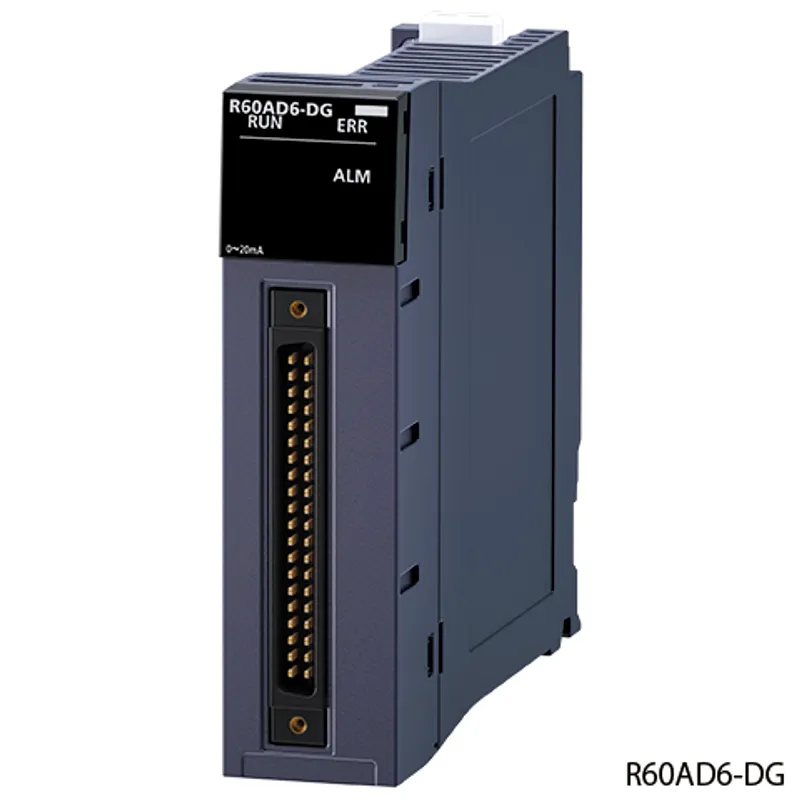

Mitsubishi Electric R60AD6-DG
Mitsubishi MELSEC iQ-R Series Analog input
- MPN
- R60AD6-DG
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →
What is the Mitsubishi Electric R60AD6-DG?
The Mitsubishi Electric R60AD6-DG is a analog input in the MELSEC iQ-R Series. 6 channels, input: 0...20 mA/4...20 mA, output (resolution): 0...32000, conversion speed: 10 ms/channel, 40-pin connector, channel isolated, power supply to 2-wire transmitter. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC iQ-R Series |
| Category | Analog input |
| Type | Signal conditioning |
| Subtype | Channel isolated |
| Outline | 6 channels, input: 0...20 mA/4...20 mA, output (resolution): 0...32000, conversion speed: 10 ms/channel, 40-pin connector, channel isolated, power supply to 2-wire transmitter |
Input specifications
| Number of analog input points | 6 points (6 channels) |
| Analog input: Current | With 2-wire transmitter: 4...20 mA DC (input resistance 250 Ω) Without 2-wire transmitter: 0...20 mA DC (input resistance 250 Ω) |
| Power supply part for 2-wire transmitter: Supply voltage | 26 ±2 V DC |
| Power supply part for 2-wire transmitter: Maximum supply current | 24 mA DC |
| Power supply part for 2-wire transmitter: Short-circuit protection | Available Limit current: 25...35 mA |
| Power supply part for 2-wire transmitter: Check terminals | Available |
| Digital output | 16-bit signed binary value (-32768...32767) |
| I/O characteristics, resolution: Input range | Digital output value (resolution) |
| I/O characteristics, resolution: Current input: 0...20 mA | 0...32000 (625.0 nA) |
| I/O characteristics, resolution: Current input: 4...20 mA | 0...32000 (500.0 nA) |
| I/O characteristics, resolution: Current input: 4...20 mA (extended mode) | -8000...32767 (500.0 nA) |
| I/O characteristics, resolution: Current input: User range setting | 0...32000 (466.0 nA) |
| Accuracy (accuracy relative to maximum value of the digital output value): Reference accuracy | Within ±0.1 % |
| Accuracy (accuracy relative to maximum value of the digital output value): Temperature coefficient | ±35 ppm/˚C (0.0035 %/˚C) |
| Conversion speed | 10 ms/channel |
| Response time | 20 ms |
| Absolute maximum input | -22 mA/+35 mA |
Common specifications
| Isolation method | Between I/O terminals and programmable controller power supply, between analog input channels, between external power supply and analog input: Transformer |
| Dielectric withstand voltage | Between I/O terminals and programmable controller power supply: 500 V AC rms for 1 minute Between analog input channels: 1000 V AC rms for 1 minute Between external power supply and analog input: 500 V AC rms for 1 minute |
| Insulation resistance | Between I/O terminals and programmable controller power supply, between analog input channels, between external power supply and analog input: 500 V DC, 10 MΩ or higher |
| External power supply: Voltage | 24 V DC (+20/-15 %, ripple, spike 500 mVp-p or lower) |
| External power supply: Current | 0.27 A (inrush current: 5.5 A, 550 µs or lower) |
| External interface | 40-pin connector |
| External interface: Applicable connector | A6CON1, A6CON2, A6CON4 (sold separately) |
| Number of occupied I/O points | 16 points (I/O assignment: Intelligent 16 points) |
| Internal current consumption (5 V DC) | 0.36 A |
| External dimensions: Height | 106 mm |
| External dimensions: Width | 27.8 mm |
| External dimensions: Depth | 110 mm |
| Weight | 0.20 kg |
Specifications
| General specifications | Refer to the general specifications of the CPU module. |
No matching specifications
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
- MELSEC iQ-R Channel Isolated Analog-Digital Converter Module (With Signal Conditioning Function) User's Manual (Startup) (SH-082298ENG-B)
- MELSEC iQ-R Channel Isolated Analog-Digital Converter Module (With Signal Conditioning Function) User's Manual (Application) (SH-082300ENG-C)
- MELSEC iQ-R Module Configuration Manual (SH-081262ENG-AU)
- Before Using the Product (BCN-P5999-1266)
- Safety Guidelines (IB-0800525)
R60AD6-DG: frequently asked questions
When can R60AD6-DG be shipped?
R60AD6-DG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R60AD6-DG in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R60AD6-DG and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R60AD6-DG, subject to availability and destination.
