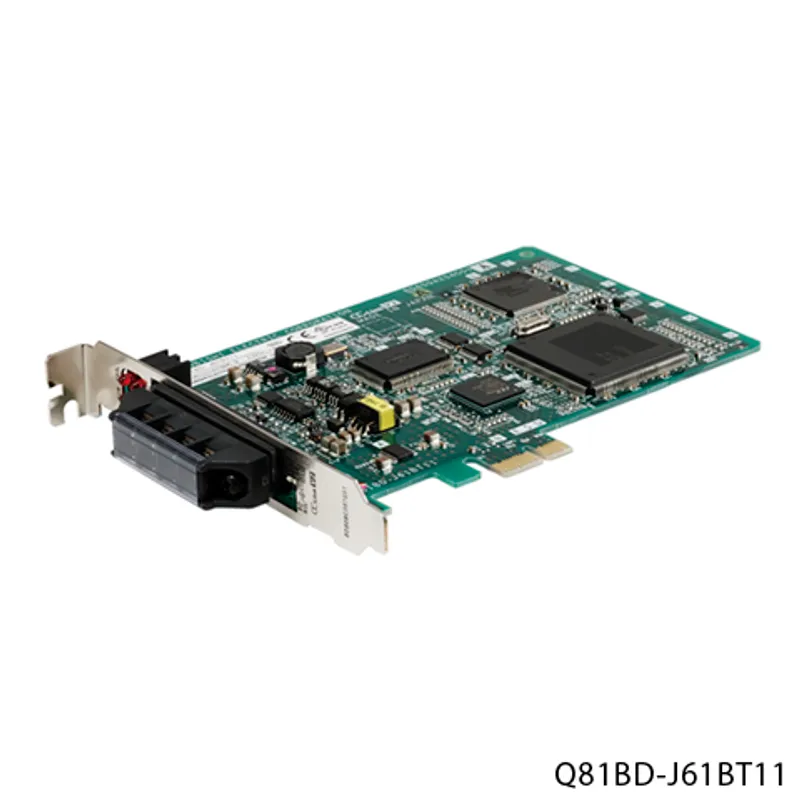

Q81BD-J61BT11 Mitsubishi MELSEC network modules Network interface boards

MPN: Q81BD-J61BT11 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can Q81BD-J61BT11 be shipped?

Q81BD-J61BT11 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q81BD-J61BT11 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q81BD-J61BT11 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q81BD-J61BT11, subject to availability and destination.

The Mitsubishi Electric Q81BD-J61BT11 is a network interface boards in the MELSEC network modules. CC-Link Ver.2 compatible manager/local station PCI Express ® slot, Japanese/English OS supported. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Network interface boards
Type	Manager/local station
Subtype	Ver.2 compatible
Outline	CC-Link Ver.2 compatible manager/local station PCI Express ® slot, Japanese/English OS supported

Specifications

Transmission speed	156 kbps/625 kbps/2.5 Mbps/5 Mbps/10 Mbps (selectable)
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 156 kbps	1200 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 625 kbps	900 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 2.5 Mbps	400 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 5 Mbps	160 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 10 Mbps	100 m
Station type	Manager station (Ver. 1 manager station or Ver. 2 manager station) Local station (Ver. 1 local station or Ver. 2 local station)
Maximum number of connected stations: Manager station	64
Number of occupied stations: Local station	In remote net Ver. 1 mode: 1 or 4 stations In remote net Ver. 2 mode, remote net additional mode: 1 ... 4 stations
Maximum number of link points per system: CC-Link Ver.1	Remote I/O (RX, RY) : 2048 points Remote register (RWw) : 256 points Remote register (RWr) : 256 points
Maximum number of link points per system: CC-Link Ver.2	Remote I/O (RX, RY) : 8192 points Remote register (RWw) : 2048 points Remote register (RWr) : 2048 points
Number of link points per station: CC-Link Ver.1	Remote I/O (RX, RY) : 32 points (local station is 30 points) Remote register (RWw) : 4 points Remote register (RWr) : 4 points
Number of link points per station: CC-Link Ver.2: Expanded cyclic setting: Single	Remote I/O (RX, RY) : 32 points (local station is 30 points) Remote register (RWw) : 4 points Remote register (RWr) : 4 points
Number of link points per station: CC-Link Ver.2: Expanded cyclic setting: Double	Remote I/O (RX, RY) : 32 points (local station is 30 points) Remote register (RWw) : 8 points Remote register (RWr) : 8 points
Number of link points per station: CC-Link Ver.2: Expanded cyclic setting: Quadruple	Remote I/O (RX, RY) : 64 points (local station is 62 points) Remote register (RWw) : 16 points Remote register (RWr) : 16 points
Number of link points per station: CC-Link Ver.2: Expanded cyclic setting: Octuple	Remote I/O (RX, RY) : 128 points (local station is 126 points) Remote register (RWw) : 32 points Remote register (RWr) : 32 points
Communication method	Broadcast polling method
Synchronization method	Frame synchronization method
Encoding method	NRZI method
Network topology	Bus (RS-485)
Transmission format	HDLC compliant
Error control system	CRC (X 16 + X 12 + X 5 + 1)
Communication cable	Ver.1.10 compatible CC-Link dedicated cable CC-Link dedicated cable (Ver.1.00 compatible) CC-Link dedicated high-performance cable (Ver.1.00 compatible)
Number of installable boards	Maximum 4 boards
Installation slot	PCI Express ® X1, X2, X4, X8, X16 slot (half size)
Exclusive slots	1 slot
Internal current consumption (3.3 V DC)	1.16 A
Weight	0.11 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007 and JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007 and JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007 and JIS B 3502: 2011	147 m/s 2 , 3 shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

Type Q80BD-J61BT11N/Q81BD-J61BT11 CC-Link System Master/Local Interface Board User's Manual (For SW1DNC-CCBD2-B) (SH-080527ENG-AI)	PDF · 6.66MB
MELSEC Data Link Library Reference Manual (SH-081035ENG-W)	PDF · 1.67MB
Before Using the Product (BCN-P5817E-G)	PDF · 0.13MB
CC-Link Ver.2 Q80BD-J61BT11N/Q81BD-J61BT11 Driver Development Reference Manual (SH-080702ENG-G)	PDF · 0.99MB
