Mitsubishi Electric Q8BAT

Mitsubishi MELSEC-Q Series Battery

MPN
Q8BAT
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

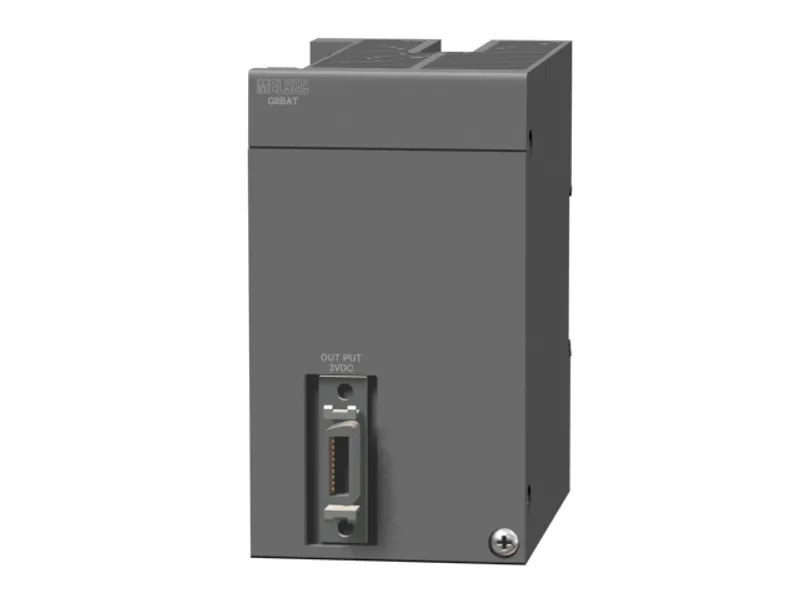

What is the Mitsubishi Electric Q8BAT?

The Mitsubishi Electric Q8BAT is a battery in the MELSEC-Q Series. Large capacity replacement battery module. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryBattery
OutlineLarge capacity replacement battery module

Specifications

ClassificationManganese dioxide lithium primary battery (assembled battery)
Initial voltage3.0 V
Nominal current18000 mAh (1800 mAh × 10 pieces)
Battery life when storedActually 5 years (room temperature)
ApplicationFor data retention of the program memory, standard RAM, and latch device during the power failure
External dimensions: Height98 mm
External dimensions: Width55.2 mm
External dimensions: Depth87 mm
OtherWhen transporting lithium batteries, please refer to the technical bulletin FA-A-0222 "Precautions for Transport Recommendations on Lithium Batteries".

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

Q8BAT: frequently asked questions

When can Q8BAT be shipped?

Q8BAT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q8BAT in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q8BAT and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q8BAT, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

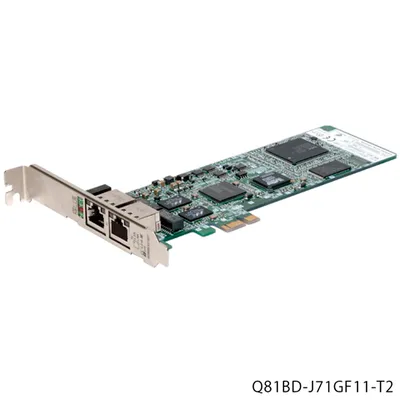

Mitsubishi Electric Q81BD-J71GF11-T2 – Mitsubishi MELSEC network modules Network interface boards
Mitsubishi Electric
Q81BD-J71GF11-T2

Mitsubishi MELSEC network modules Network interface boards

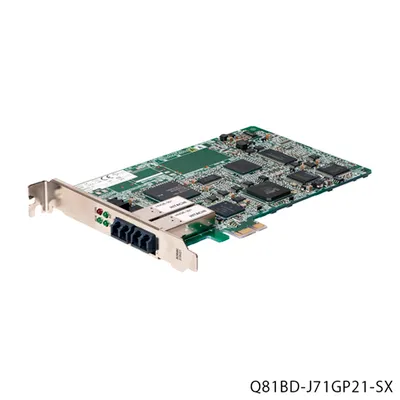

Mitsubishi Electric Q81BD-J71GP21-SX – Mitsubishi MELSEC network modules Network interface boards
