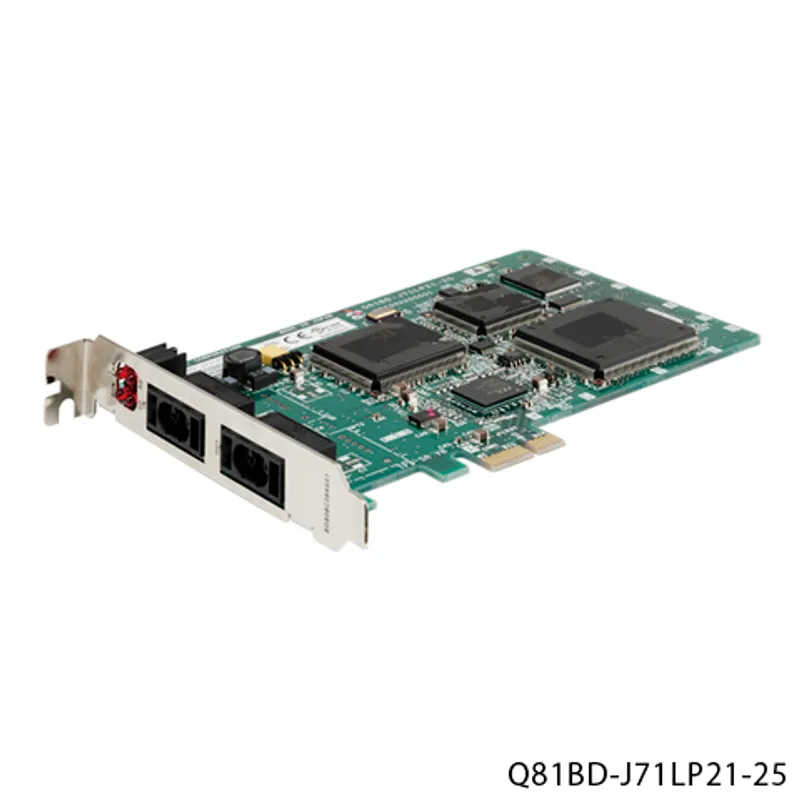

Mitsubishi Electric Q81BD-J71LP21-25

Mitsubishi MELSEC network modules Network interface boards

MPN
Q81BD-J71LP21-25
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric Q81BD-J71LP21-25?

The Mitsubishi Electric Q81BD-J71LP21-25 is a network interface boards in the MELSEC network modules. MELSECNET/H PLC-PLC network, master/local station, SI/QSI optical cable. dual loop, PCI Express ® slot, Japanese/English OS supported. Mitsubishi Electric has announced its discontinuation (2027/12 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryNetwork interface boards
TypeOptical loop (SI/QSI cable)
SubtypePLC to PLC network
Sales status2027/12 To be end of order (Mitsubishi Electric)
OutlineMELSECNET/H PLC-PLC network, master/local station, SI/QSI optical cable. dual loop, PCI Express ® slot, Japanese/English OS supported

Specifications

Maximum number of link points per network: LX/LY8192 points
Maximum number of link points per network: LB16384 points (MELSECNET/10 mode: 8192 points)
Maximum number of link points per network: LW16384 points (MELSECNET/10 mode: 8192 points)
Maximum number of link points per station: PLC to PLC network• MELSECNET/H mode, MELSECNET/10 mode: {(LY+LB)/8+(2×LW)}≦2000 bytes • MELSECNET/H Extended mode: {(LY+LB)/8+(2×LW)}≦35840 bytes
Communication speed25 Mbps/10 Mbps
Maximum number of connectable stations: PLC to PLC network64 stations (Control station: 1, Normal stations: 63)
Overall cable distance30 km
Maximum station-to-station distanceSI optical cables: 200 m (25 Mbps), 500 m (10 Mbps) H-PCF optical cables: 400 m (25 Mbps), 1 km (10 Mbps) Broad-band H-PCF Optical Cables: 1 km QSI optical cables: 1 km
Communication cableSI optical cables, H-PCF optical cables, Broad-band H-PCF Optical Cables, QSI optical cables
Applicable connector2-core optical connector plug F06/F08 or equivalent (JIS C5975/5977 compliant)
Maximum number of networks239
Maximum number of groups32 (MELSECNET/10 mode: 9)
Network topologyDuplex loop
Communication methodToken ring
Synchronization methodFrame synchronization method
Encoding methodNRZI method
Transmission formatHDLC compliant (frame type)
Error control systemRetries based on CRC (X 16 + X 12 + X 5 + 1) and timeover
Number of installable boardsMaximum 4 boards
Installation slotPCI Express ® X1, X2, X4, X8, X16 slot (half size)
Exclusive slots1 slot
Internal current consumption (3.3 V DC)1.06 A
Weight0.10 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-25...75 ˚C
Operating ambient humidity5...95 %RH, non-condensing
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007 and JIS B 3502: 2011: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007 and JIS B 3502: 2011: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007 and JIS B 3502: 2011147 m/s 2 , 3 shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

Q81BD-J71LP21-25: frequently asked questions

When can Q81BD-J71LP21-25 be shipped?

Q81BD-J71LP21-25 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q81BD-J71LP21-25 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q81BD-J71LP21-25 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q81BD-J71LP21-25, subject to availability and destination.
