Q81BD-J71GF11-T2 Mitsubishi MELSEC network modules Network interface boards

MPN: Q81BD-J71GF11-T2 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link IE Field
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can Q81BD-J71GF11-T2 be shipped?

Q81BD-J71GF11-T2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q81BD-J71GF11-T2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q81BD-J71GF11-T2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q81BD-J71GF11-T2, subject to availability and destination.

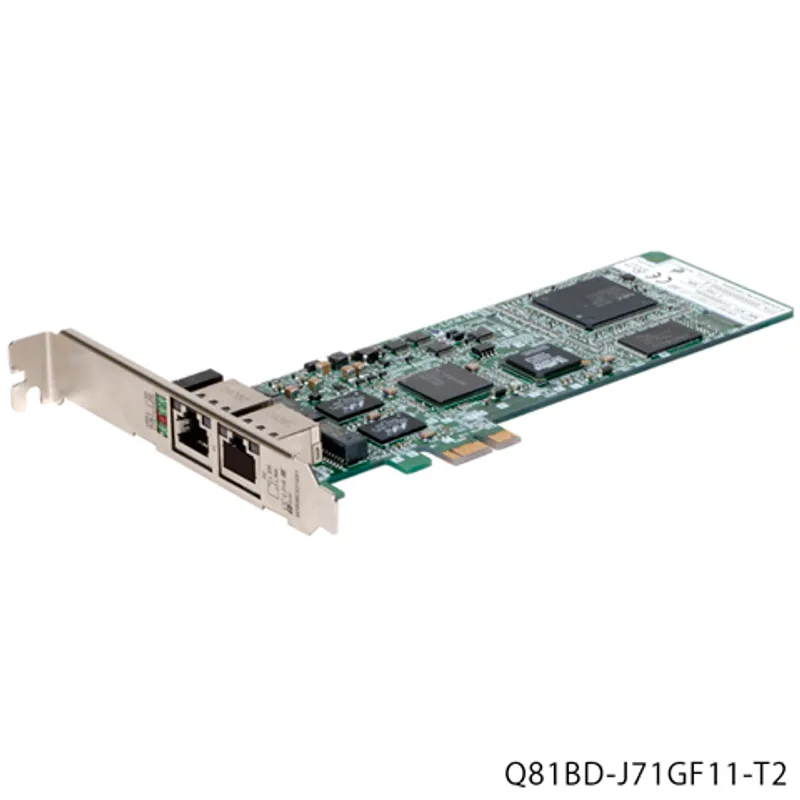

The Mitsubishi Electric Q81BD-J71GF11-T2 is a network interface boards in the MELSEC network modules. CC-Link IE Field Network, manager/local station, PCI Express ® slot, Japanese/English OS supported. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Network interface boards
Type	Manager/local station
Outline	CC-Link IE Field Network, manager/local station, PCI Express ® slot, Japanese/English OS supported

Specifications

Maximum number of link points per network: RX	16K points (16384 points, 2K bytes)
Maximum number of link points per network: RY	16K points (16384 points, 2K bytes)
Maximum number of link points per network: RWr	8K points (8192 points, 16K bytes)
Maximum number of link points per network: RWw	8K points (8192 points, 16K bytes)
Maximum number of link points per station: Manager station: RX	16K points (16384 points, 2K bytes)
Maximum number of link points per station: Manager station: RY	16K points (16384 points, 2K bytes)
Maximum number of link points per station: Manager station: RWr	8K points (8192 points, 16K bytes)
Maximum number of link points per station: Manager station: RWw	8K points (8192 points, 16K bytes)
Maximum number of link points per station: Local station: RX	2K points (2048 points, 256K bytes)
Maximum number of link points per station: Local station: RY	2K points (2048 points, 256K bytes)
Maximum number of link points per station: Local station: RWr	1K points (1024 points, 2K bytes) 256 points (512 bytes) when communication mode is "High-Speed"
Maximum number of link points per station: Local station: RWw	1K points (1024 points, 2K bytes) 256 points (512 bytes) when communication mode is "High-Speed"
Communication speed	1 Gbps
Network topology	Line topology, star topology (Coexistence of line topology and star topology is possible.), and ring topology
Communication cable	An Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable
Maximum station-to-station distance	100 m (conforms to ANSI/TIA/EIA-568-B (Category 5e))
Overall cable distance	Line topology: 12000 m (when 121 stations are connected) Star topology: Depends on the system configuration Ring topology: 12100 m (when 121 stations are connected)
Number of cascade connections	20 levels maximum
Maximum number of connectable stations	121 stations (manager station: 1, device station: 120)
Maximum number of networks	239
Communication method	Token passing method
Number of installable boards	Up to 4
Installation slot	PCI Express ® X1, X4, X8, X16 slot (standard/low profile, half size)
Exclusive slots	1 slot
Internal current consumption (3.3 V DC)	1.68 A
Weight	Standard size: 0.08 kg Low profile size : 0.07 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007 and JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007 and JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007 and JIS B 3502: 2011	147 m/s 2 , 3 shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

CC-Link IE Field Network Interface Board User's Manual (For SW1DNC-CCIEF-B) (SH-080980ENG-Y)	PDF · 14.66MB
MELSEC Data Link Library Reference Manual (SH-081035ENG-W)	PDF · 1.67MB
Before Using the Product (BCN-P5856)	PDF · 0.13MB
CC-Link IE Field Network Q80BD-J71GF11-T2/Q81BD-J71GF11-T2 Driver Development Reference Manual (SH-081155ENG-D)	PDF · 2.83MB
