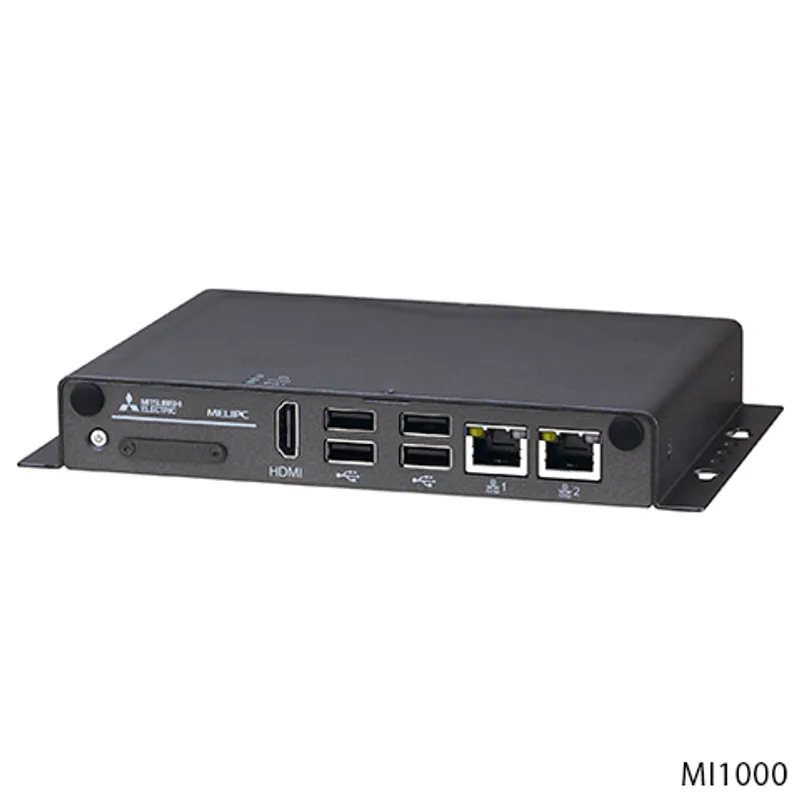

MI1002-W Mitsubishi MELIPC
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original MI1002-W (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELIPC – MELIPC |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the MI1002-W now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the MI1002-W, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can MI1002-W be shipped?
MI1002-W is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up MI1002-W in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for MI1002-W and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MI1002-W, subject to availability and destination.
The Mitsubishi Electric MI1002-W is a MELIPC in the MELIPC. Windows ® 10 IoT Enterprise 2016 LTSB (64bit). Mitsubishi Electric has discontinued it (2023/07 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELIPC |
| Sales status | 2023/07 Discontinued (Mitsubishi Electric) |
| Outline | Windows ® 10 IoT Enterprise 2016 LTSB (64bit) |
Specifications
| Series name | MI1000 |
| Product name | MELIPC |
| Model | MI1002-W |
| Hardware: MPU | Intel ® Atom™ E3826 |
| Hardware: Main memory | 4 GB |
| Hardware: Internal storage capacity | 60 GB |
| Hardware: Extended storage interface | – |
| Software: OS | Windows ® 10 IoT Enterprise 2016 LTSB (64bit) |
| Software: Programming language | Language supporting above OS |
| Software: Format of dedicated APIs | – |
| Display interface: Interface | HDMI x 1 |
| Display interface: Resolution | Max. 1920 x 1080 *1 |
| Extended slot: PCI Express ® | – |
| Extended slot: mini PCI Express ® | – |
| Extended slot: PCI | – |
| RS-232: Number of channels | 2 |
| RS-232: Transmission rate | 9600...115200 bps |
| RS-422: Number of channels | – |
| RS-422: Transmission rate | – |
| RS-485: Number of channels | 1 |
| RS-485: Transmission rate | 75...115200 bps |
| USB: USB3.0 | – |
| USB: USB2.0 | 4 |
| Sound output (φ3.5 mini-jack (3-prong)): Interface | – |
| Sound output (φ3.5 mini-jack (3-prong)): Number of ports | – |
| Power supply: Rated input voltage | AC adapter (input voltage: 100...240 V AC, output voltage: 12 V DC) *2 |
| Power supply: Input voltage variable range | 90...264 V AC |
| Power supply: Input frequency | 47...63 Hz |
| Power supply: Maximum input apparent power | 140 VA |
| External dimensions (H x W x D) | 26 x 186 x 150 mm |
| Panel cutting dimensions (H x W) | – |
| Weight | 0.90 kg (excluding AC adapter) |
Specifications
| Ethernet: Interface | 10BASE-T/100BASE-TX/1000BASE-T |
| Ethernet: Number of channels | 2 |
| CC-Link IE Field Network: Station type | – |
| CC-Link IE Field Network: Communications speed | – |
| CC-Link IE Field Network: Maximum number of connected stations | – |
| CC-Link IE Field Network: Number of ports | – |
| CC-Link IE Field Network: Communications cable | – |
| CC-Link IE Field Network: Network topology | – |
| CC-Link IE Field Network: Overall cable distance | – |
| CC-Link IE Field Network: Maximum distance between stations | – |
| CC-Link IE Field Network Basic: Station type | – |
| CC-Link IE Field Network Basic: Number of remote stations on 1 network | – |
| CC-Link IE Field Network Basic: Number of ports | – |
| CC-Link IE Field Network Basic: Network topology | – |
Specifications
| Operating ambient temperature | 0...55°C |
| Storage ambient temperature | -20...75°C |
| Operating ambient humidity | 10...85% RH, non-condensing |
| Storage ambient humidity | 10...85% RH, non-condensing |
| Vibration resistance: Sine wave vibration | Compliant with IEC60068-2-6 5...500 Hz, 1 oct/min, one hour in direction X, Y, Z each, 2 Grms (wall installation) |
| Vibration resistance: Random vibration | Compliant with IEC60068-2-64 5...500 Hz, 1 oct/min, one hour in direction X, Y, Z each, 2 Grms (wall installation) |
| Shock resistance | Compliant with IEC-60068-2-27, 50 G, half sine wave, 11 msec |
| Operating atmosphere | No corrosive gases, no flammable gases, no excessive conductive dust |
| Operating altitude *4 *5 | – |
| Installation location | Stable location where product is less affected by electric field and magnetic field |
| Overvoltage category *6 | Ⅱ or less |
| Pollution degree *7 | 2 or less |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| MITSUBISHI ELECTRIC INDUSTRIAL PC MI1002-W, MI1002-W-CL START-UP GUIDE (BCN-P5999-0990) | PDF · 0.98MB |
| MI1002-W User's Manual (SH-081992ENG-E) | PDF · 1.77MB |
