Home / Mitsubishi Electric (Factory Automation) / Mitsubishi MELIPC – MELIPC / MI2012-W-CL Mitsubishi MELIPC

Available on request

MI2012-W-CL Mitsubishi MELIPC

MPN: MI2012-W-CL · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original MI2012-W-CL (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELIPC – MELIPC
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the MI2012-W-CL now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the MI2012-W-CL, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can MI2012-W-CL be shipped?

MI2012-W-CL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up MI2012-W-CL in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for MI2012-W-CL and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MI2012-W-CL, subject to availability and destination.

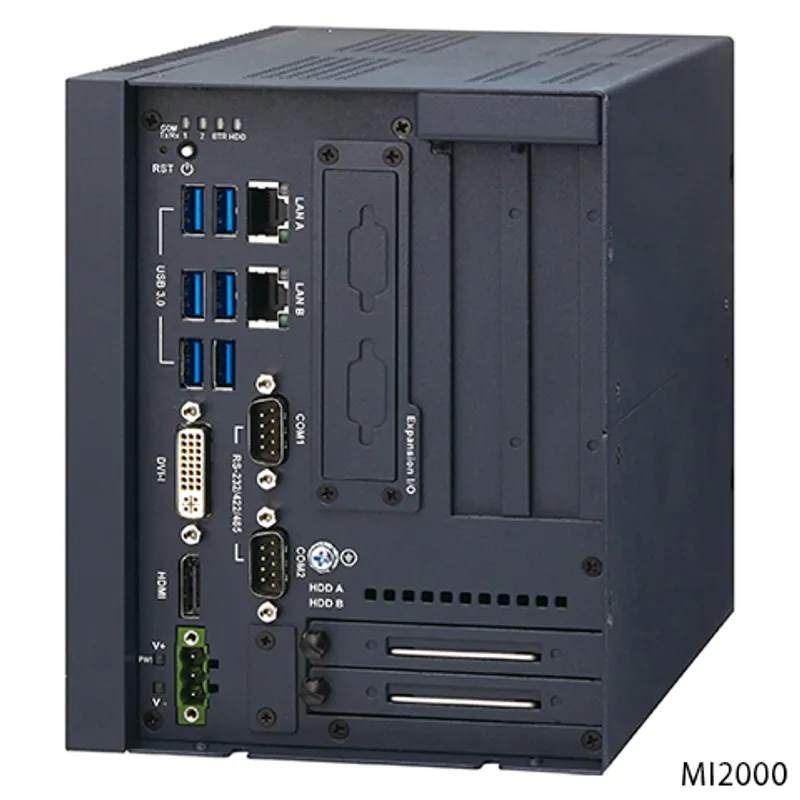

The Mitsubishi Electric MI2012-W-CL is a MELIPC in the MELIPC. Windows ® 10 IoT Enterprise 2016 LTSB (64bit). Mitsubishi Electric has discontinued it (2026/04 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELIPC
Sales status	2026/04 Discontinued (Mitsubishi Electric)
Outline	Windows ® 10 IoT Enterprise 2016 LTSB (64bit)

Specifications

Series name	MI2000
Product name	MELIPC
Model	MI2012-W-CL
Hardware: MPU	Intel ® Core™ i3-6102E
Hardware: Main memory	8 GB
Hardware: Internal storage capacity	64 GB
Hardware: Extended storage interface	2.5” SATA SSD/HDD x 2 CFast card x 1 *1
Software: OS	Windows ® 10 IoT Enterprise 2016 LTSB (64bit)
Software: Programming language	Language supporting above OS
Software: Format of dedicated APIs	–
Display interface: Interface	HDMI x 1, DVI-I x 1
Display interface: Resolution	Max. 1920 x 1080 *2
Extended slot: PCI Express ®	x1, x2, x4, x8, x16 (half-size) x 1
Extended slot: mini PCI Express ®	Full-size x 2
Extended slot: PCI	Half-size x 1
RS-232: Number of channels	2 (RS-422/485 can also be used)
RS-232: Transmission rate	9600...115200 bps
RS-422: Number of channels	2 (RS-232/485 can also be used)
RS-422: Transmission rate	75...115200 bps
RS-485: Number of channels	2 (RS-232/422 can also be used)
RS-485: Transmission rate	75...115200 bps
USB: USB3.0	6
USB: USB2.0	–
Sound output (φ3.5 mini-jack (3-prong)): Interface	–
Sound output (φ3.5 mini-jack (3-prong)): Number of ports	–
Power supply: Rated input voltage	AC adapter (input voltage: 100...240 V AC, output voltage: 24 V DC) *4
Power supply: Input voltage variable range	90...264 V AC
Power supply: Input frequency	47...63 Hz
Power supply: Maximum input apparent power	170 VA
External dimensions (H x W x D)	177 x 142 x 238 mm
Panel cutting dimensions (H x W)	–
Weight	3.9 kg

Specifications

Ethernet: Interface	10BASE-T/100BASE-TX/1000BASE-T
Ethernet: Number of channels	2
CC-Link IE Field Network: Station type	–
CC-Link IE Field Network: Communications speed	–
CC-Link IE Field Network: Maximum number of connected stations	–
CC-Link IE Field Network: Number of ports	–
CC-Link IE Field Network: Communications cable	–
CC-Link IE Field Network: Network topology	–
CC-Link IE Field Network: Overall cable distance	–
CC-Link IE Field Network: Maximum distance between stations	–
CC-Link IE Field Network Basic: Station type	–
CC-Link IE Field Network Basic: Number of remote stations on 1 network	–
CC-Link IE Field Network Basic: Number of ports	–
CC-Link IE Field Network Basic: Network topology	–

Specifications

Operating ambient temperature	0...55°C
Storage ambient temperature	-40...75°C
Operating ambient humidity	10...90% RH, non-condensing
Storage ambient humidity	10...90% RH, non-condensing
Vibration resistance: Sine wave vibration	Compliant with IEC60068-2-6 5...500 Hz, 1 oct/min, one hour in direction X, Y, Z each
Vibration resistance: Random vibration	Compliant with IEC60068-2-64 5...500 Hz, 1 oct/min, one hour in direction X, Y, Z each,4 Grms (1.5 Grms when HDD is used)
Shock resistance	Compliant with IEC-60068-2-27, 50 G, half sine wave, 11 msec
Operating atmosphere	No corrosive gases, no flammable gases, no excessive conductive dust
Operating altitude 5 6	–
Installation location	Stable location where product is less affected by electric field and magnetic field
Overvoltage category *7	Ⅱ or less
Pollution degree *8	2 or less
