MI2332-W Mitsubishi MELIPC

MPN: MI2332-W · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELIPC – MELIPC
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can MI2332-W be shipped?

MI2332-W is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up MI2332-W in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for MI2332-W and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MI2332-W, subject to availability and destination.

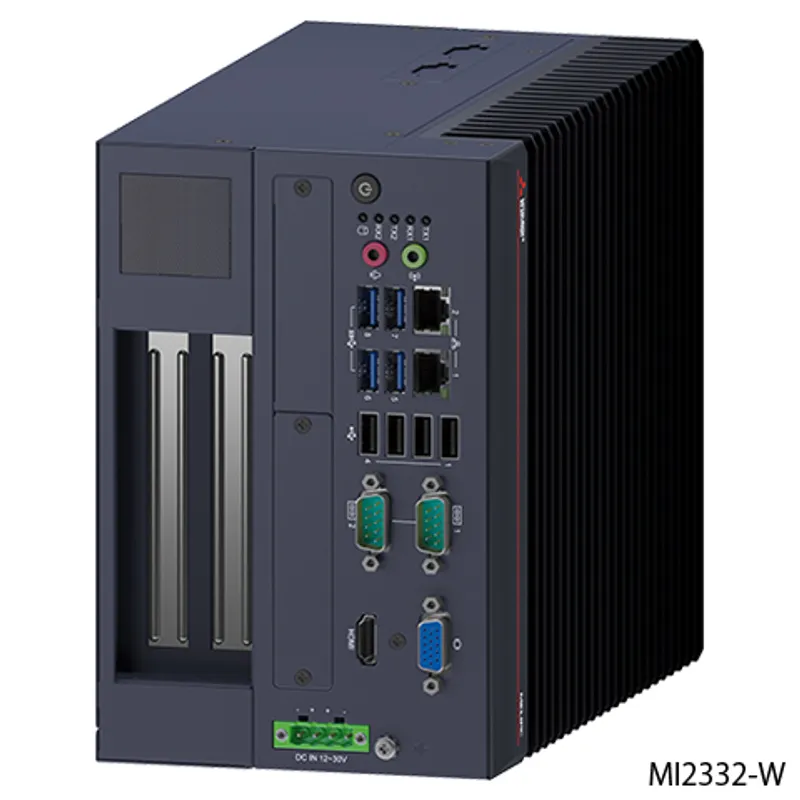

The Mitsubishi Electric MI2332-W is a MELIPC in the MELIPC. Windows 11 IoT Enterprise LTSC 2024. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELIPC
Outline	Windows 11 IoT Enterprise LTSC 2024

Specifications

Model	MI2332-W
Processor	13th generation Intel Core i3-13100TE 4 cores and 2.4 GHz
PCH	Intel H610E Chipset
Storage	mSATA SSD ・Capacity: 128 GB
Memory	DDR5 4800 MHz RAM ・Capacity: 16 GB
Chipset integrated Intel HD Graphic	Intel UHD Graphics 730 ・DirectX 12 supported ・OpenGL 4.5 supported ・Intel Quick Sync Video supported ・Input/output interface VGA: Maximum resolution 1920 x 1200 @ 60 Hz (VGA connector: Onboard D-SUB 15P) HDMI: Maximum resolution 4096 x 2160 @ 30 Hz (HDMI connector: Onboard HDMI)
SATA interface	SATA 3.0: 1 unit ・Legacy IED (including IRQ)/native AHCI appearance to OS ・Partial/hibernation power management mode with wake ・Transfer speed 6 Gbit/s ・One drive bay space for SATA 2.5-inch HDD/SSD supported
USB interface	USB 3.2 (Gen 1): 4 units, USB 2.0: 4 units ・High speed, full speed, and low speed supported ・Legacy keyboard/mouse software supported
Power supply	Power connector (plug-in block 4P): 1 unit ・ACPI 5.0 supported ・ACPI power management logic supported
BIOS	AMI 256 Mb Flash
Serial port	Serial port connector: D-SUB CON.9P ・Two serial ports by Nuvoton NCT6126D supported ・High-speed UART with a maximum data rate of 1.5 Mbps supported ・IRQ sharing between serial ports supported ・COM1/2: RS-232/RS-422/RS-485 (Communication standard switching by BIOS supported) (Automatic flow control supported)
LAN	LAN1: Intel I219V (PHY), LAN2: Intel I210IT (NIC) ・Compliant with IEEE 802.3u and IEEE 802.3ab ・10 Mbps/100 Mbps/1 Gbps supported ・Wake on LAN supported (LAN1 only)
PCIe	PCIe (x 4) socket: 1 unit, PCIe (x 16) socket: 1 unit ・Maximum power supply PCIe (x 4): 15 W PCIe (x 16): 75 W
Audio	Audio codec: Realtek ALC888S ・Compliant with the HD Audio specification ・16/20/24-bit DAC and 16/20/24-bit ADC resolutions supported ・Line output and microphone input supported ・16/20/24-bit PCM format and multiple stereo recording supported by DAC
Battery backup	BR2032 3 V/190 mAh
Fan	PCIe board cooling fan: 9651752000E ・Life: 60000 hrs @ 40°C (15 to 65% RH) ・The fans can be removed when not using a PCIe board.

Specifications

System power supply: Rated voltage	12 to 30 VDC (The voltage fluctuation includes ±5% ripple.)
System power supply: Rated current	12 A (12 V input), 6 A (30 V input)
CMOS battery	BR2032 3 V/190 mAh

Specifications

Operating ambient temperature	0 to 55°C (32 to 131℉)
Storage ambient temperature	-40 to 75°C (-40 to 167℉)
Operating ambient humidity	5 to 95% RH (non-condensing)
Storage ambient humidity	5 to 95% RH (non-condensing)
Vibration resistance: Compliant with IEC 60068-2-64	■When not installing a 2.5-inch HDD in the system 3 Grms, random, 5 to 500 Hz, 1 hour for each of the X, Y, and Z axes
Vibration resistance: Shock resistance: Compliant with IEC 60068-2-27	■When installing a 2.5-inch HDD in the system 1 Grms, random, 5 to 500 Hz, 1 hour for each of the X, Y, and Z axes
Operating atmosphere	■When not installing a 2.5-inch HDD in the system 20 G, half-sinusoidal, 11 ms
Operating altitude *1	No corrosive gases, flammable gases, less conductive dust
Installation location *2	0 to 2000 m
Pollution degree *3	A stable location with minimal influence from electric and magnetic fields

Specifications

General: CPU	13th generation Intel Core desktop processor
General: OS	Windows 11 IoT Enterprise LTSC 2024
General: PCH	Intel H610E
General: Memory	Dual channel DDR5 4800 MHz
General: Storage *4	2.5-inch HDD/SSD drive bay for SATA: 1 unit
General: mSATA SSD	1 unit (Mini PCIe slot)
General: Graphics	・VGA ・HDMI
General: Ethernet	RJ-45: 2 ports
General: Serial port	2 ports RS-232/RS-422/RS-485 (Automatic flow control supported)
General: USB	・USB 3.2 (Gen 1): 4 units ・USB 2.0: 4 units
General: Audio	・Line output ・Microphone input
General: Expansion interface	・PCIe x 4: 1 unit ・PCIe x 16: 1 unit
Display: VGA	Up to 1920 x 1200 @ 60 Hz supported
Display: HDMI	Up to 4096 x 2160 @ 30 Hz supported
Ethernet: Controller	・LAN1: Intel I219V ・LAN2: Intel I210IT
Ethernet: Speed	10 Mbps/100 Mbps/1 Gbps
Ethernet: Interface	RJ-45: 2 ports
Ethernet: Standard	Compliant with IEEE 802.3u and IEEE 802.3ab
