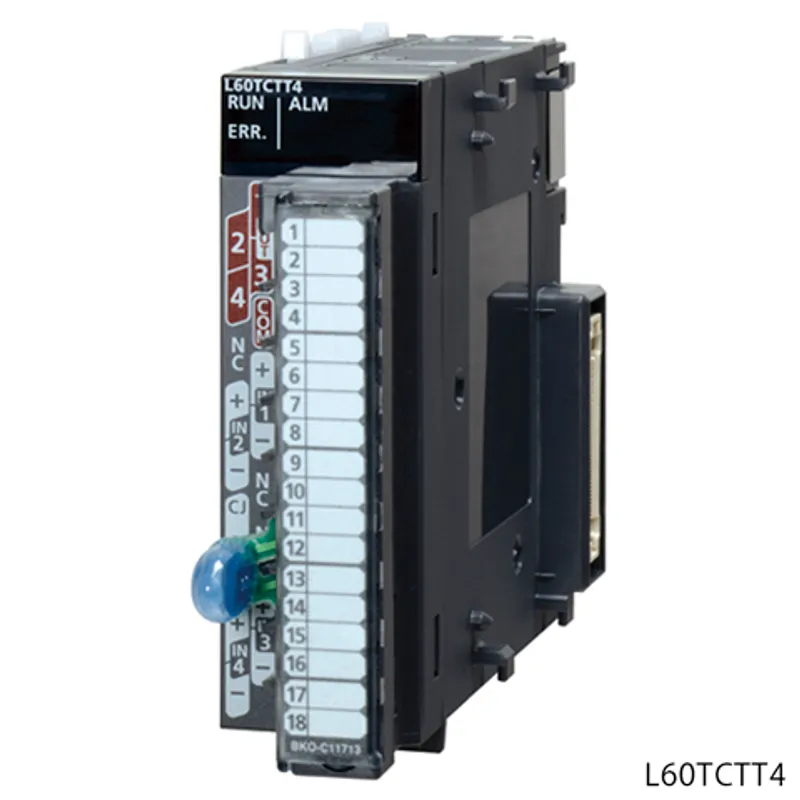

The Mitsubishi Electric L60TCTT4 is a temperature control in the MELSEC-L Series. 4 channels, thermocouple (K, J, T, B, S, E, R, N, U, L, PLII, W5Re/W26Re), no heater disconnection detection, sampling cycle: 250 ms/4 channels, 500 ms/4 channels, 18-point terminal block, channel isolated, heating-cooling control. Mitsubishi Electric has announced its discontinuation (2027/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-L Series
Category	Temperature control
Type	Thermocouple input
Subtype	Without heater disconnection detection
Sales status	2027/09 To be end of order (Mitsubishi Electric)
Outline	4 channels, thermocouple (K, J, T, B, S, E, R, N, U, L, PLII, W5Re/W26Re), no heater disconnection detection, sampling cycle: 250 ms/4 channels, 500 ms/4 channels, 18-point terminal block, channel isolated, heating-cooling control

Specifications

Control output	Transistor output
Number of temperature input points	4 channels/module
Applicable thermocouple	R, K, J, T, S, B, E, N, U, L, PLII, W5Re/W26Re
Accuracy: Indication accuracy: Ambient temperature: 25±5 ˚C	Full scale × (±0.3 %)
Accuracy: Indication accuracy: Ambient temperature: 0...55 ˚C	Full scale × (±0.7 %)
Accuracy: Cold junction compensation accuracy: (ambient temperature: 0...55 ˚C): Measured temperature: -100 ˚C or more	Within ±1.0 ˚C
Accuracy: Cold junction compensation accuracy: (ambient temperature: 0...55 ˚C): Measured temperature: -150...-100 ˚C	Within ±2.0 ˚C
Accuracy: Cold junction compensation accuracy: (ambient temperature: 0...55 ˚C): Measured temperature: -200...-150 ˚C	Within ±3.0 ˚C
Sampling cycle	250 ms/4 channels, 500 ms/4 channels
Control output cycle	0.5...100 s
Input impedance	1 MΩ
Input filter	0...100 s (0: Input filter OFF)
Sensor correction value setting	-50.00...50.00 %
Operation at sensor input disconnection	Up-scale processing
Temperature control method	PID ON/OFF pulse or two-position control
PID constants range: PID constants setting	Can be set by auto tuning.
PID constants range: Proportional band (P)	0.0...1000.0 % (0.0: Two-position control)
PID constants range: Integral time (I)	0...3600 s (set 0 for P control and PD control)
PID constants range: Derivative time (D)	0...3600 s (set 0 for P control and PI control)
Set value (SV) setting range	Within the temperature range set by the thermocouple to be used.
Dead band setting range	0.1...10.0 %
Transistor output: Output signal	ON/OFF pulse
Transistor output: Rated load voltage	10...30 V DC
Transistor output: Maximum load current	0.1 A/point, 0.4 A/common
Transistor output: Maximum inrush current	0.4 A, 10 ms
Transistor output: Leakage current at OFF	0.1 mA or less
Transistor output: Maximum voltage drop at ON	1.0 V DC (TYP.) 0.1 A, 2.5 V DC (MAX.) 0.1 A
Transistor output: Response time: OFF to ON	2 ms or less
Transistor output: Response time: ON to OFF	2 ms or less
Isolation method	Between input terminals and programmable controller power supply, between input channels: Transformer
Dielectric withstand voltage	Between input terminals and programmable controller power supply, between input channels: 500 V AC for 1 minute
Insulation resistance	Between input terminals and programmable controller power supply, between input channels: 500 V DC, 20 MΩ or higher
External interface	18-point terminal block (M3 screw)
Number of occupied I/O points	16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)	0.30 A
External dimensions: Height	90 mm
External dimensions: Width	28.5 mm
External dimensions: Depth	117 mm
Weight	0.18 kg
