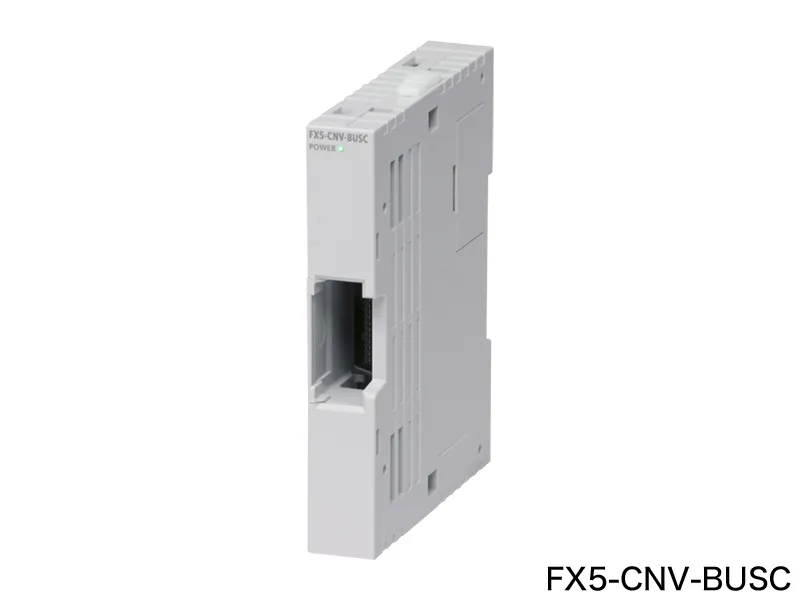

FX5-CNV-BUSC Mitsubishi MELSEC iQ-F Series Option
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC iQ-F Series – Option |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can FX5-CNV-BUSC be shipped?
FX5-CNV-BUSC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FX5-CNV-BUSC in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FX5-CNV-BUSC and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-CNV-BUSC, subject to availability and destination.
The Mitsubishi Electric FX5-CNV-BUSC is a option in the MELSEC iQ-F Series. Bus conversion from FX5 (expansion connector type) to FX3 extension module. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC iQ-F Series |
| Category | Option |
| Outline | Bus conversion from FX5 (expansion connector type) to FX3 extension module |
Specifications
| Applicable CPU module | FX5U CPU module* FX5UC CPU module * Connection with FX5U CPU module requires FX5-CNV-IF. |
| Number of occupied I/O points | 8 points |
| Mass (weight) | Approx. 0.1 kg |
| Number of connectable modules | Max. 1 module |
Power supply specifications
| Rated voltage (Internal power supply) | 5 V DC |
| Current consumption (Internal power supply) | 150 mA |
The general specifications other than below are the same as those for the CPU module.
| Operating ambient temperature | 0 to 55℃ |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| MELSEC iQ-F FX5S/FX5UJ/FX5U/FX5UC User's Manual (Hardware) (SH-082452ENG-Q) | PDF · 7.58MB |
| MELSEC iQ-F FX5-CNV-BUSC Hardware Manual (JY997D61101) | PDF · 0.36MB |
