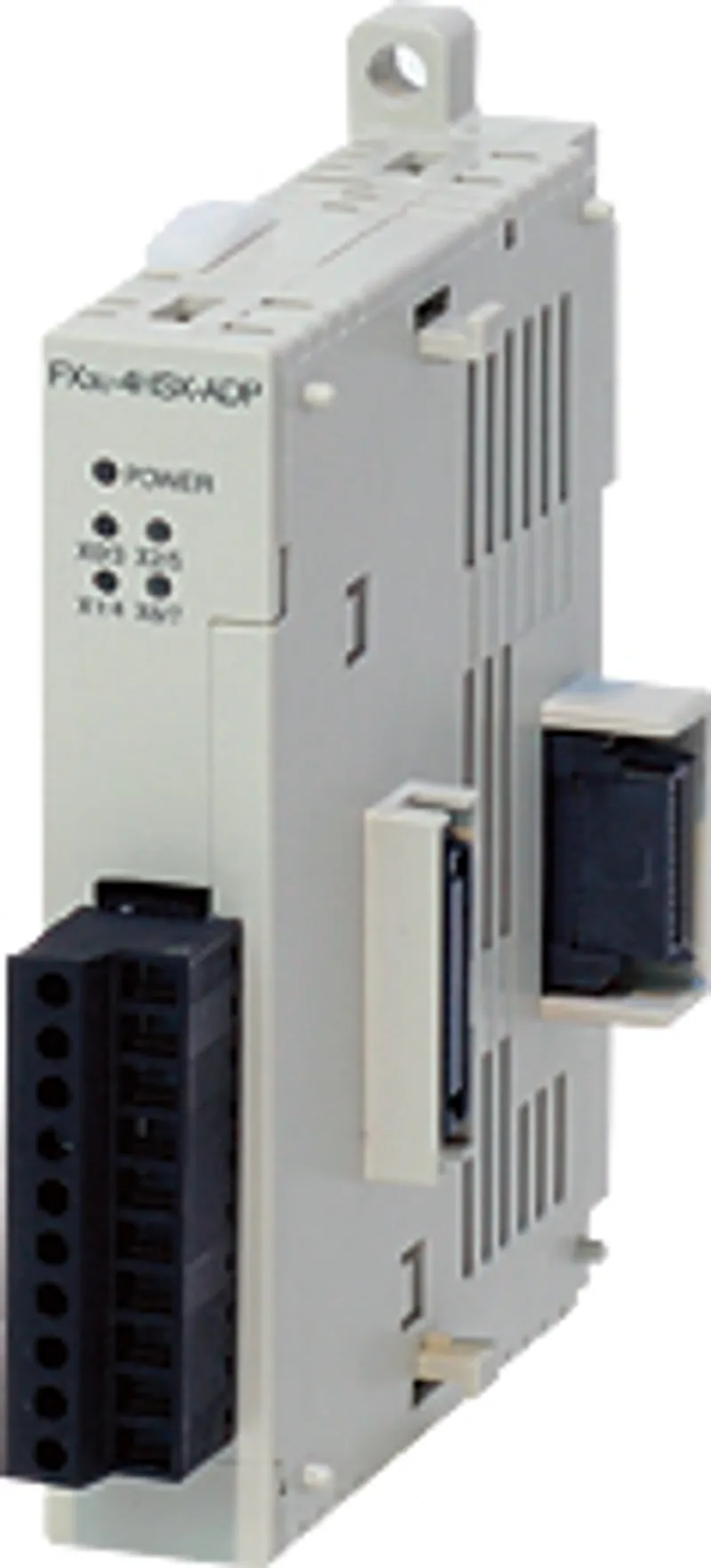

Mitsubishi Electric FX3U-4HSX-ADP

Mitsubishi MELSEC-F (FX) Series High-speed counter

MPN
FX3U-4HSX-ADP
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric FX3U-4HSX-ADP?

The Mitsubishi Electric FX3U-4HSX-ADP is a high-speed counter in the MELSEC-F (FX) Series. High-speed counter: 4 ch. Mitsubishi Electric has announced its discontinuation (2028/03 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-F (FX) Series
CategoryHigh-speed counter
Sales status2028/03 To be end of order (Mitsubishi Electric)
OutlineHigh-speed counter: 4 ch

Specifications

Applicable PLCFX3U A function expansion board is required when an analog/communication adapter is connected. It is not required for connection of the high-speed I/O adapter.
Number of occupied I/O pointsWhen 1st adapter is connected: X000 to X002, X006 are used When 2nd adapter is connected: X003 to X005, X007 are used
Mass (weight)0.08 kg
Range-2,147,483,648 to +2,147,483,647
Counter modeIn accordance with a sequence program
LEDX0/3, X1/4, X2/5, X6/7, POWER
No. of input channels4 ch
Input typeDifferential line receiver (Equivalent to AM26C32)
Input voltage5 V DC
Max. response frequency: 1-phase 1-input200 kHz (in accordance with a sequence program)
Max. response frequency: 1-phase 2-input200 kHz (in accordance with a sequence program)
Max. response frequency: 2-phase 2-input100 kHz (in accordance with a sequence program) High-speed counter operated as hardware counter The maximum input frequency for the software counter will be the same as the maximum input frequency of when the main unit counts pulses via the input terminal. It also means the hardware counter is operated as a software counter.
Match output (comparison)In accordance with a sequence program
Isolation methodExternal cables of input area are insulated from PLC by photo coupler and transformer.

Power supply specifications

Power supply5 V DC 30 mA (internal power supply from PLC main unit) 24 V DC 30 mA (internal power supply from PLC main unit)

Specifications

Ambient temperature0 to 55°C (32 to 131 °F) when operating and -25 to 75°C (-13 to 167 °F) when stored
Ambient humidity5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 HzHalf amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 HzAcceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 HzHalf amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 HzAcceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistanceBy noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltageBetween input terminal of high-speed input special adapter and ground terminal of PLC main unit: 500 V AC for 1 min
Insulation resistanceBetween input terminal of high-speed input special adapter and ground terminal of PLC main unit: 5 MΩ or higher by 500 V DC insulation resistance tester
GroundingClass D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly.
Working atmosphereFree from corrosive or flammable gas and excessive conductive dusts
Working altitude2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.

FX3U-4HSX-ADP: frequently asked questions

When can FX3U-4HSX-ADP be shipped?

FX3U-4HSX-ADP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX3U-4HSX-ADP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX3U-4HSX-ADP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX3U-4HSX-ADP, subject to availability and destination.
